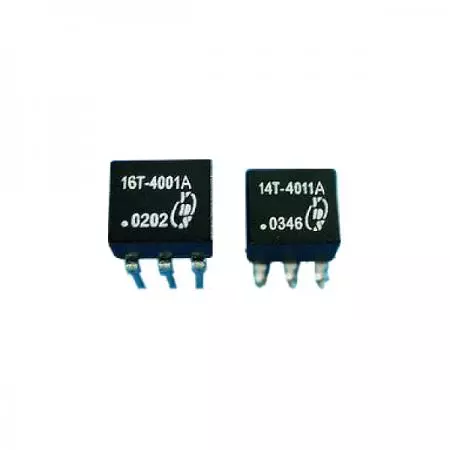

RF electronic Transformer, Surface Mount and Through Hole Package For Internet equipment and AC main power supply system
SMD/through-hole RF transformers. The IR reflow temperature peak rating is 235°C. 14T & 16T series have excellent insertion loss and return loss. Various impedance ratios are available. These product has passed UL 60950-1 certification.
As a supplier of General Purpose Transformer and Pulse Transformer, we provide Ethernet Isolation Transformer and Ethernet Coupling Transformer for industrial, power, telecom/datacom, and network equipment. Our SMD/DIP LAN Transformer solutions feature low leakage inductance and are UL 60950-1 Certified Transformer.
Yuan Dean can provide a variety of transformers, such as 6PIN DIL/DIP/SMD/14PIN DIP/SOIC and other packaging methods. All products are RoHS compliant, and can accept product customization.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Pri Inductance (uH MIN) | Turns Ratio | Bandwidth* (-3dB,MHz) | Schematic | Primary Pins |
|---|---|---|---|---|---|
| 14T-4011ANL | 110 | 1:1 | .15-400 | A | 4-6 |
| 14T-2012BNL | 200 | 1:1CT | .30-200 | B | 4-6 |
| 14T-3513BNL | 80 | 1:2CT | .20-350 | B | 4-6 |

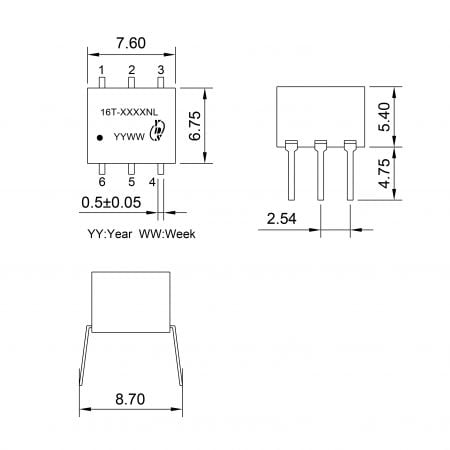

| 16T-3513BNL | 80 | 1:2CT | .20-350 | B | 4-6 |
*Bandwidth is referenced to midband loss.
