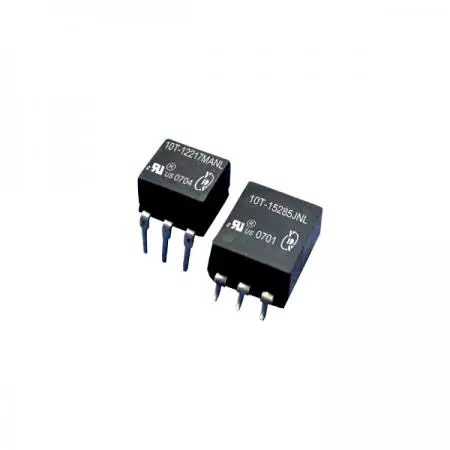

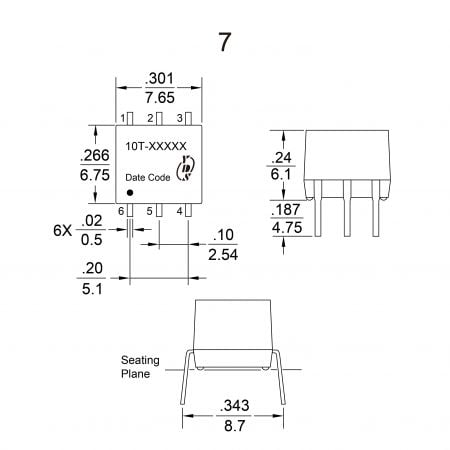

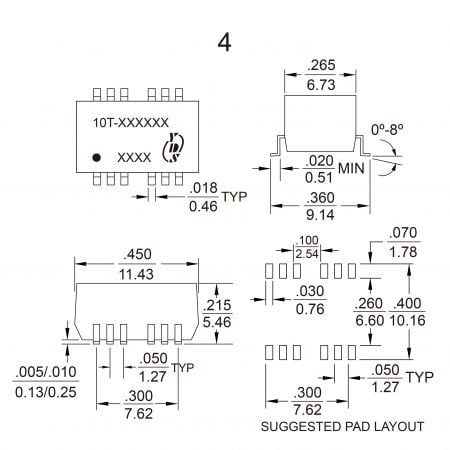

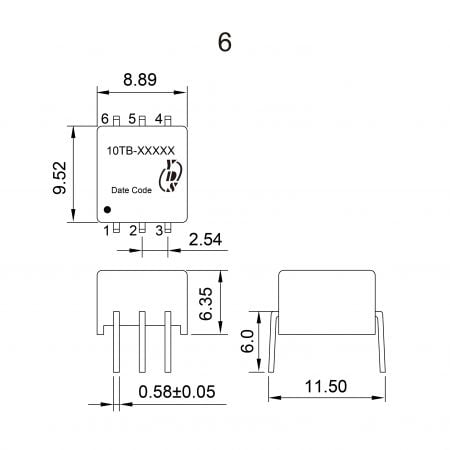

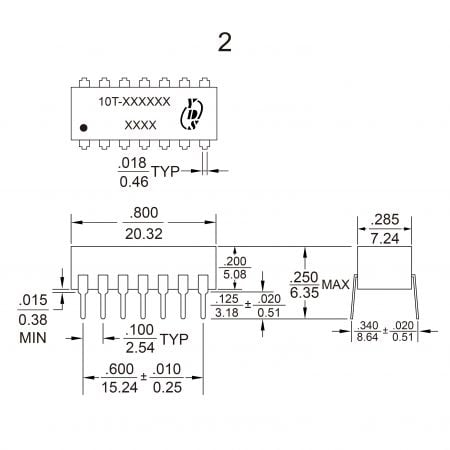

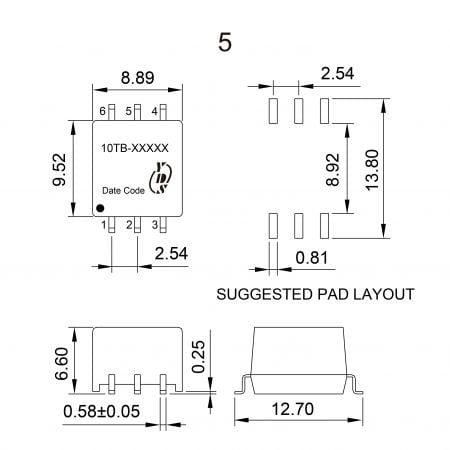

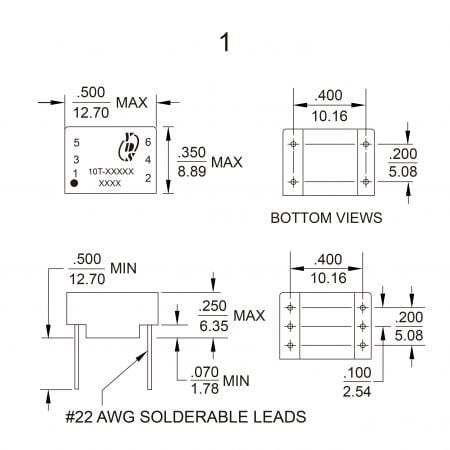

Digital Signal Transformer 500mW For General Purpose applications
500mW pulse general purpose transformer with inductance value of 100KHz/20mV. The leakage inductance of 10T series is 100KHz/0.2V, and the interwinding Capacitance is 100KHz/0.2V. This product has passed UL 60950-1 certification.
UL 60950-1 Certified and custom OEM/ODM transformers with low leakage inductance. We provide miniature, coupling, and through-hole/SOIC pulse transformers for industrial control, networking, telecom, electronic instruments, and power systems.
Yuan Dean can provide a variety of transformers, such as 6PIN DIL/DIP/SMD/14PIN DIP/SOIC and other packaging methods. All products are RoHS compliant, and can accept product customization.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | TURNS RATIO (±5%) | PRIMARY SINE WAVE OCL (mH MIN) | PRIMARY ET-CONSTANT (V-μsec) min | RISE TIME (nsec) max | PRI/SEC Cww (pF MAX) | LEAKAGE INDUCTANCE PRI/SEC (μH MAX) |
|---|---|---|---|---|---|---|
| 10T-50211ANL | 1:1:1 | 5.0 | 25.0 | 10.5 | 70 | 1.3 |
| 10T-20211ANL | 1:1:1 | 2.0 | 16.0 | 8.2 | 37 | 0.8 |
| 10T-85012DNL | 1:1:1 dual | .085 | 2.5 | 3.0 | 9.5 | 0.2 |
| 10T-50221ANL | 1:1:1 | 5.0 | 25.0 | 10.5 | 60 | 1.3 |
| 10T-20221ANL | 1:1:1 | 2.0 | 16.0 | 11.0 | 19 | 1.8 |
| Part Number | DCR PRIMARY (Ω MAX) | DCR SECONDARY (Ω MAX) | DCR TERTIARY (Ω MAX) | HI POT Vrms |
|---|---|---|---|---|
| 10T-50211ANL | 3.9 | 3.9 | 3.9 | 500 |
| 10T-20211ANL | 2.5 | 2.5 | 2.5 | 500 |
| 10T-85012DNL | 0.20 | - | - | 500 |
| 10T-50221ANL | 3.9 | 3.9 | 3.9 | 500 |
| 10T-20221ANL | 2.5 | 1.4 | 1.4 | 500 |
