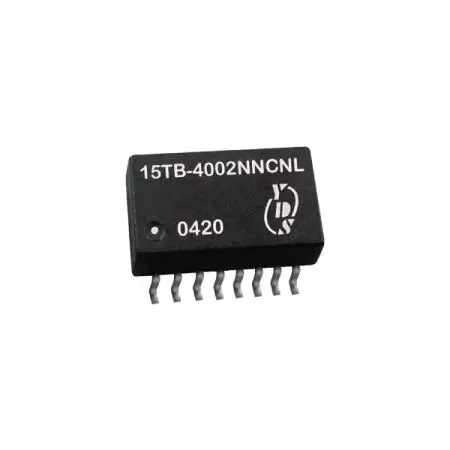

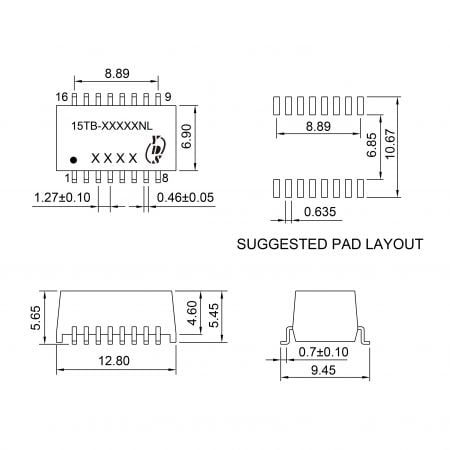

Dual SMD16 T3/DS3/STS-1 Interface Transformer, 1.5KVrms isolated For industrial control and telecom equipment
Telecom transformer has dual SMT package contains both transmit and receive transformers. Models matched to leading transceiver Ics. Return loss of 15TB-Dual Series meets requirements of G.703. Operating temperature is -40°C to +85°C. This series is recognized by UL 60950-1.
This series offers high reliability SMD telecom transformers in a dual-circuit configuration. These PCB mount, wideband telecom line transformers are RoHS/REACH compliant and ideal for central office switching, industrial grade telecom magnetics, networking, and computer equipment.
Yuan Dean can provide high efficiency production solutions and customized products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Turns Ratio (± 2%) | OCL Primary (mH min.) | LL (uH max) | Cw/w (pF max) | HI POT Vrms | Package/ Schematic | Primary Pins | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TX | RX | TX | RX | TX | RX | TX | RX | TX | RX | |||
| 15TB-4002NNCNL | 1:2CT | 1:1 | 40 | 100 | .120 | .120 | 10 | 10 | 1500 | N/N | 16-14 | 6-8 |
| 15TB-4003NPCNL | 1:2CT | 1:2CT | 40 | 40 | .100 | .100 | 10 | 10 | 1500 | N/P | 16-14 | 11-9 |
| 15TB-4003NGCNL | 1:1 | 1:1 | 40 | 40 | .110 | .110 | 10 | 10 | 1500 | N/G | 1-2 | 7-8 |
| 15TB-1014NOCNL | 1CT:1CT | 1:1 | 100 | 100 | .120 | .120 | 10 | 10 | 1500 | N/O | 6-8 | 16-15 |
| 15TB-1012NICNL | 1:2CT | 1:1 | 100 | 100 | .120 | .120 | 10 | 10 | 1500 | N/I | 7-8 | 16-15 |
