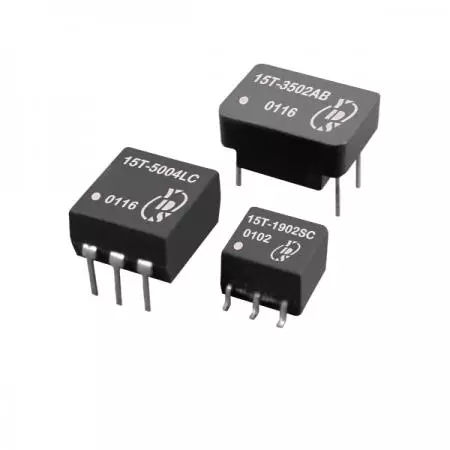

Telecom Transformer, Through Hole and Surface Mount Packages For industrial control and telecom equipment
T3/DS3/STS-1 interface telecom transformer has fast rise time compatible with standards. There are through hole and surface mount packages to choose from. Models with 1500Vrms isolation and 3000Vrms reinforced insulation per BABT EN41003/EN60950.
15T Series is recognized by UL 60950-1.
High-performance T3/DS3/E3/STS-1 transformers for high-speed telecommunication magnetics. Our compact SMD/DIL LIU transformers offer high isolation and wideband performance. These RoHS/REACH compliant, high reliability telecom components are ideal for industrial networking magnetics, computers, and data communications.
Yuan Dean can provide high efficiency production solutions and customized products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Turns Ratio (± 2%) | OCL Primary (mH min.) | OCL AT -40°C (mH min.) | LL (uH max) | Cw/w (pF max) | Isolation Voltage (Vrms min) | Package Schematic | Primary Pins |
|---|---|---|---|---|---|---|---|---|
| 15T-1011XENL | 1:1 | 100 | 40 | 0.110 | 10 | 1500 | X/E SMT | 1-3 |
| 15T-4002XCNL | 1:2CT | 40 | 19 | 0.110 | 12 | 1500 | X/C SMT | 4-6 |
| 15T-1011SENL | 1:1 | 100 | 40 | 0.110 | 10 | 1500 | S/E SMT | 4-6 |
| 15T-4002SCNL | 1:2CT | 40 | 19 | 0.110 | 12 | 1500 | S/C SMT | 4-6 |
| 15T-4003XFNL | 1CT:1CT | 40 | 19 | 0.100 | 10 | 1500 | X/F SMT | 1-5 |
| 15T-4004XCNL | 1:1.155CT | 40 | 20 | 0.150 | 12 | 1500 | X/C SMT | 4-6 |
