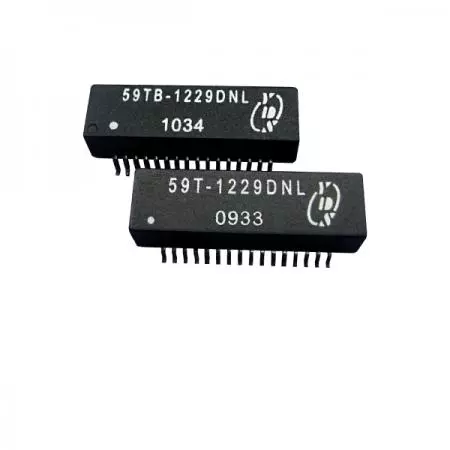

SMD32 Quad Ports T1/CEPT/ISDN-PRI Interface Transformer With 1500Vrms High Isolation

5 0 Reviews

SMD32 Quad Ports T1/CEPT/ISDN-PRI Interface Transformer with 1500Vrms High Isolation

59T/59TB Series

4-Port T1/CEPT/ISDN-PRI Magnetic Module | 1.5KV Isolated | 32-Pin SMD Surface Mount | Transceiver Line Interface For industrial control and Internet equipment

CEPT interface surface Mount telecom transformer. 59T & 59TB series match Et to leading quad and dual T1/E1/CEPT transceivers. Quad transformers in a surface mount package supports two T1/E1 ports. These products are available in transmit And/Or receive configurations. Both series have been recognized by UL 1950.

Elevate your networking devices and industrial control systems with our High Density T1/E1 Magnetic Module, designed for maximum space efficiency. As a professional telecom transformer manufacturer, we provide the Dual Port T1/E1 Telecom Transformer Module and Quad Magnetic Module for T1/E1, featuring Surface Mount T1/E1 Isolation Module technology. Each T1/E1/CEPT/ISDN-PRI Transformer functions as a reliable Telecom Line Interface Unit (LIU) Transformer, certified as a UL 1950 Certified Telecom Transformer. Whether you need SMD T1/E1 Isolation Transformer solutions, RoHS Compliant T1/E1 Magnetics, or Custom T1/E1 Magnetic Modules, our Telecom Isolation Transformer for ISDN-PRI ensures stable performance for modern computer equipment and telecommunications.

Yuan Dean can provide high efficiency production solutions and customized products.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

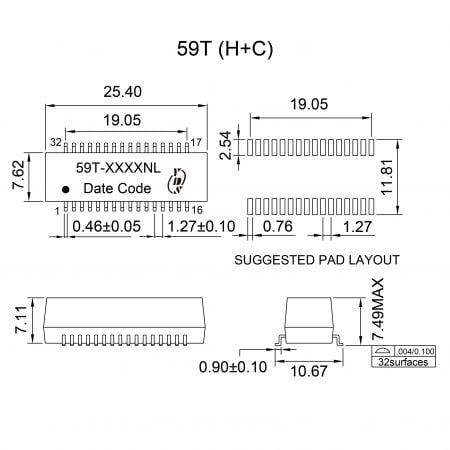

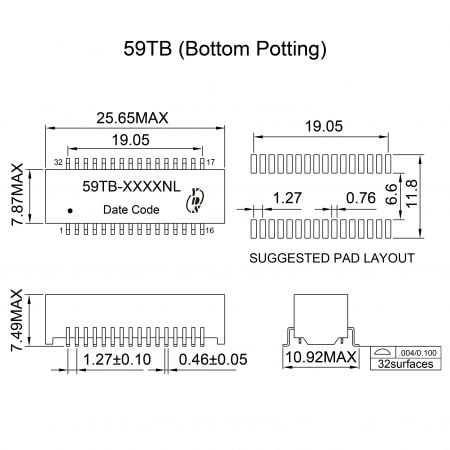

T1/CEPT/ISDN-PRI Interface 1.5KVrms Isolation Surface Mount Transformer(59T/59TB Series) | surface mount telecom transformer | quad port telecom transformer

Features

Quad transformers in a surface mount package supports two T1/E1 ports.
Available in transmit And/Or receive configurations.
Models match Et to leading quad and dual T1/E1/CEPT transceivers.
Isolation voltage:1500vrms.
Recognized by UL 1950.

Applications

computer equipment.
Internet equipment.
industrial control.
telecom equipment.

Test Conditions

Inductance------------------10KHz/20mV.
Leakage Inductance -------100KHz/1V.
Interwinding Capacitance -100KHz/1V.

Electrical Specifications@25°C; Operating Temperature 0°C to 70°C

Part Number	Turns Ratio (± 5%)	OCL @25°C (mH min.)	LL (uH MAX)	Cww (pF MAX)	DCR Pri (Ω Max)	DCR Sec (Ω Max)	Primary Pins
59T(B)-1221ANL	1:1.36/1	1.2	0.40	30	0.7	1.0	1-3,5-7,10-12,14-16
59T(B)-1222ANL	1:1.58/1.266	1.2	0.50	24	0.6	0.8	1-3,5-7,10-12,14-16
59T(B)-1223ANL	1:2CT	1.2	0.35	30	0.6	1.0	1-3,5-7,10-12,14-16
59T(B)-1224ANL	1:1.15CT	1.2	0.70	23	0.6	0.8	1-3,5-7,10-12,14-16
59T(B)-1221BNL	1:1.36/1:2	1.2	0.80	35	0.6	1.0	1-3,10-12,19-17,28-26
59T(B)-1225ANL	1:1.265/1	1.2	0.80	35	0.6	0.8	1-3,5-7,10-12,14-16
59T(B)-1226ANL	1:1.36CT	1.2	0.50	30	0.6	0.8	1-3,5-7,10-12,14-16
59T(B)-1227ANL	1:2/1.15	1.2	0.40	30	0.6	1.0	1-3,5-7,10-12,14-16
59T(B)-1221CNL	1:2.3/2	1.2	0.80	35	0.6	1.1	1-3,28-26,10-12,19-17
59T(B)-1228ANL	1:1.414CT	1.2	0.80	30	1.0	1.2	1-3,5-7,10-12,14-16
