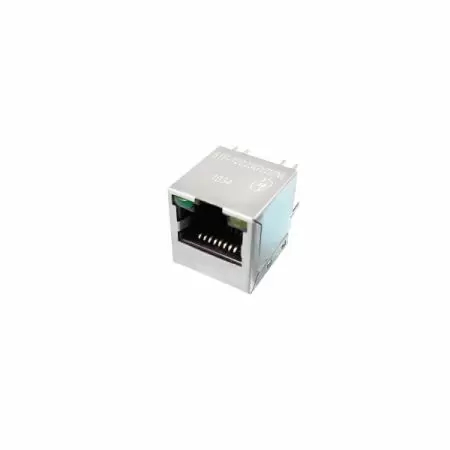

180° Top Entry Magnetic Jack | 10/100Base-T | Single Port Tab-Up | 1.5KV Isolated For Telecom、HUB、Wireless router station and VoIP device equipment
180º single port 10/100 Base-T RJ45 jack with magnetics. Magnetic designs to support every PHY. Meet or exceed IEEE 802.3 and ANSI X3.263 standards including 350uH min OCL with 8mA bias. Minimum 1500Vrms isolation per IEEE 802.3 requirement.
As a professional telecom transformer manufacturer, we provide the 51F Series featuring a high-performance vertical RJ45 jack with integrated magnetics RJ45 connector. This top entry RJ45 connector, also known as a vertical magjack, is an ideal OEM RJ45 magjack for space-constrained designs. Our RJ45 connector with magnetics range includes the magnetic RJ45 jack and vertical RJ45 with magnetics options, ensuring superior LAN magnetics RJ45 performance. Whether you need a top mount RJ45 connector, ethernet RJ45 connector with magnetics, or an RJ45 ICM connector with RJ45 jack with LED indicators, our solutions provide reliable connectivity for telecommunications, HUBs, wireless networks, VoIP, and IP cameras.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

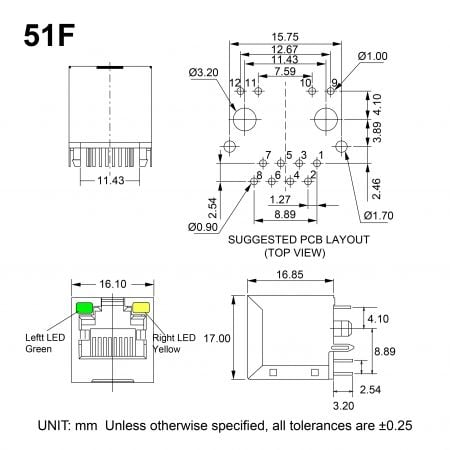

| Quantity: | |
|---|---|
| Part Number | Turns Ratio ± 5% | LEDs (L/R) | Insertion Loss (dB MAX) | Return Loss (dB MIN @100Ω± 15Ω) | ||||
|---|---|---|---|---|---|---|---|---|
| TX | RX | 0.3-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | ||
| 51F-1202GYD2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.0 | -18 | -16 | -12 | -10 |
| Part Number | Cross Talk (dB MIN) | Common Mode Rejection (dB MIN) | Hipot (Vrms) | ||||
|---|---|---|---|---|---|---|---|
| 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 51F-1202GYD2NL | -40 | -35 | -30 | -30 | -20 | -20 | 1500 |
