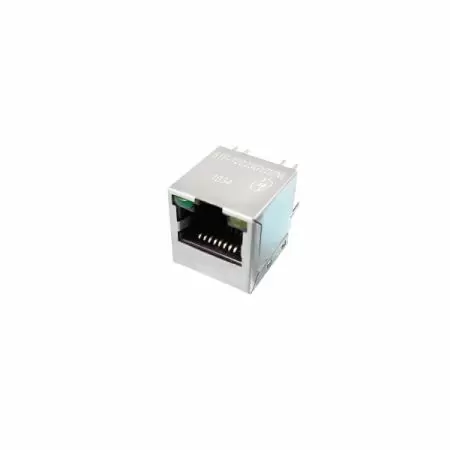

180 Degree Top Entry 1000Base-T Magnetic Jack | Single Port | 1.5KV Isolated For Telecom、HUB、Wireless router station and VoIP device equipment

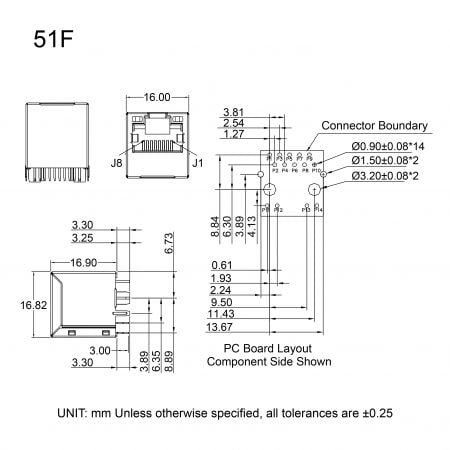

Single port 1000 Base-T 180º RJ45 jack with magnetics. Magnetic designs to support every PHY. Meet or exceed IEEE 802.3 and ANSI X3.263 standards including 350uH min OCL with 8mA bias. Minimum 1500Vrms isolation per IEEE 802.3 requirement.
As a professional telecom transformer manufacturer, we provide the 51F-1G Series featuring a high-performance vertical RJ45 jack with magnetics and shielded RJ45 magjack. This upright RJ45 connector, also known as a vertical LAN connector, is an ideal OEM RJ45 magjack for space-saving layouts. Our RJ45 LAN connector with magnetics range includes the fast ethernet magjack and RJ45 LAN transformer connector options, ensuring superior ethernet communication connector performance. Whether you need an RJ45 jack with LED indicators or are looking for a reliable RJ45 magjack manufacturer, our solutions provide stable connectivity for telecommunications, HUBs, wireless networks, VoIP, and IP cameras.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Turns Ratio ± 3% | LEDs (L/R) | Insertion Loss (dB MAX) | Return Loss (dB MIN @100Ω± 15Ω) | |||
|---|---|---|---|---|---|---|---|
| TX | RX | 0.1-100 MHz | 0.1-30 MHz | 30-60 MHz | 60-100 MHz | ||
| 51F-1305GYD2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.0 | -18 | -16 | -10 |
| Part Number | Cross Talk (dB MIN) | CDMR (dB MIN) | DCMR (dB MIN) | Hipot (VDC) | ||
|---|---|---|---|---|---|---|
| 0.1-30 MHz | 30-60 MHz | 60-100 MHz | 0.1-100 MHz | 0.1-100 MHz | ||
| 51F-1305GYD2NL | -40 | -35 | -30 | -30 | -30 | 1500 |
| Part Number | Turns Ratio ± 2% | LEDs (L/R) | Insertion Loss (dB TYP) | Return Loss (dB TYP @100Ω± 15Ω) | |||
|---|---|---|---|---|---|---|---|
| TX | RX | 0.3-100 MHz | 1-10 MHz | 30 MHz | 60-80 MHz | ||
| 51F-13101GYDZ2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.2 | -18 | -16 | -12 |
| Part Number | Cross Talk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (Vrms) | |||
|---|---|---|---|---|---|---|
| 1-10 MHz | 30-60 MHz | 60-100 MHz | 1-50 MHz | 50-130 MHz | ||
| 51F-13101GYDZ2NL | -30 | -30 | -30 | -30 | -20 | 1500 |
