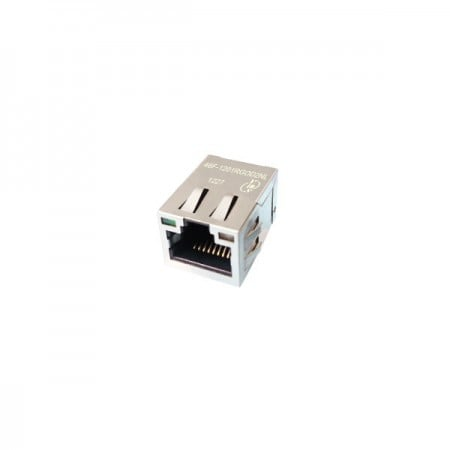

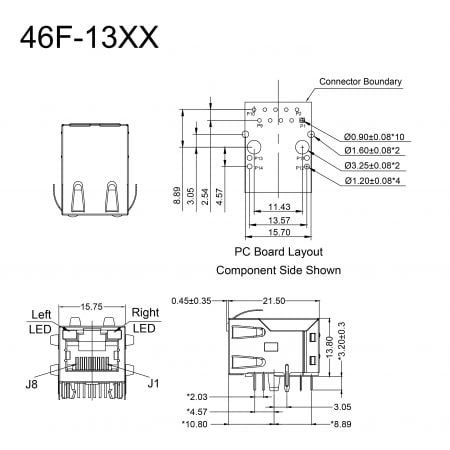

1G Base-T Magnetic Connector | 2250 VDC Isolation | TAB UP | Single Port Through-Hole RJ45 For Telecom equipment、HUB、Wireless router station
This single-port 10/100/1000 Base-T RJ45 jack features integrated magnetics, providing a minimum 2250VDC isolation and 350μH OCL with 8mA bias current for reliable performance. The 46F series has passed UL 60950-1 safety certification, making it suitable for various networking applications.
As a professional provider, we offer high-quality Magnetic RJ45 Connector and MagJack solutions. Our product range includes RJ45 Modular Jack with Filter, 8P8C Magnetic Jack, and RJ45 Magnetic Module. We also provide Gigabit RJ45 Connector with Magnetics, Single Port Gigabit MagJack, and Integrated Gigabit Ethernet Connector. These RJ45 Jack with Integrated Filter and Gigabit RJ45 with LED components are UL 60950-1 Certified RJ45 Jack. We also offer Custom Gigabit RJ45 Connector designs, ideal for telecom equipment, HUBs, wireless networks, VoIP equipment, and cameras.
All Yuan Dean RJ45 connector products are RoHS-compliant, customizable, and support OEM/ODM projects. We look forward to working with you.

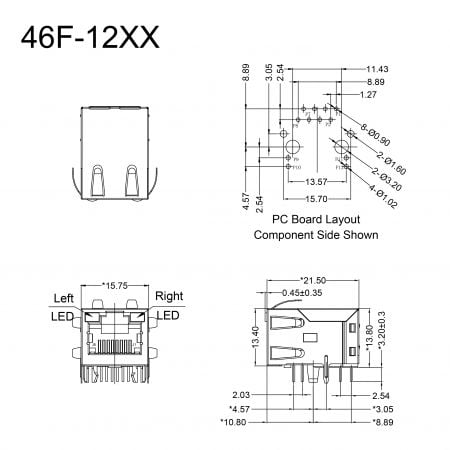

| Quantity: | |
|---|---|
| Part Number | Turns Ratio | Insertion Loss (dB max) | Return Loss (dB min @100Ω ± 15Ω) | ||||
|---|---|---|---|---|---|---|---|
| TX | RX | 0.3-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-100 MHz | |
| 46F-1302GYD2NL | 1CT: 1CT | 1CT: 1CT | -1.2 | -16 | -13.5 | -11.5 | -10 |
| 46F-1207YGD2NL | 1CT: 1CT | 1CT: 1CT | -1.2 | -14 | -14 | -14 | -10 |
| Part Number | Differential to Common Mode Rejection (dB MIN) | Cross Talk (dB MIN) | Hipot (VDC) | ||||
|---|---|---|---|---|---|---|---|
| 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 46F-1302GYD2NL | -35 | -32 | -30 | -40 | -36 | -30 | 2250 |
| 46F-1207YGD2NL | -35 | -32 | -30 | -40 | -36 | -30 | 2250 |
