10/100 Base-T Single Port RJ45 Jack With Magnetics

5 0 Reviews

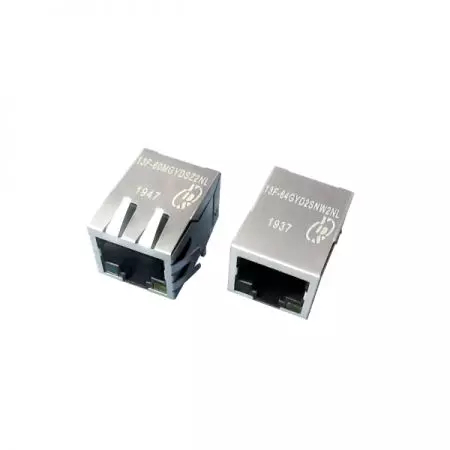

10/100 Base-T Single Port RJ45 Jack with Magnetics

13F-6X Series

RJ45 Connector With 10/100 Base-T Magnetics For HUB and Telecom equipment

The 13F-6X series is a single-port 10/100 Base-T RJ45 connector with integrated filter, designed in a Tab down configuration. This magnetic RJ45 connector supports every PHY and meets the IEEE 802.3 requirements with a minimum 2250VDC isolation. The compact size matches standard RJ45 modular jacks, helping to save PCB space. It complies with IEEE 802.3 and ANSI X3.263 standards, including 350uH min OCL with 8mA bias current. The RJ45 connector also meets UL 60950-1 safety certification.

High-quality RJ45 Magnetic Module and 10/100 Base-T RJ45 Connector for VOIP, wireless networking, telecom/datacom, and HUBs. As a leading provider, we offer Industrial Grade RJ45, Magnetic RJ45 Connector, and Ethernet Connector with Transformer solutions, including integrated MagJack designs for superior performance.

Yuan Dean’s RJ45 connector products are RoHS-compliant and customizable for your application needs.

OEM/ODM requirements are welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

Single Port 10/100 Base-T RJ45 Jack with Magnetics(13F-6X Series) | Magnetic RJ45 Connector | RJ45 Modular Jack with Filter

Features

Magnetic designs to support every PHY.
Meet or exceed IEEE 802.3 and ANSI X3.263 standards.
including 350uH min OCL with 8mA bias.
Minimum 2250VDC isolation per IEEE 802.3 requirement.
Designed for 100 base transmission over UTP-5 cable.
Size same as RJ-45 modular jack to save PCB board Space.
Recognized by UL 60950-1.

Applications

Telecom equipment.
HUB.
Wireless router station.
VoIP device.
Video camera.

Electrical Specifications@25°C; Operating Temperature 0°C to 70°C

Part Number	Turns Ratio ± 5%		EMI Fingers	LED (L/R)	Insertion Loss (dB max)	Return Loss (dB min @100Ω ± 15Ω)
Part Number	TX	RX	EMI Fingers	LED (L/R)	0.3-100 MHz	1-30 MHz	40 MHz	50 MHz	60-80 MHz

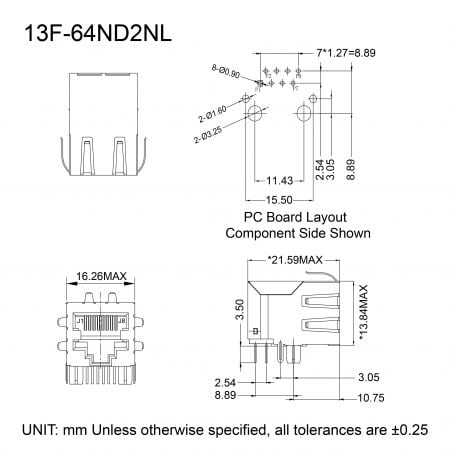

13F-64ND2NL	1CT: 1CT	1CT: 1CT	YES	N/A	-1	-18	-16	-12	-10

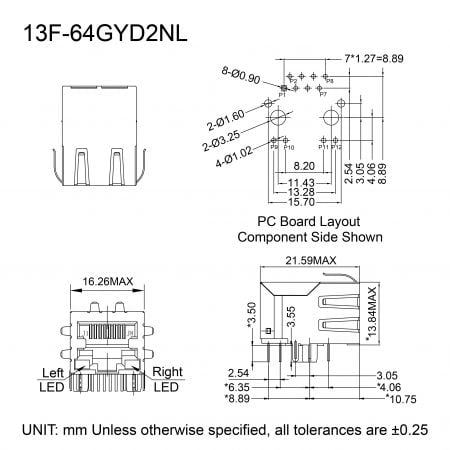

13F-64GYD2NL	1CT: 1CT	1CT: 1CT	YES	G/Y	-1	-18	-16	-12	-10

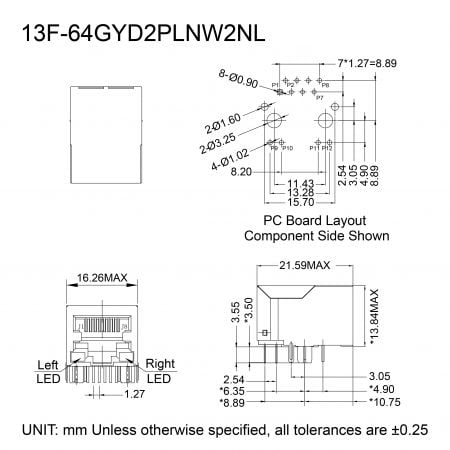

13F-64GYD2PLNW2NL	1CT: 1CT	1CT: 1CT	N/A	G/Y	-1	-18	-16	-12	-10

Part Number	Crosstalk (dB min)			Common Mode Rejection (dB min)			Hipot (VDC)
Part Number	30 MHz	60 MHz	100 MHz	30 MHz	60 MHz	100 MHz	Hipot (VDC)
13F-64ND2NL	-40	-35	-30	-30	-20	-20	2250
13F-64GYD2NL	-40	-35	-30	-30	-20	-20	2250
13F-64GYD2PLNW2NL	-40	-35	-30	-30	-20	-20	2250
