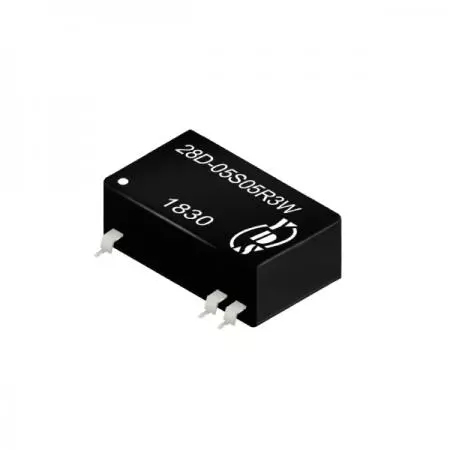

3W SMD16 2:1 Regulated Single/Dual Output DC to DC Converter For Industry and Telecom/Datacom equipment
3W 2:1 wide input voltage range DC-to-DC power converter with1.5KV isolation voltage. It is available in a 16PIN SMD package. 28D-3W series is a regulated output type conversion. The efficiency can reach 87%. The operating temperature is from -40°C to +85°C. It has internal SMD construction and industry standard pins. No external components required.
Our company provides professional DC-DC Converter OEM/ODM Service with the 28D-3W series, an Industrial Grade Board mount DC-DC converter. As an Automated Assembly Power Component, this SMD DC to DC converter and Isolated SMD DC to DC Converter features a Wide Input DC to DC Converter range, a Regulated DC to DC Power Module, and a Short Circuit Protection DC-DC Module. It is a RoHS & REACH Compliant DC-DC Converter perfect for industrial equipment, electronic instruments, wireless networks, telecom/datacom, and measurement technology.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage Range Vdc | Output Voltage Vdc | Output Current mA | Efficiency %TYP |
|---|---|---|---|---|
| 28D-05S03R3W | 4.5-9 | 3.3 | 700 | 70 |
| 28D-05S05R3W | 4.5-9 | 5 | 600 | 75 |
| 28D-05S12R3W | 4.5-9 | 12 | 250 | 77 |
| 28D-05S15R3W | 4.5-9 | 15 | 200 | 75 |
| 28D-05S24R3W | 4.5-9 | 24 | 125 | 75 |
| 28D-05D05R3W | 4.5-9 | ±5 | ±300 | 72 |
| 28D-05D12R3W | 4.5-9 | ±12 | ±125 | 74 |
| 28D-05D15R3W | 4.5-9 | ±15 | ±100 | 75 |
| 28D-05D24R3W | 4.5-9 | ±24 | ±62 | 78 |
| 28D-12S03R3W | 9-18 | 3.3 | 700 | 75 |
| 28D-12S05R3W | 9-18 | 5 | 600 | 79 |
| 28D-12S12R3W | 9-18 | 12 | 250 | 82 |
| 28D-12S15R3W | 9-18 | 15 | 200 | 82 |
| 28D-12S24R3W | 9-18 | 24 | 125 | 80 |
| 28D-12D05R3W | 9-18 | ±5 | ±300 | 72 |
| 28D-12D12R3W | 9-18 | ±12 | ±125 | 82 |
| 28D-12D15R3W | 9-18 | ±15 | ±100 | 80 |
| 28D-12D24R3W | 9-18 | ±24 | ±62 | 80 |
| 28D-24S03R3W | 18-36 | 3.3 | 700 | 75 |
| 28D-24S05R3W | 18-36 | 5 | 600 | 80 |
| 28D-24S12R3W | 18-36 | 12 | 250 | 86 |
| 28D-24S15R3W | 18-36 | 15 | 200 | 87 |
| 28D-24S24R3W | 18-36 | 24 | 125 | 85 |
| 28D-24D05R3W | 18-36 | ±5 | ±300 | 78 |
| 28D-24D12R3W | 18-36 | ±12 | ±125 | 82 |
| 28D-24D15R3W | 18-36 | ±15 | ±100 | 84 |
| 28D-24D24R3W | 18-36 | ±24 | ±62 | 85 |
| 28D-48S03R3W | 36-75 | 3.3 | 700 | 73 |
| 28D-48S05R3W | 36-75 | 5 | 600 | 78 |
| 28D-48S12R3W | 36-75 | 12 | 250 | 83 |
| 28D-48S15R3W | 36-75 | 15 | 200 | 83 |
| 28D-48S24R3W | 36-75 | 24 | 125 | 82 |
| 28D-48D05R3W | 36-75 | ±5 | ±300 | 78 |
| 28D-48D12R3W | 36-75 | ±12 | ±125 | 81 |
| 28D-48D15R3W | 36-75 | ±15 | ±100 | 82 |
| 28D-48D24R3W | 36-75 | ±24 | ±62 | 80 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | 2:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 2 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | BW = DC To 20MHz | 100 | mVp-p | ||
| Transient Response Setting Time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1000000 | Hours | ||
| Weight | 3.9 | g | |||

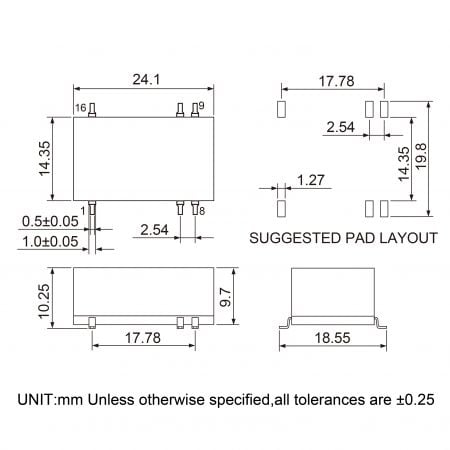

| Dimensions | 24.1 x 14.35 x 10.25 | mm | |||
