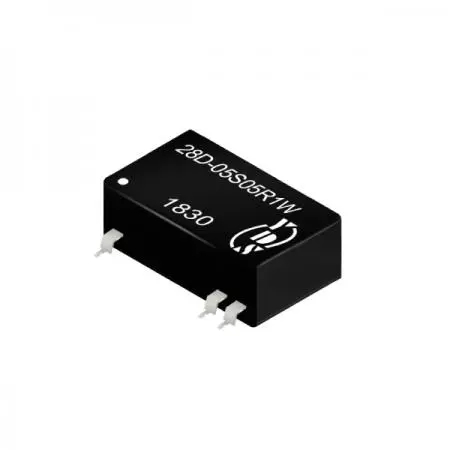

1W SMD16 Regulated Single/Dual Output DC to DC Converter, 2:1Wide Input Range Module For Industry and Telecom/Datacom equipment
The 28D-1W series features 1W SMD DC-DC converters with a 2:1 wide input voltage range and 1.5KV isolation voltage. Housed in a 16PIN SMD package, these SMD DC-DC converters offer regulated output, high efficiency up to 83%, and reliable performance in temperatures ranging from -40°C to +85°C. No external components are required, and the units follow an industry-standard pin layout.
Our company provides professional DC-DC Converter OEM/ODM Service with the 28D-1W series, an Industrial Grade Board mount DC-DC converter. As a High Efficiency 1W DC-DC solution, this SMD DC to DC converter and Isolated SMD Power Converter are designed as an Automated Assembly Power Component. It features a Wide Input DC-DC Converter range, operates as a Regulated DC-DC Power Module, and includes a Short Circuit Protection DC-DC Module. It is perfect for industrial equipment, electronic instruments, wireless networks, telecom/datacom, and measurement technology.
Yuan Dean's SMD DC-DC converters are RoHS-compliant, customizable, and backed by a 3-year warranty. OEM/ODM requirements are welcome. We look forward to cooperating with you!

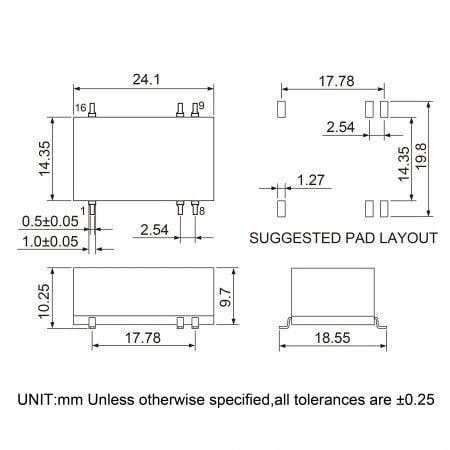

| Quantity: | |
|---|---|
| Part Number | Input Voltage Range | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | % TYP | |
| 28D-05S03R1W | 4.5-9 | 3.3 | 303 | 68 |
| 28D-05S05R1W | 4.5-9 | 5 | 200 | 71 |
| 28D-05S12R1W | 4.5-9 | 12 | 84 | 73 |
| 28D-05S15R1W | 4.5-9 | 15 | 67 | 71 |
| 28D-05D05R1W | 4.5-9 | ± 5 | ± 100 | 68 |
| 28D-05D12R1W | 4.5-9 | ± 12 | ± 42 | 70 |
| 28D-05D15R1W | 4.5-9 | ± 15 | ± 34 | 71 |
| 28D-12S03R1W | 9-18 | 3.3 | 303 | 71 |
| 28D-12S05R1W | 9-18 | 5 | 200 | 75 |
| 28D-12S12R1W | 9-18 | 12 | 84 | 78 |
| 28D-12S15R1W | 9-18 | 15 | 67 | 78 |
| 28D-12D05R1W | 9-18 | ± 5 | ± 100 | 71 |
| 28D-12D12R1W | 9-18 | ± 12 | ± 42 | 78 |
| 28D-12D15R1W | 9-18 | ± 15 | ± 34 | 76 |
| 28D-24S03R1W | 18-36 | 3.3 | 303 | 71 |
| 28D-24S05R1W | 18-36 | 5 | 200 | 78 |
| 28D-24S12R1W | 18-36 | 12 | 84 | 82 |
| 28D-24S15R1W | 18-36 | 15 | 67 | 83 |
| 28D-24D05R1W | 18-36 | ± 5 | ± 100 | 74 |
| 28D-24D12R1W | 18-36 | ± 12 | ± 42 | 78 |
| 28D-24D15R1W | 18-36 | ± 15 | ± 34 | 80 |
| 28D-48S03R1W | 36-75 | 3.3 | 303 | 70 |
| 28D-48S05R1W | 36-75 | 5 | 200 | 74 |
| 28D-48S12R1W | 36-75 | 12 | 84 | 80 |
| 28D-48S15R1W | 36-75 | 15 | 67 | 80 |
| 28D-48D05R1W | 36-75 | ± 5 | ± 100 | 74 |
| 28D-48D12R1W | 36-75 | ± 12 | ± 42 | 77 |
| 28D-48D15R1W | 36-75 | ± 15 | ± 34 | 78 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | 2:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 2 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | BW = DC To 20MHz | 100 | mVp-p | ||
| Transient Response Setting Time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1000000 | Hours | ||
| Weight | 3.9 | g | |||
| Dimensions | 24.1 x 14.35 x 10.25 | mm | |||
