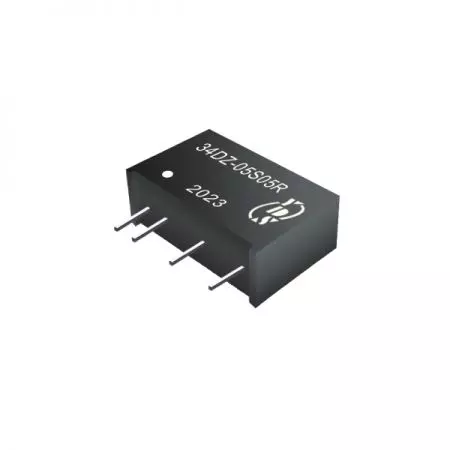

1W SIP6 Single/Dual Regulated Output DC-DC Converter For Industry and Telecom/Datacom equipment
2:1 wide input voltage 1 watt SIP-6 package DC to DC power converter. 34DZ series is a regulated output power conversion. The efficiency can reach 81%. The operating environment temperatures range is from -40°C to +85°C. It has industry standard pins and internal SMD construction.
Our Industrial Grade Wide Input DC-DC Converter offers a Cost-effective DC-DC converter solution for Board mount DC-DC converter needs. This Isolated DC-DC Converter and Regulated DC-DC Converter features Short Circuit Protection DC-DC Module and is RoHS & REACH Compliant DC-DC Converter. We also provide Custom DC-DC converter design for industrial equipment, sensing devices, electronic instruments, wireless networks, telecom/datacom, measurement technology, and aviation applications.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency | Capacitive Load |
|---|---|---|---|---|---|
| Vdc | Vdc | mA | %TYP | μF | |
| 34DZ-05S05R | 4.5-9 | 5 | 200 | 76 | 1680 |
| 34DZ-05S12R | 4.5-9 | 12 | 84 | 79 | 820 |
| 34DZ-05S15R | 4.5-9 | 15 | 67 | 80 | 680 |
| 34DZ-05S24R | 4.5-9 | 24 | 42 | 80 | 470 |
| 34DZ-12S05R | 9-18 | 5 | 200 | 78 | 1680 |
| 34DZ-12S12R | 9-18 | 12 | 84 | 80 | 820 |
| 34DZ-12S15R | 9-18 | 15 | 67 | 81 | 680 |
| 34DZ-12S24R | 9-18 | 24 | 42 | 80 | 470 |
| 34DZ-24S05R | 18-36 | 5 | 200 | 78 | 1680 |
| 34DZ-24S12R | 18-36 | 12 | 84 | 80 | 820 |
| 34DZ-24S15R | 18-36 | 15 | 67 | 80 | 680 |
| 34DZ-24S24R | 18-36 | 24 | 42 | 81 | 470 |
| 34DZ-48S05R | 36-75 | 5 | 200 | 76 | 1680 |
| 34DZ-48S12R | 36-75 | 12 | 84 | 78 | 820 |
| 34DZ-48S15R | 36-75 | 15 | 67 | 78 | 680 |
| 34DZ-48S24R | 36-75 | 24 | 42 | 77 | 470 |
| 34DZ-05D12R | 4.5-9 | ±12 | ±42 | 77 | ±470 |
| 34DZ-05D15R | 4.5-9 | ±15 | ±34 | 79 | ±330 |
| 34DZ-12D12R | 9-18 | ±12 | ±42 | 79 | ±470 |
| 34DZ-12D15R | 9-18 | ±15 | ±34 | 80 | ±330 |
| 34DZ-24D12R | 18-36 | ±12 | ±42 | 80 | ±470 |
| 34DZ-24D15R | 18-36 | ±15 | ±34 | 79 | ±330 |
| 34DZ-48D12R | 36-75 | ±12 | ±42 | 77 | ±470 |
| 34DZ-48D15R | 36-75 | ±15 | ±34 | 77 | ±330 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | 2:1 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 2 | % | ||
| Short Circuit Protection | Continuous with auto recovery | ||||
| Line Regulation | ± 0.2 | % | |||
| Load Regulation | Single 0% to 100% Load | ± 1.0 | % | ||
| Dual 0% to 100% Load | ± 2.0 | % | |||
| Dual 5% to 100% Load | ± 1.0 | % | |||
| Ripple & Noise | Single Output BW=DC To 20MHz | 100 | mVp-p | ||
| Dual Output BW=DC To 20MHz | 150 | mVp-p |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 200 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1500000 | Hours | ||
| Weight | 3.0 | g | |||

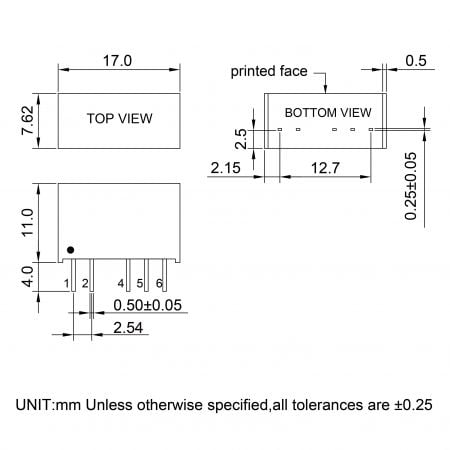

| Dimensions | 17.0X7.62X11.0 | mm | |||
