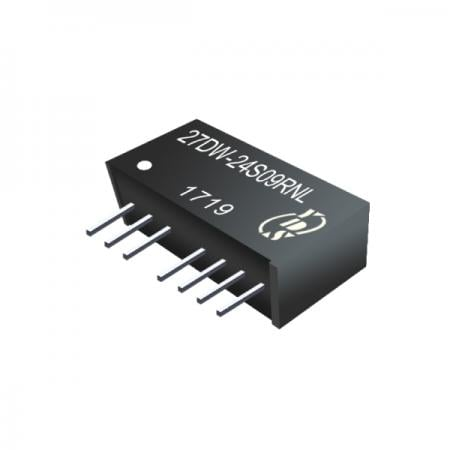

2W SIP8 Regulated Single Output 4:1 Wide Input Range DC to DC Converter For Industry and Measurement equipment
2W wide input 4:1 voltage range DC to DC power converter with 1KV&3KV isolation voltage. 27DW-Single is available in 8 pin SIP package. It is a regulated output power conversion. The efficiency is up to 80%. The operating ambient temperature is from -40°C to +85°C. This power converter has continuous short circuit protection with current foldback. It has industry standard pins and internal SMD construction.
Our company, a professional DC to DC Converter Manufacturer and DC to DC converter supplier, offers the 27DW-Single series with Custom DC-DC converter design services. This Cost-effective DC-DC converter is designed as a high-performance DC-DC Power Module and Switching regulator. It functions as an Isolated DC to DC Converter and includes a Short Circuit Protection DC to DC Module to ensure safety, while being RoHS & REACH Compliant Power. As a Board mount DC-DC converter and Customized SIP DC to DC Converter, it is perfect for industrial equipment, sensing devices, electronic instruments, wireless networks, telecom/datacom, measurement technology, and aviation applications.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage Range | Output Voltage Range | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | |
| 27DW-24S05RNL/3KV | 9-36 | 5 | 400 | 75 |
| 27DW-24S09RNL/3KV | 9-36 | 9 | 222 | 80 |
| 27DW-24S12RNL/3KV | 9-36 | 12 | 167 | 80 |
| 27DW-24S15RNL/3KV | 9-36 | 15 | 133 | 80 |
| 27DW-24S24RNL/3KV | 9-36 | 24 | 84 | 80 |
| 27DW-48S05RNL/3KV | 18-75 | 5 | 400 | 70 |
| 27DW-48S09RNL/3KV | 18-75 | 9 | 222 | 80 |
| 27DW-48S12RNL/3KV | 18-75 | 12 | 167 | 80 |
| 27DW-48S15RNL/3KV | 18-75 | 15 | 133 | 80 |
| 27DW-48S24RNL/3KV | 18-75 | 24 | 84 | 80 |
NOTE: No suffix is standard isolation (1KVDC) e.g, 27DW-24S05RNL ，*add suffix /3KV for 3KVDC isolation, e.g, 27DW-24S05R3KV
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo,Io Nom | 4:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 3 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | Output:5-9V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-24V Types BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1500000 | Hours | ||
| Weight | 4.5 | g | |||

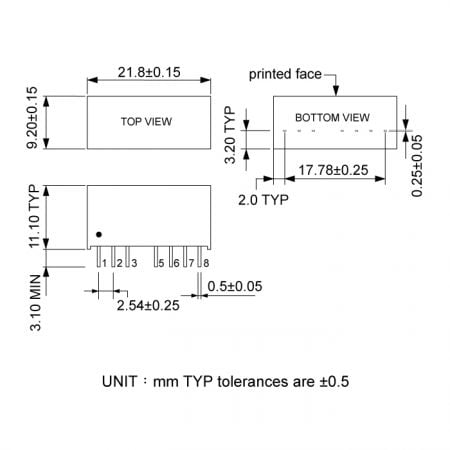

| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
