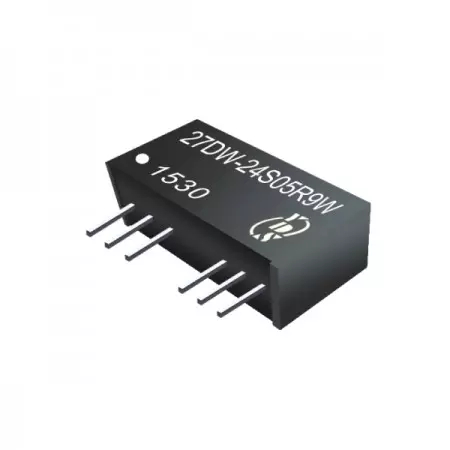

9W SIP8 Regulated Single/Dual Output DC to DC Converter For Industry and Measurement equipment
1.6KV isolation 9 watt wide input 4:1 voltage range DC to DC power converter. 27DW-9W series is available in an 8-pin SIP package. The efficiency is up to 89%. The operating environment temperature is from -40°C to +78.15°C. 27DW-9W series has passed EMI standard EN55032:2012+AC:2013 certification (Class B) and EMS standard EN55024 : 2010 certification.
Our company, a professional DC to DC Converter Manufacturer, offers the 27DW-9W series—an Economical DC to DC Converter designed as a Compact DC to DC converter. This Board mount isolated DC to DC converter features a Switching regulator and functions as a high-performance Isolated DC to DC Converter. It is a CE marked DC-DC converter that includes a Short Circuit Protection DC to DC Module to ensure safety, while being RoHS & REACH Compliant Power. As a high-quality Customized SIP DC to DC Converter, this Industrial power supply DC-DC is perfect for industrial equipment, sensing devices, electronic instruments, wireless networks, telecom/datacom, measurement technology, and aviation applications.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage Range | Input Current | Output Voltage Range | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | mA | %Typ | |
| 27DW-24S03R9W | 9-36 | 7 | 335 | 3.3 | 2000 | 82 |
| 27DW-24S05R9W | 9-36 | 7 | 392 | 5 | 1600 | 85 |
| 27DW-24S12R9W | 9-36 | 7 | 426 | 12 | 750 | 88 |
| 27DW-24S15R9W | 9-36 | 7 | 426 | 15 | 600 | 88 |
| 27DW-24S24R9W | 9-36 | 7 | 421 | 24 | 375 | 89 |
| 27DW-48S03R9W | 18-75 | 7 | 168 | 3.3 | 2000 | 82 |
| 27DW-48S05R9W | 18-75 | 7 | 196 | 5 | 1600 | 85 |
| 27DW-48S12R9W | 18-75 | 7 | 213 | 12 | 750 | 88 |
| 27DW-48S15R9W | 18-75 | 7 | 213 | 15 | 600 | 88 |
| 27DW-48S24R9W | 18-75 | 7 | 211 | 24 | 375 | 89 |
| 27DW-24D05R9W | 9-36 | 7 | 388 | ± 5 | ± 800 | 86 |
| 27DW-24D12R9W | 9-36 | 7 | 426 | ± 12 | ± 375 | 88 |
| 27DW-24D15R9W | 9-36 | 7 | 426 | ± 15 | ± 300 | 88 |
| 27DW-48D05R9W | 18-75 | 7 | 196 | ± 5 | ± 800 | 85 |
| 27DW-48D12R9W | 18-75 | 7 | 213 | ± 12 | ± 375 | 88 |
| 27DW-48D15R9W | 18-75 | 7 | 216 | ± 15 | ± 300 | 87 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo, Io Nom | 4:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 2 | % | ||
| Short Circuit Protection | Continuous, Auto-Recovery | ||||
| Line Regulation | -0.5 | +0.5 | % | ||
| Load Regulation | Single output models Dual output models (Balance Load) | -0.5 -1.0 | +0.5 +1.0 | % | |
| Ripple & Noise | Output:3-10V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Output>10V Types BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 250 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1600 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency (Full load, nominal input) | Single Dual | 400 500 | KHz | ||
| Operating Temperature | With derating | -40 | +78.15 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Temperature Coefficient | 100% Load | ±0.03 | %/°C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Plastic | ||||
| MTBF | MIL-HDBK-217F @25°C | 2.696x106 | Hours | ||
| Weight | 4.5 | g | |||

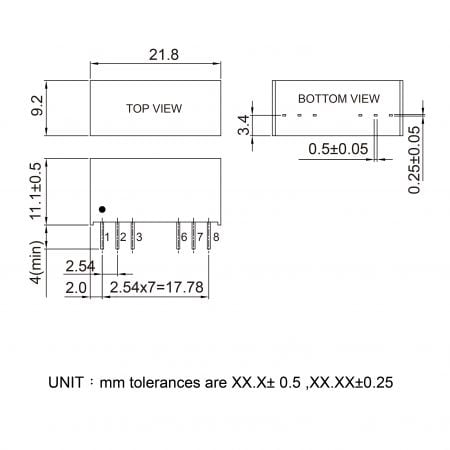

| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
