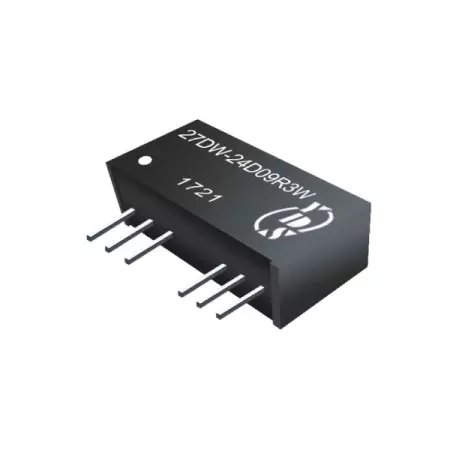

3W SIP8 Regulated Dual Output DC to DC Converter For Industry and Measurement equipment
Wide input 4:1 voltage range dual output 3 watt DC-to-DC power converter. It has 1.5KV and 3KV isolation. 27DW-3W-Dual series is a regulated output SIP-8 power conversion. The efficiency is up to 80%. The operating ambient temperature is from -40°C to +85°C. This power converter has continuous short circuit protection with current foldback. It has industry standard pins and internal SMD construction.
Our company, a professional DC to DC Converter Manufacturer, offers the 27DW-3W-Dual series—an Economical DC-DC Converter designed as a high-performance DC to DC Power Module. This Board mount isolated DC-DC converter features an Isolated DC-DC Converter range and operates as a Regulated DC to DC Converter. It includes a 1.5KVdc/3KVdc Isolated SIP Converter design and a Short Circuit Protection DC-DC Module to ensure safety, while being RoHS & REACH Compliant Power. As a high-quality Customized SIP DC-DC Converter, this Industrial power supply DC-DC is perfect for industrial equipment, sensing devices, electronic instruments, wireless networks, telecom/datacom, measurement technology, and aviation applications.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | |
| 27DW-24D05R3W (3KV) | 9-36 | ± 5 | ± 300 | 70 |
| 27DW-24D09R3W (3KV) | 9-36 | ± 9 | ± 167 | 75 |
| 27DW-24D12R3W (3KV) | 9-36 | ± 12 | ± 125 | 78 |
| 27DW-24D15R3W (3KV) | 9-36 | ± 15 | ± 100 | 80 |
| 27DW-48D05R3W (3KV) | 18-75 | ± 5 | ± 300 | 70 |
| 27DW-48D09R3W (3KV) | 18-75 | ± 9 | ± 167 | 75 |
| 27DW-48D12R3W (3KV) | 18-75 | ± 12 | ± 125 | 78 |
| 27DW-48D15R3W (3KV) | 18-75 | ± 15 | ± 100 | 80 |
Note:
1. No suffix is standard isolation (1.5KVDC) e.g, 27DW-24D05R3W.
2. *add suffix /3KV for 3KVDC isolation, e.g, 27DW-24D05R3W3KV.

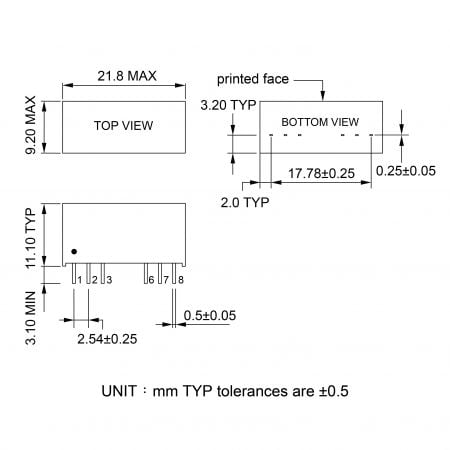

| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo,Io Nom | 4:1 | |||
| Filter | Capacitor | ||||
| Remote Control | Turn on | 0 ~ 0.8Vdc or open circuit | |||
| Turn off | 2.5 ~ 12Vdc | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 3 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | Output:5-9V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-15V Types BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Storage Temperature | -40 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1500000 | Hours | ||
| Weight | 4.5 | g | |||
| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
