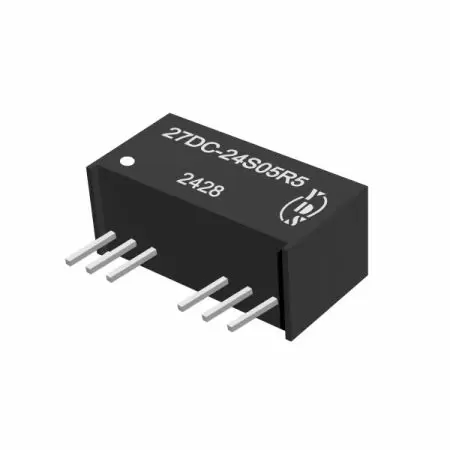

5W SIP8 Regulated Single/Dual Output DC to DC Converter For Industry and Measurement equipment
5 watt Wide input 4:1 voltage range 1.6KV isolation DC to DC power converter. It is available in 8 pin SIP package. The efficiency is up to 85%. The operating environment temperature is from -40°C to +85°C.
Our company, a professional DC to DC Converter Manufacturer, offers the 27DC-5W series—a Cost-effective DC to DC converter designed as a Compact DC to DC converter for space-saving needs. This Board mount DC-DC converter features a Wide Input DC to DC converter range and operates as a Regulated DC-DC Converter. It includes a 1.6KVdc Isolated SIP Converter design and a Short Circuit Protection DC-DC Module to ensure safety, while being RoHS & REACH Compliant Power. As a high-quality SIP DC to DC converter, this Industrial power supply DC-DC is perfect for industrial equipment, sensing devices, electronic instruments, wireless networks, telecom/datacom, measurement technology, and aviation applications.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage Range | Output Voltage Range | Output Current | Efficiency | Capacitive Load(μF) |
|---|---|---|---|---|---|
| Vdc | Vdc | mA | %TYP | Max. | |
| 27DC-24S03R5 | 9-36 | 3.3 | 1200 | 75 | 1800 |
| 27DC-24S05R5 | 9-36 | 5 | 1000 | 81 | 1000 |
| 27DC-24S09R5 | 9-36 | 9 | 556 | 82 | 470 |
| 27DC-24S12R5 | 9-36 | 12 | 417 | 84 | 470 |
| 27DC-24S15R5 | 9-36 | 15 | 333 | 84 | 220 |
| 27DC-24S24R5 | 9-36 | 24 | 208 | 84 | 100 |
| 27DC-24D05R5 | 9-36 | ± 5 | ± 500 | 81 | 470 |
| 27DC-24D09R5 | 9-36 | ± 9 | ± 278 | 82 | 220 |
| 27DC-24D12R5 | 9-36 | ± 12 | ± 208 | 84 | 120 |
| 27DC-24D15R5 | 9-36 | ± 15 | ± 167 | 84 | 100 |
| 27DC-24D24R5 | 9-36 | ± 24 | ± 104 | 84 | 68 |
| 27DC-48S03R5 | 18-75 | 3.3 | 1500 | 76 | 1200 |
| 27DC-48S05R5 | 18-75 | 5 | 1000 | 82 | 680 |
| 27DC-48S09R5 | 18-75 | 9 | 556 | 82 | 330 |
| 27DC-48S12R5 | 18-75 | 12 | 417 | 85 | 330 |
| 27DC-48S15R5 | 18-75 | 15 | 333 | 85 | 150 |
| 27DC-48S24R5 | 18-75 | 24 | 208 | 85 | 68 |
| 27DC-48D05R5 | 18-75 | ± 5 | ± 500 | 80 | 470 |
| 27DC-48D09R5 | 18-75 | ± 9 | ± 278 | 82 | 220 |
| 27DC-48D12R5 | 18-75 | ± 12 | ± 208 | 85 | 100 |
| 27DC-48D15R5 | 18-75 | ± 15 | ± 167 | 85 | 68 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | 4:1 | |||
| Surge Voltage (1sec max) | 24 Vin | 50 | Vdc | ||
| 48 Vin | 80 | Vdc | |||
| Input Current | LOAD:0% | 5 | mA | ||
| Start-up Time | 24 Vin | 9 | Vdc | ||
| 48 Vin | 18 | Vdc | |||
| Shutdown Voltage | 24/48 Vin | 6.5/14.5 | Vdc | ||
| Start-up Time | Nominal input voltage & Nominal load | 20 | ms | ||
| CTRL | Module on | Ctrl pin open | |||
| Module off | Ctrl pin to 2.5 ~ 12Vdc | ||||
| Filter | Capacitor | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | 2 | ± 3 | % | |
| Line Regulation | Regulated | ± 1.0 | % | ||
| Load Regulation | Regulated | ± 1.5 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 150 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us | ||
| Cross Regulation | Dual outputs, Vo1 load at 50%, Vo2 load at range of 10%-100% | ± 5 | % | ||
| Temperature Coefficient | 100% Load | ± 0.02 | ± 0.03 | %/°C | |
| Over-current Protection | Input voltage range | 110 | 250 | %Io | |
| Short Circuit Protection | Input voltage range | Continuous, self-recovery | |||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Voltage | Input / Output | 1600Vdc/ 0.5mA/60Sec | |||
| Isolation Capacitance | Input-output capacitance at 100kHz/0.1V | 1000 | pF | ||
| Switching Frequency | Full load, nominal input | 330 | KHz | ||
| Operating Temperature | Temperature Derating Graph | -40 | +85 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1500000 | Hours | ||
| Weight | 4.5 | g | |||

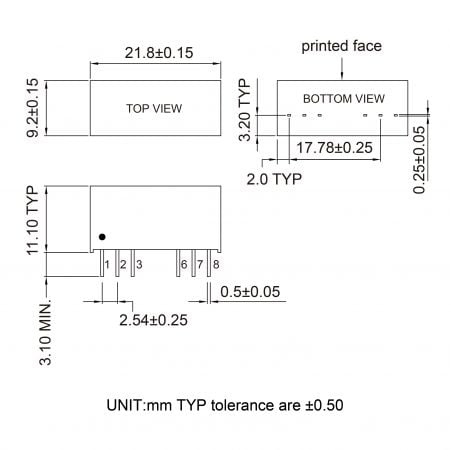

| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
