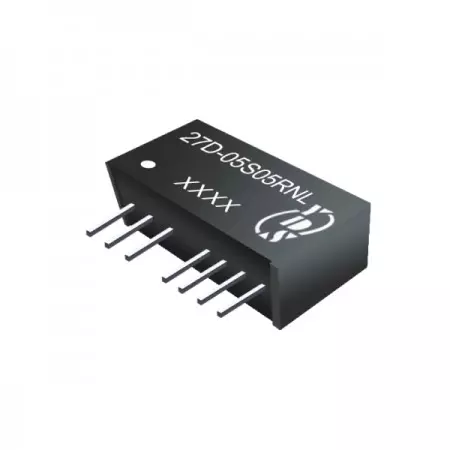

2W SIP8 Regulated Single Output DC to DC Converter For Industry and Measurement equipment
Single output 2 watt SIP-8 DC to DC power converter with 1KV and 3KV isolation voltage. 27D-single series has a wide input 2:1 voltage range. The efficiency is up to 85%. The operating ambient temperature is from -40°C to +85°C. It hasContinuous short circuit protection with current foldback. This regulated output power converter has industry standard pins and internal SMD construction.
Our company, a professional DC-DC Converter Manufacturer, offers the 27D-Single series—a Cost-effective Power Module designed as a high-performance DC-DC Power Module. This PCB mount DC-DC converter features an Isolated DC-DC Converter range and operates as a Regulated DC to DC Converter. It includes a 1KVdc/3KVdc Isolated SIP Converter design and a Short Circuit Protection DC-DC Module to ensure safety, while being RoHS & REACH Compliant Power. As a high-quality SIP DC to DC converter, this Industrial power supply DC to DC is perfect for industrial equipment, sensing devices, electronic instruments, wireless networks, telecom/datacom, measurement technology, and aviation applications.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | |
| 27D-05S05RNL/3KV | 4.5-9 | 5 | 400 | 65 |
| 27D-05S09RNL/3KV | 4.5-9 | 9 | 222 | 70 |
| 27D-05S12RNL/3KV | 4.5-9 | 12 | 167 | 70 |
| 27D-05S15RNL/3KV | 4.5-9 | 15 | 133 | 70 |
| 27D-05S24RNL/3KV | 4.5-9 | 24 | 84 | 70 |
| 27D-12S05RNL/3KV | 9-18 | 5 | 400 | 70 |
| 27D-12S09RNL/3KV | 9-18 | 9 | 222 | 80 |
| 27D-12S12RNL/3KV | 9-18 | 12 | 167 | 80 |
| 27D-12S15RNL/3KV | 9-18 | 15 | 133 | 80 |
| 27D-12S24RNL/3KV | 9-18 | 24 | 84 | 80 |
| 27D-24S05RNL/3KV | 18-36 | 5 | 400 | 75 |
| 27D-24S09RNL/3KV | 18-36 | 9 | 222 | 80 |
| 27D-24S12RNL/3KV | 18-36 | 12 | 167 | 80 |
| 27D-24S15RNL/3KV | 18-36 | 15 | 133 | 80 |
| 27D-24S24RNL/3KV | 18-36 | 24 | 84 | 80 |
| 27D-48S05RNL/3KV | 36-72 | 5 | 400 | 70 |
| 27D-48S09RNL/3KV | 36-72 | 9 | 222 | 80 |
| 27D-48S12RNL/3KV | 36-72 | 12 | 167 | 80 |
| 27D-48S15RNL/3KV | 36-72 | 15 | 133 | 80 |
| 27D-48S24RNL/3KV | 36-72 | 24 | 84 | 80 |
Note:
1. No suffix is standard isolation (1KVDC) e.g, 27D-12S05RNL.
2. *add suffix /3KV for 3KVDC isolation, e.g, 27D-12S05R3KV.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo,Io Nom | 2:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 3 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | Output:5-9V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-24V Types BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1500000 | Hours | ||
| Weight | 4.5 | g | |||

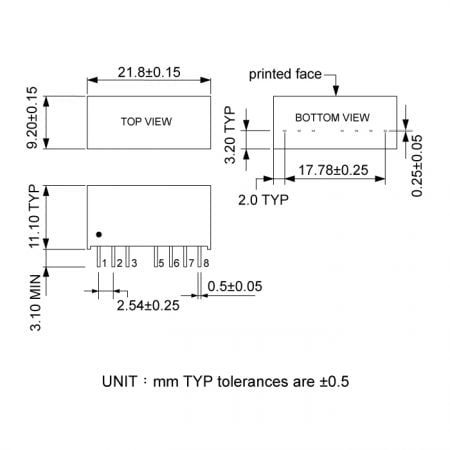

| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
