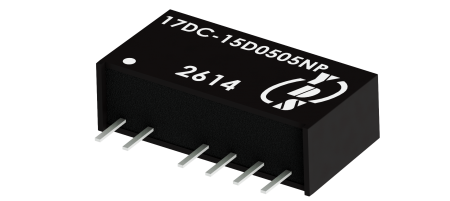

1W DC-DC Converter In SIP7 Package With 1500V To 3000V Isolation And 82% Efficiency

5 0 Reviews

1W DC-DC Converter in SIP7 Package with 1500V to 3000V Isolation and 82% Efficiency

17DC Series

1 Watt Unregulated DC to DC Power Module | Dual Output | Continuous Short Circuit Protection | SIP 7-Pin

1W 7PIN SIP package Unregulated DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications.

Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature range is from -40°C to +105°C. It has a high efficiency of up to 82%.

This compact DC-DC converter is an economical DC-DC converter for industrial equipment and electronic instruments. Featuring an unregulated DC-DC converter design with short circuit protection DC-DC module, this isolated DC-DC converter ensures reliable board mount DC-DC converter performance in wireless networks and telecom/datacom. Our embedded DC-DC power module also serves as a customized SIP DC-DC converter, ideal for measurement technology and industrial DC-DC converter needs.

Our DC-DC power converter products are RoHS/REACH compliant and can be customized, with a 3-year warranty on sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

1W SIP7 1.5KV~3KV IsolationUnregulated DC-DC Power (17DC Series) | Cost-effective Power Module | PCB mount DC-DC converter

Features

7PIN SIP Package
No-load input current as low as 5mA
Continuous short-circuit protection
High Efficiency up to 82%
Unregulated Output Types
1.5KVDC ~ 3KVDC Isolation
Operating Temperature:-40℃to +105℃
Industry Standard Pinout

Applications

Industry equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Output2 Voltage	Output2 Current	Efficiency	Capacitive Load(µF)
Part Number	Vdc	mA	%TYP	Max.
17DC-XXDXX03NP^(H3)	3.3	150	73	2400
17DC-XXDXX05NP^(H3)	5	100	80	2400
17DC-XXDXX09NP^(H3)	9	56	80	1000
17DC-XXDXX12NP^(H3)	12	42	81	470
17DC-XXDXX15NP^(H3)	15	34	81	330
17DC-XXDXX24NP^(H3)	24	21	82	100

Note: 1. No suffix is standard isolation (1.5KVDC) e.g, 17DC-03D0505NP, *add suffix “H3” for 3KVDC isolation, 2.”XX” is voltage : 03=3.3Vdc,05=5Vdc, 09=9Vdc 12=12Vdc 15=15Vdc.24=24Vdc； e.g, 17DC-03D0305NP, 17DC-05D0512NPH3, 17DC-09D0315NP

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Range	3.3V Input Models	2.97	3.3	3.63	VDC
	5V Input Models	4.5	5	5.5
	9V Input Models	8.1	9	9.9
	12V Input Models	9.6	12	14.4
	15V Input Models	12	15	18
	24V Input Models	19.2	24	28.8
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% full load		±5	%
Short Circuit Protection	Continuous
Line Regulation	For 1.0% OF Vin	1.2		%
Load Regulation	3.3V (10% To 100% F.L)	15	20	%
	5V (10% To 100% F.L)	10	15	%
	9V (10% To 100% F.L)	8	10	%
	12V (10% To 100% F.L)	7	10	%
	15V (10% To 100% F.L)	6	10	%
	24V (10% To 100% F.L)	5	10	%
Ripple & Noise	BW=DC To 20MHz @Vo:3.3V,5V,9V,12V,15V	30	75	mVp-p
Ripple & Noise	BW=DC To 20MHz @ Vo:24V	50	100	mVp-p

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Isolation Capacitance	Input-output, 100KHz/0.1V		20		pF
Switching Frequency	Full load,nominal input @3.3V, 5V Vin		215/370		KHz
Switching Frequency	Full load,nominal input @other Vin		250		KHz
Operation Temperature		-40		+105	°C
Storage Temperature		-55		+125	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F@25°C	3500000			Hours
Weight			2.1		g

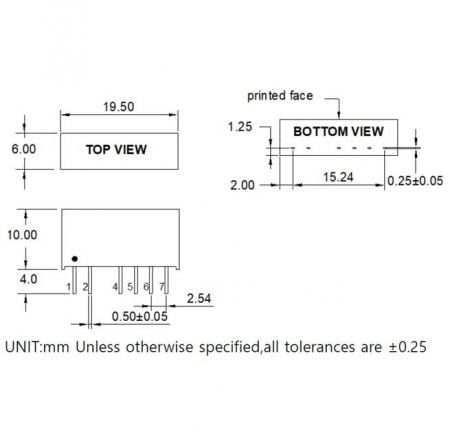

Dimensions	19.5x6.0x10.0				mm
