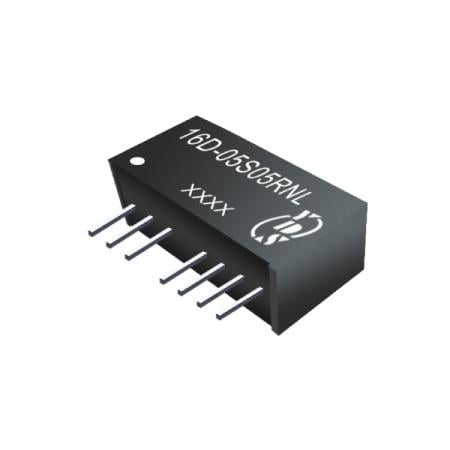

SIP8 Single Output DC to DC Power Conversion For Sensing and Industry equipment equipment
Single output 1 watt SIP-8 package DC to DC power converter. 16D-Single series has 2:1 wide input voltage range and 1KV isolation voltage. The efficiency is up to 85%. It is a regulated output power conversion. The operating ambient temperature range is from -40°C to +85°C. This power converter has continuous short circuit protection with current foldback. It has industry standard pins and internal SMD construction.
Leading DC-DC converter manufacturer providing 2:1 wide input DC to DC converters and regulated DC-DC power modules. These cost-effective SIP converters are RoHS & REACH compliant board mount solutions, perfect for industrial, sensing, wireless networking, telecom, and aerospace.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | |
| 16D-05S05R*2NL | 5-9 | 5 | 200 | 60 |
| 16D-05S09R*2NL | 5-9 | 9 | 111 | 70 |
| 16D-05S12R*2NL | 5-9 | 12 | 84 | 70 |
| 16D-05S15R*2NL | 5-9 | 15 | 67 | 70 |
| 16D-05S24R*2NL | 5-9 | 24 | 42 | 70 |
| 16D-12S05R*2NL | 9-18 | 5 | 200 | 70 |
| 16D-12S09R*2NL | 9-18 | 9 | 111 | 80 |
| 16D-12S12R*2NL | 9-18 | 12 | 84 | 80 |
| 16D-12S15R*2NL | 9-18 | 15 | 67 | 80 |
| 16D-12S24R*2NL | 9-18 | 24 | 42 | 80 |
| 16D-24S05R*2NL | 18-36 | 5 | 200 | 75 |
| 16D-24S09R*2NL | 18-36 | 9 | 111 | 80 |
| 16D-24S12R*2NL | 18-36 | 12 | 84 | 80 |
| 16D-24S15R*2NL | 18-36 | 15 | 67 | 80 |
| 16D-24S24R*2NL | 18-36 | 24 | 42 | 80 |
| 16D-48S05R*2NL | 36-72 | 5 | 200 | 70 |
| 16D-48S09R*2NL | 36-72 | 9 | 111 | 80 |
| 16D-48S12R*2NL | 36-72 | 12 | 84 | 80 |
| 16D-48S15R*2NL | 36-72 | 15 | 67 | 80 |
| 16D-48S24R*2NL | 36-72 | 24 | 42 | 80 |
Note:
No suffix "2" is standard PIN Connection e.g,16D-24S24RNL,16D-05S15RNL
add suffix“2”for PIN5,8 NC e.g, 16D-24S24R2NL 16D-05S15R2NL
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo,Io Nom | 2:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 3 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | Output:5-9V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-24V Types BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | 85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1500000 | Hours | ||
| Weight | 4.5 | g | |||

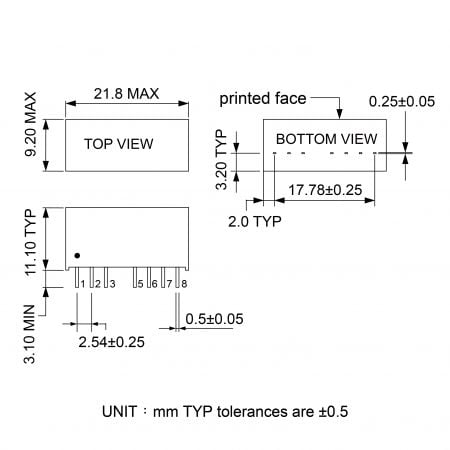

| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
