1W SIP8 Regulated Dual Output DC-DC Converter, 1KV Isolation, 2:1 Wide Input Range

5 0 Reviews

1W SIP8 Regulated Dual Output DC-DC Converter, 1KV Isolation, 2:1 Wide Input Range

16D-Dual Series

SIP8 Dual Output DC to DC Power Conversion For Sensing and Industry equipment equipment

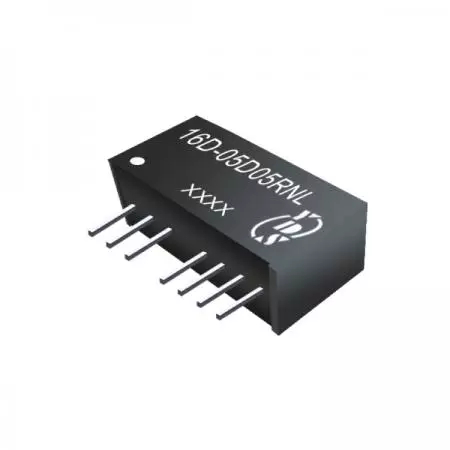

Dual output 2:1 wide input voltage range DC to DC power converter with 1KV isolation voltage. 16D-Dual series is a regulated output SIP-8 power conversion. The efficiency is up to 85%. The operating ambient temperature is from -40°C to +85°C. This power converter has continuous short circuit protection with current foldback. It has industry standard pins and internal SMD construction.

Wide input DC-DC converters and regulated power modules from a professional DC-DC converter manufacturer. These cost-effective SIP DC to DC converters are RoHS & REACH compliant board mount solutions for industrial, sensing, wireless networking, telecom, and aerospace applications.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

1W 1KV Isolation 2:1 SIP DC-DC Converter(16D-Dual Series) | DC-DC converter manufacturer SIP module | High reliability DC-DC module

Features

2:1 wide input voltages range.
High efficiency up to 85%.
Regulated output types.
Low ripple and noise.
Internal SMD construction.
Operating temperature:-40°C to +85°C.
Industry standard pinout.
Continuous short circuit protection with current foldback.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.
Aviation.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
Part Number	Vdc	Vdc	mA	%Typ
16D-05D05RNL	5-9	± 5	± 100	60
16D-05D09RNL	5-9	± 9	± 56	70
16D-05D12RNL	5-9	± 12	± 42	70
16D-05D15RNL	5-9	± 15	± 34	70
16D-05D24RNL	5-9	± 24	± 21	70
16D-12D05RNL	9-18	± 5	± 100	70
16D-12D09RNL	9-18	± 9	± 56	80
16D-12D12RNL	9-18	± 12	± 42	80
16D-12D15RNL	9-18	± 15	± 34	80
16D-12D24RNL	9-18	± 24	± 21	80
16D-24D05RNL	18-36	± 5	± 100	75
16D-24D09RNL	18-36	± 9	± 56	80
16D-24D12RNL	18-36	± 12	± 42	80
16D-24D15RNL	18-36	± 15	± 34	80
16D-24D24RNL	18-36	± 24	± 21	80
16D-48D05RNL	36-72	± 5	± 100	70
16D-48D09RNL	36-72	± 9	± 56	80
16D-48D12RNL	36-72	± 12	± 42	80
16D-48D15RNL	36-72	± 15	± 34	80
16D-48D24RNL	36-72	± 24	± 21	80

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types	Vo,Io Nom			2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% full load		± 3	%
Short Circuit Protection	Continuous
Line Regulation	Regulated		± 0.5	%
Load Regulation	Regulated		± 0.8	%
Ripple & Noise	Output:5-9V Types BW=DC To 20MHz		100	mVp-p
Ripple & Noise	Output:12-24V Types BW=DC To 20MHz		1% of Vout	mVp-p
Transient response setting time	50% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	DAP
MTBF	MIL-HDBK-217F @25°C	1500000			Hours
Weight		4.5			g

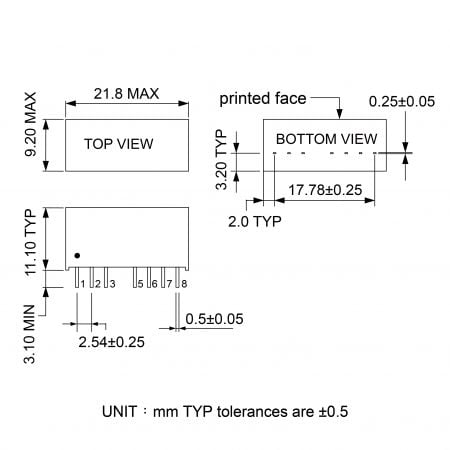

Dimensions		21.8 x 9.2 x 11.1			mm
