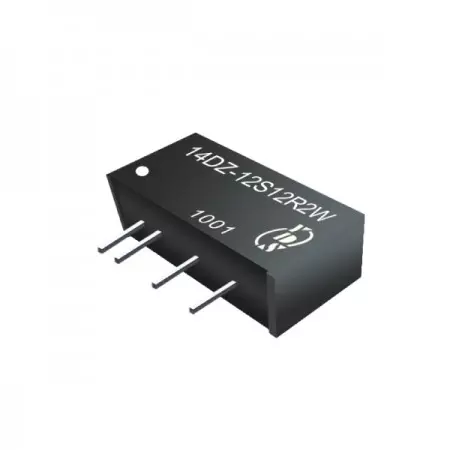

2W SIP7 Regulated Single Output DC to DC Converter For Industry and Telecom/Datacom equipment
2 watt 2:1 wide input voltage range DC to DC power converter with 3KV isolation voltage. 14DZ-2W series is a regulated output SIP-7 power conversion. The efficiency is up to 83%. The operating ambient temperature is from -40°C to +85°C. This power converter has industry standard pins and internal SMD construction. No external components are required.
As a specialist in Industrial Power Supply DC to DC, we offer Isolated DC-DC Converter and Regulated DC to DC Converter solutions for industrial equipment, wireless networking, telecom/datacom, and measurement equipment. Our range includes Board mount DC-DC converter, Economical DC-DC Converter, and SIP DC to DC converter with RoHS & REACH Compliant Power.
Our DC-to-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

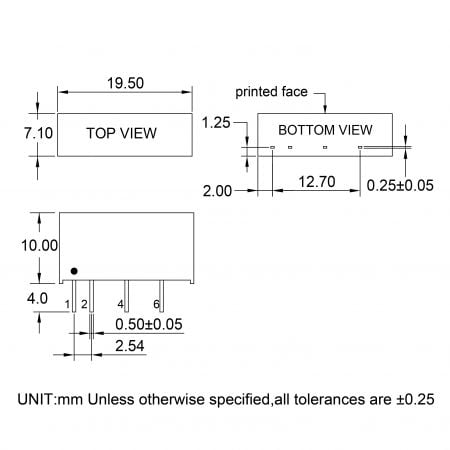

| Quantity: | |
|---|---|
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | |
| 14DZ-05S05R2W | 4.5-9 | 5 | 400 | 70 |
| 14DZ-05S09R2W | 4.5-9 | 9 | 222 | 72 |
| 14DZ-05S12R2W | 4.5-9 | 12 | 167 | 75 |
| 14DZ-05S15R2W | 4.5-9 | 15 | 133 | 78 |
| 14DZ-05S24R2W | 4.5-9 | 24 | 84 | 80 |
| 14DZ-12S05R2W | 9-18 | 5 | 400 | 75 |
| 14DZ-12S09R2W | 9-18 | 9 | 222 | 78 |
| 14DZ-12S12R2W | 9-18 | 12 | 167 | 80 |
| 14DZ-12S15R2W | 9-18 | 15 | 133 | 80 |
| 14DZ-12S24R2W | 9-18 | 24 | 84 | 83 |
| 14DZ-24S05R2W | 18-36 | 5 | 400 | 76 |
| 14DZ-24S09R2W | 18-36 | 9 | 222 | 78 |
| 14DZ-24S12R2W | 18-36 | 12 | 167 | 80 |
| 14DZ-24S15R2W | 18-36 | 15 | 133 | 80 |
| 14DZ-24S24R2W | 18-36 | 24 | 84 | 83 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo,Io Nom | 2:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 1.5 | % | ||
| Ripple & Noise | Output:5V,9V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-24V Types BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 1500000 | Hours | ||
| Weight | 2.7 | g | |||
| Dimensions | 19.5 x 7.1 x 10.0 | mm | |||
