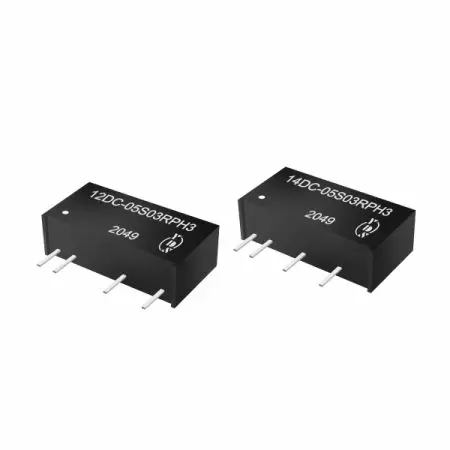

DC-DC Converter, 1.5KV & 3KV Isolation, Regulated, 1W Single Output,SIP7 Package

5 0 Reviews

DC-DC Converter, 1.5KV & 3KV Isolation, Regulated, 1W Single Output,SIP7 Package

12DC/14DC-R Series

DC to DC Converter Regulated Type For Industry and Telecom/Datacom equipment

The 12DC/14DC-R series is a regulated 1-watt DC to DC converter in a 7PIN SIP package, offering isolation voltages of 1.5KV and 3KV. This single-output DC to DC converter features industry-standard pins, operates efficiently up to 73%, and functions reliably within a wide temperature range of -40°C to +85°C. No external components are required for operation, making it ideal for compact and efficient designs.

Leading DC-DC converter manufacturer offering RoHS & REACH compliant, SIP, and Board mount Isolated DC to DC Converters. We provide custom DC-DC converter design for instruments, industrial, telecom/datacom, wireless, and measuring equipment.

This DC to DC converter from Yuan Dean is RoHS-compliant, customizable, and includes a 3-year product warranty. OEM/ODM requirements are welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

1W 1.5KV/3KV Isolation SIP DC-DC Converter | distributed power architecture module | Reliable power solutions B2B

Features

7PIN SIP package.
No-load input current as low as 5mA.
Continuous short-circuit protection.
Regulated output types.
High efficiency up to 73%.
1.5KVDC & 3KVDC isolation.
Internal SMD construction.
No external component required.
Industry standard pinout.
Operating temperature:-40℃ to +85℃.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.
Aviation.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Output Voltage	Output Current	Efficiency	Capacitive Load
Part Number	Vdc	mA	% TYP	(μF) MAX
(12/14)DC-05S03RP^(H3)	3.3	250	67	2400
(12/14)DC-05S05RP^(H3)	5	200	70	2400
(12/14)DC-05S09RP^(H3)	9	111	71	1000
(12/14)DC-05S12RP^(H3)	12	84	72	560
(12/14)DC-12S03RP^(H3)	3.3	250	67	2400
(12/14)DC-12S05RP^(H3)	5	200	70	2400
(12/14)DC-12S09RP^(H3)	9	111	73	1000
(12/14)DC-12S12RP^(H3)	12	84	73	560
(12/14)DC-15S03RP^(H3)	3.3	250	69	2400
(12/14)DC-15S05RP^(H3)	5	200	72	2400
(12/14)DC-15S09RP^(H3)	9	111	73	1000
(12/14)DC-15S12RP^(H3)	12	84	73	560
(12/14)DC-24S03RP^(H3)	3.3	250	70	2400
(12/14)DC-24S05RP^(H3)	5	200	72	2400
(12/14)DC-24S09RP^(H3)	9	111	73	1000
(12/14)DC-24S12RP^(H3)	12	84	73	560

Note:
1. No suffix is standard isolation (1.5KVDC) e.g, 12DC-05S05RP, *add suffix “H3” for 3KVDC isolation, e.g, 12DC-12S05RPH3
2. (12/14) represents packaging, optional, 12DC packaging pins 1,2,5,7, ; 14DC packaging 1,2,4,6.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo, Io Nom			± 5	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% full load		± 3	%
Short Circuit Protection	Continuous
Line Regulation	For 1.0% of Vin		0.25	%
Load Regulation	10% to 100% F.L		2	%
Ripple & Noise	BW=DC To 20MHz		75	mVp-p
Transient Response Setting Time	50% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input@ 5Vin		370		KHz
Switching Frequency	Full load, nominal input@ other		250		KHz
Operating Temperature		-40		+85	°C
Storage Temperature		-55		+125	°C
Humidity				95	%
Cooling	Free air Convection
Case Material	DAP
MTBF	MIL-HDBK-217F @25°C	1500000			Hours
Weight			2.1		g

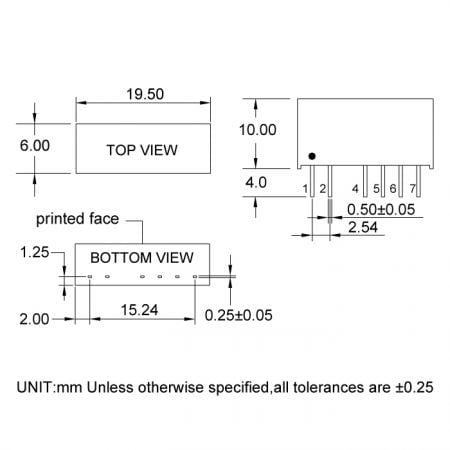

Dimensions		19.5 x 6.0 x 10.0			mm
