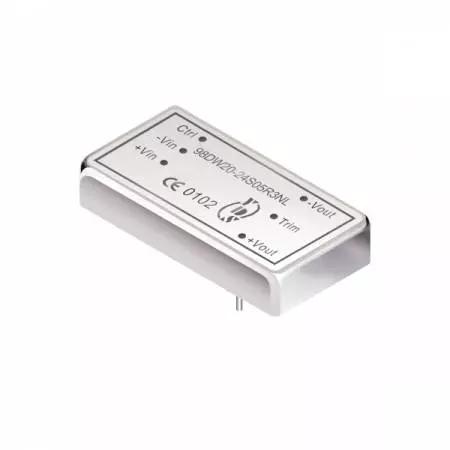

DC-DC Converter, 2'' x 1'' size, 4:1 Wide Input Range, 6PIN DIL Package, Single & Dual Regulated Output For Railway and Industry equipment
3KV isolation voltage 20 watt DC to DC power converter with 4:1 wide input voltage range. It is available in DIL package and is a power conversion for railway application. The 98DW20-R3 series is certified to the railway application standard EN 50155. The packaging material conforms to the UL94V-0 specification. The operating environment temperature ranges is from -40°C to +87°C and the efficiency is up to 89%. The product is tested by 100% high temperature pre-burning before shipment.
Our EN50155 Power for Onboard Systems solutions provide high reliability for modern rolling stock. Featuring a high-performance 110V railway converter and a space-saving PCB Mount Rail Power Module, these units are engineered to withstand the rigorous electrical environments of rail transport.
This Encapsulated DC-DC Converter series utilizes advanced potting technology for superior shock and vibration resistance. As a dedicated Isolated DC-DC Converter for Rail, it ensures robust electrical isolation and protection, while its industrial dc dc converter grade specifications guarantee stable operation across extreme temperature ranges for critical onboard control and communication systems.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage Range | Nominal Input Voltage | Output Voltage Range | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | mA | %TYP | |
| 98DW20-24S03R3NL | 9-36 | 7 | 736 | 3.3 | 4500 | 84 |
| 98DW20-24S05R3NL | 9-36 | 7 | 968 | 5 | 4000 | 86 |
| 98DW20-24S12R3NL | 9-36 | 7 | 946 | 12 | 1670 | 88 |
| 98DW20-24S15R3NL | 9-36 | 7 | 946 | 15 | 1330 | 88 |
| 98DW20-48S03R3NL | 18-75 | 6 | 368 | 3.3 | 4500 | 84 |
| 98DW20-48S05R3NL | 18-75 | 6 | 484 | 5 | 4000 | 86 |
| 98DW20-48S12R3NL | 18-75 | 6 | 473 | 12 | 1670 | 88 |
| 98DW20-48S15R3NL | 18-75 | 6 | 473 | 15 | 1330 | 88 |
| 98DW20-110S03R3NL | 40-160 | 5 | 165 | 3.3 | 4500 | 82 |
| 98DW20-110S05R3NL | 40-160 | 5 | 214 | 5 | 4000 | 85 |
| 98DW20-110S12R3NL | 40-160 | 5 | 211 | 12 | 1670 | 86 |
| 98DW20-110S15R3NL | 40-160 | 5 | 211 | 15 | 1330 | 86 |
| 98DW20-24D12R3NL | 9-36 | 7 | 946 | ± 12 | ± 833 | 88 |
| 98DW20-24D15R3NL | 9-36 | 7 | 958 | ± 15 | ± 667 | 87 |
| 98DW20-48D12R3NL | 18-75 | 6 | 473 | ± 12 | ± 833 | 88 |
| 98DW20-48D15R3NL | 18-75 | 6 | 479 | ± 15 | ± 667 | 87 |
| 98DW20-110D12R3NL | 40-160 | 5 | 211 | ± 12 | ± 833 | 86 |
| 98DW20-110D15R3NL | 40-160 | 5 | 214 | ± 15 | ± 667 | 85 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Surge Voltage (1 sec. max.) | 24V models | 50 | Vdc | ||
| 48V models | 100 | Vdc | |||
| 110V models | 170 | Vdc | |||
| Input Filter | PI Type | ||||
| Reflected ripple current | 30 | mAp-p | |||
| Remote ON/OFF (Refer to –Vin PIN) | Positive Logic ON : Open OFF: Short | 3 0 | 12 1.2 | Vdc | |
| Input current of Ctrl PIN | 0.5 | 0.5 | mA | ||
| Remote off input current | 3 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 2 | % | ||
| Short Circuit Protection | Continuous , Auto-Recovery | ||||
| Output Power Protection | Continuous , Auto-Recovery | 120 | 170 | % | |
| Over Voltage Protection | 3.3Vdc | 3.7 | 5.4 | Vdc | |
| 5Vdc | 5.6 | 7.0 | |||
| 12Vdc | 13.5 | 19.6 | |||
| 15Vdc | 16.8 | 20.5 | |||
| Line Regulation | Nominal Input Voltage | ± 0.5 | % | ||
| Load Regulation | Single output models | ± 0.5 | % | ||
| Dual output models | ± 5 | ||||
| Ripple & Noise (BW=DC To 20MHz Measured with a 10uF MLCC.) | 3.3V&5.0V models | 75 | mVp-p | ||
| Other models | 100 | ||||
| Start up time | Nominal Input Voltage | 30 | ms | ||
| Transient response setting time | 25% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | Input To Output | 3000 | Vdc | ||
| Input(Output) To Case | 1600 | ||||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 330 | KHz | ||
| Operating Temperature | -40 | +87 | °C | ||
| Temperature Coefficient | 100% Load | ±0.03 | %/°C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Case Temperature | +105 | °C | |||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case material | Six-side shield case | ||||
| MTBF | MIL-HDBK-217F@25℃ | 1500000 | Hours | ||
| Weight | 30 | g | |||

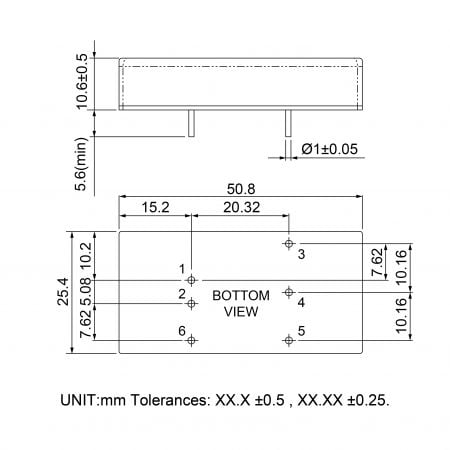

| Dimensions | 50.8 x 25.4 x 10.6 | mm | |||
