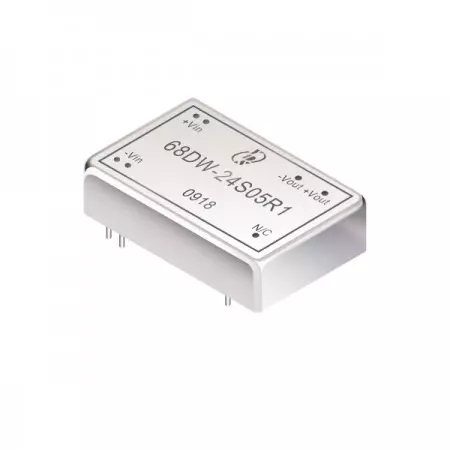

10 Watt Railway Grade DC to DC Power Module | 4:1 Ultra-wide Input | 1.6KV Isolated | 1.25"x0.8" Size For Railway and Industry equipment
10 watt DC to DC power converter with 1.6KV isolation voltage and a 4:1 wide input voltage range. It is available in DIL package and is a power conversion for railway application. The 68DW-R1 series is designed according to EN50155. The packaging material meets the UL94V-0 specification. The operating environment temperature is from -40°C to +87°C and the efficiency can reach 85%. The product is tested by 100% high temperature pre-burning before shipment.
Our EN50155 Power for Onboard Systems ensures high reliability for modern trains. Featuring high-efficiency 110V railway converter and PCB Mount Rail Power Module options, this Encapsulated DC-DC Converter offers superior shock resistance. As an Isolated DC-DC Converter for Rail, this industrial dc dc converter guarantees stable power for critical rail systems.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|---|
| Vdc | No Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | |
| 68DW-110S03R1 | 40-160 | 6 | 112 | 3.3 | 3000 | 81 |
| 68DW-110S05R1 | 40-160 | 6 | 110 | 5 | 2000 | 82 |
| 68DW-110S12R1 | 40-160 | 6 | 108 | 12 | 833 | 84 |
| 68DW-110S15R1 | 40-160 | 6 | 107 | 15 | 670 | 85 |
| 68DW-110D12R1 | 40-160 | 6 | 106 | ± 12 | ± 420 | 85 |
| 68DW-110D15R1 | 40-160 | 6 | 109 | ± 15 | ± 340 | 85 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Surge Voltage (1 sec. max.) | 110V models | 170 | Vdc | ||
| Input Filter | PI Type | ||||
| Reflected ripple current | 30 | mAp-p | |||
| Remote ON/OFF (Refer to –Vin PIN) | Positive Logic ON : Open OFF: Short | 3 0 | | 12 1.2 | Vdc Vdc |
| Input current of Ctrl PIN | 0.5 | 0.5 | mA | ||
| Remote off input current | 3 | mA |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual(Balance Load) | ± 0.5 ± 0.5 | % | ||
| Cross Regulation | Dual(25% To 100% Load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output >15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 350 | us | ||
| Short Circuit Protection | Hiccup, automatic Recovery |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1600 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 330 | KHz | |||
| Operating Temperature | with derating | -40 | +87 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Temperature Coefficient | 100% Load | ±0.03 | %/°C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case material | Nickel coated copper with no-conductive base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 900000 | Hours | ||
| Weight | 17.5 | g | |||

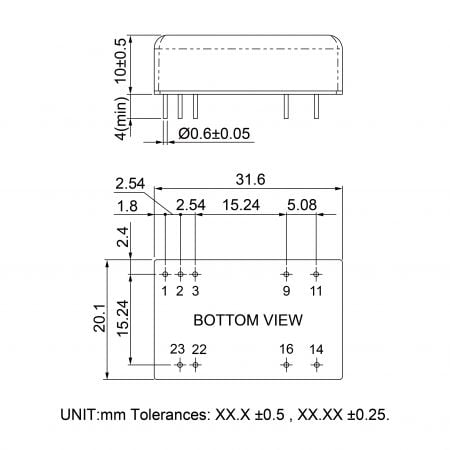

| Dimensions | 31.6 x 20.1 x 10.0 | mm | |||
