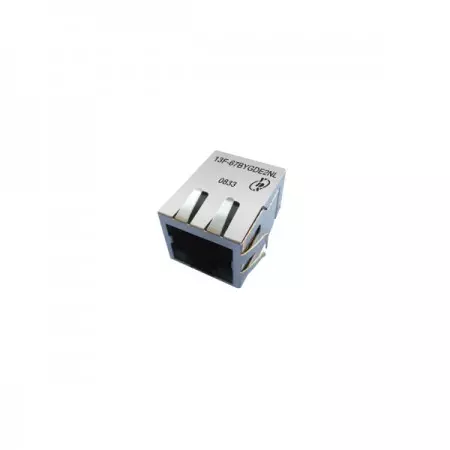

RJ45 Connector With 10/100 Base-T Magnetics For PoE/PoE+ Devices
Single port 10/100 Base-T RJ45 jack with magnetics for PoE & PoE+ applications. 13F-67 series has passed the UL 60950-1 safety certification. Designed for 100 Base transmission over UTP-5 cable. Magnetic design supports each PHY and meets or exceeds the IEEE 802.3 and ANSI X3.263 standards. Compliant with IEEE 802.3at standard, including 350uH minimum OCL, 8mA bias current. According to IEEE 802.3 requirements, the minimum is 2250VDC isolation.
Leading provider of Magnetic RJ45 Connector and Filtered RJ45 Jack for VOIP, wireless networks, telecom/datacom, and HUBs. We offer high-quality rj45 with poe, alimentacion poe rj45, and rj45 to poe solutions. Our poe rj45 connector ensures reliable performance for all Power over Ethernet applications.
The RJ45 connector products of Yuan Dean are RoHS-compliant, and can be customized for products.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Turns Ratio Pri: Sec. ± 3% | EMI Fingers | LED (L/R) | Insertion Loss (dB max) | Return Loss (dB min @100Ω) | ||||
|---|---|---|---|---|---|---|---|---|---|
| TX | RX | 0.3-100 MHz | 0.5-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | |||

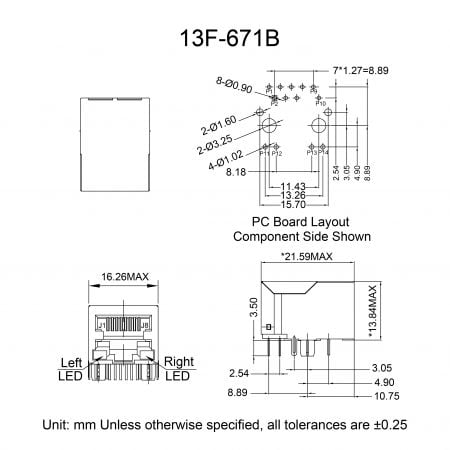

| 13F-671BYGDNW2NL | 1CT: 1CT | 1CT: 1CT | YES | Y/G | -1.1 | -18 | -15.5 | -13.6 | -12 |

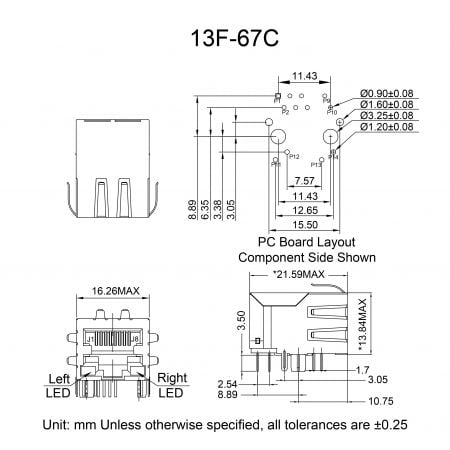

| 13F-67CGYDS2NL | 1CT: 1CT | 1CT: 1CT | YES | G/Y | -1.1 | -18 | -15.5 | -13.6 | -12 |
| Part Number | Crosstalk (dB TYP.) | Common Mode Rejection (dB TYP.) | POE Current | Hipot (VDC) | ||
|---|---|---|---|---|---|---|
| 0.3-100 MHz | 0.3-30 MHz | 30-60 MHz | 60-100 MHz | |||
| 13F-671BYGDNW2NL | -38 | -50 | -40 | -30 | 700mA | 2250 |
| 13F-67CGYDS2NL | -38 | -50 | -40 | -30 | 350mA | 2250 |
