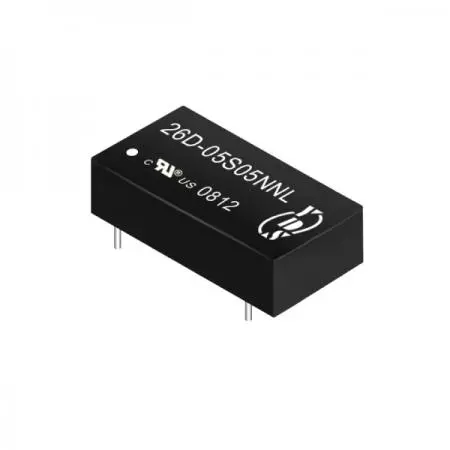

DIL14 Single/Dual Output DC to DC Converter For Industry and Measurement equipment
3KV isolation voltage unregulated output type DC to DC power converter with 1 watt power. 26D series is available in DIL package. The operating ambient temperature is from -40°C to +85°C, and the efficiency is up to 85%. The internal is SMD structure. It has industry standard pins and no external components required.
This Series offers economical DC to DC converters including unregulated DC to DC converters and isolated DC to DC converters. These RoHS & REACH compliant power solutions in a DIL DC to DC converter or board mount DC to DC converter package serve as high-quality DC to DC power modules for industrial power supply DC-DC needs in sensing, wireless, and measurement technology.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Package Style |
|---|---|---|---|---|
| Vdc | mA | %TYP | ||
| 26D-XXS03NNL | 3.3 | 303 | 70 | 1 |
| 26D-XXS05NNL | 5 | 200 | 70 | 1 |
| 26D-XXS09NNL | 9 | 112 | 75 | 1 |
| 26D-XXS12NNL | 12 | 84 | 78 | 1 |
| 26D-XXS15NNL | 15 | 67 | 80 | 1 |
| 26D-XXS24NNL | 24 | 42 | 82 | 1 |
| 26D-XXD03NNL | ± 3.3 | ± 150 | 70 | 1 |
| 26D-XXD05NNL | ± 5 | ± 100 | 70 | 1 |
| 26D-XXD09NNL | ± 9 | ± 56 | 75 | 1 |
| 26D-XXD12NNL | ± 12 | ± 42 | 78 | 1 |
| 26D-XXD15NNL | ± 15 | ± 34 | 80 | 1 |
| 26D-XXD24NNL | ± 24 | ± 21 | 82 | 1 |
| 26D-XXS03N2NL | 3.3 | 303 | 70 | 2 |
| 26D-XXS05N2NL | 5 | 200 | 70 | 2 |
| 26D-XXS09N2NL | 9 | 112 | 75 | 2 |
| 26D-XXS12N2NL | 12 | 84 | 78 | 2 |
| 26D-XXS15N2NL | 15 | 67 | 80 | 2 |
| 26D-XXS24N2NL | 24 | 42 | 82 | 2 |
| 26D-XXD03N2NL | ± 3.3 | ± 150 | 70 | 2 |
| 26D-XXD05N2NL | ± 5 | ± 100 | 70 | 2 |
| 26D-XXD09N2NL | ± 9 | ± 56 | 75 | 2 |
| 26D-XXD12N2NL | ± 12 | ± 42 | 78 | 2 |
| 26D-XXD15N2NL | ± 15 | ± 34 | 80 | 2 |
| 26D-XXD24N2NL | ± 24 | ± 21 | 82 | 2 |
| Recognized By UL 60950-1 | ||||
| 26D-05S05NNL,26D-05S09NNL,26D-05S12NNL,26D-05S15NNL,26D-05S24NNL, 26D-24S05NNL,26D-24S24NNL | ||||
Note:
1.”XX” Is Input Voltage:03＝3.3Vdc,05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc,24=24Vdc.
2.The input voltage increases, there will be an increase in efficiency.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Short Term | 1 | Sec | ||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V,5V (10% To 100% F.L) | 15 | % | ||
| Load Regulation | 9V,12V,15V,24V (10% To 100% F.L) | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F@25℃ | 3500000 | Hours | ||
| Weight | Package 1 or Package 2 | 2.3 or 3.0 | g | ||

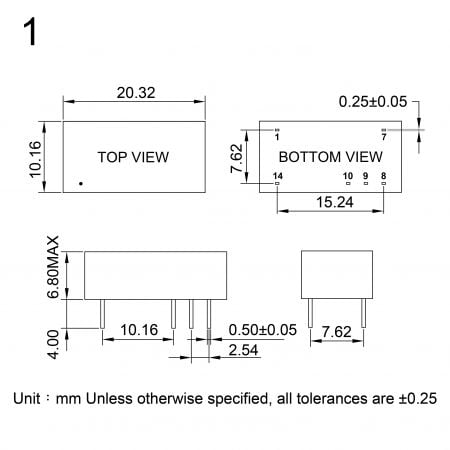

| Dimensions | Package 1 | 20.32 x 10.16 x 6.80 | mm | ||

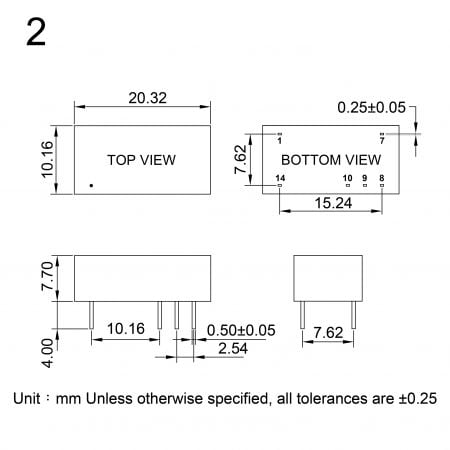

| Dimensions | Package 2 | 20.32 x 10.16 x 7.70 | mm | ||
