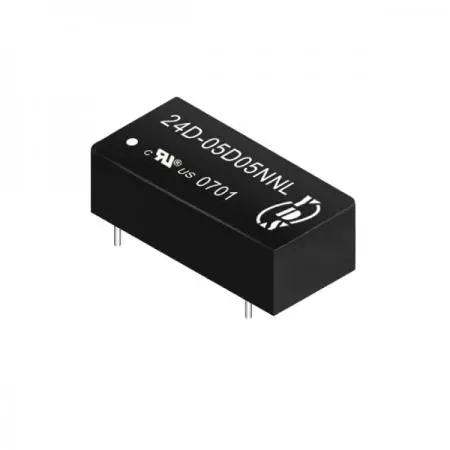

2W DIL14 Single/Dual Output DC-DC Converter, 1KV Isolation

5 0 Reviews

2W DIL14 Single/Dual Output DC-DC Converter, 1KV Isolation

24D Series

DIL14 DC to DC Converter, Single/Dual Output For Industry and Telecom/Datacom equipment

DC to DC power converter features 2 watt power and 1KV isolation voltage. 24D series is unregulated output type product and is available in DIL package. The inside of the product is an SMD structure. The operating ambient temperature is from -40°C to +85°C, and the efficiency is up to 85%. This product has industry-standard pins and no external components required.

Cost-effective DIL board-mount DC-DC converters with unregulated and isolated designs. Compact, RoHS/REACH compliant power modules for industrial equipment, sensing, wireless networks, telecom, and measurement technology.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

2W 1KV Isolation DIP DC-DC Converter(24D Series) | PCB mount DC to DC converter DIL14 | UL certified

Features

14PIN DIL package.
High efficiency up to 85%.
Internal SMD construction.
Unregulated output types.
No external component required.
Operating temperature:-40°C to +85°C.
Industry standard pinout.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Output Voltage	Output Current	Efficiency	Recognized By UL 60950-1
Part Number	Vdc	mA	%TYP
24D-XXS05NNL	5	400	70	24D-05D05NNL 24D-05D12NNL 24D-05D15NNL 24D-05D24NNL 24D-12D12NNL 24D-12D15NNL 24D-24D05NNL 24D-24D09NNL 24D-24D15NNL 24D-24D24NNL
24D-XXS09NNL	9	222	75
24D-XXS12NNL	12	167	80
24D-XXS15NNL	15	133	80
24D-XXS24NNL	24	84	85
24D-XXD05NNL	± 5	± 200	70
24D-XXD09NNL	± 9	± 111	75
24D-XXD12NNL	± 12	± 84	80
24D-XXD15NNL	± 15	± 67	80
24D-XXD24NNL	± 24	± 42	85

Note:
1.”XX” Is Input Voltage:03＝3.3Vdc, 05=5Vdc, 09=9Vdc,12=12Vdc,15=15Vdc 24=24Vdc.
2. The input voltage increases, there will be an increase in efficiency.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo,Io Nom			± 10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% full load		± 5	%
Short Circuit Protection	Short Term		1	Sec
Line Regulation	For 1.0% OF Vin	1.2		%
Load Regulation	5V (10% To 100% F.L)		15	%
Load Regulation	9V,12V,15V,24V (10% To 100% F.L.)		10	%
Ripple & Noise	BW=DC To 20MHz		100	mVp-p
Transient response setting time	50% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		75		KHz
Operating Temperature		-40		+85	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F@25℃	3500000			Hours
Weight		2.8			g

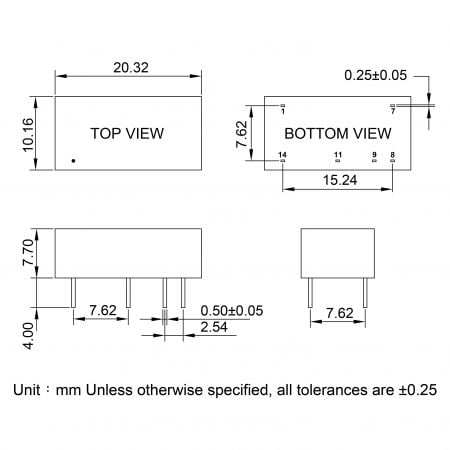

Dimensions		20.32 x 10.16 x 7.70			mm
