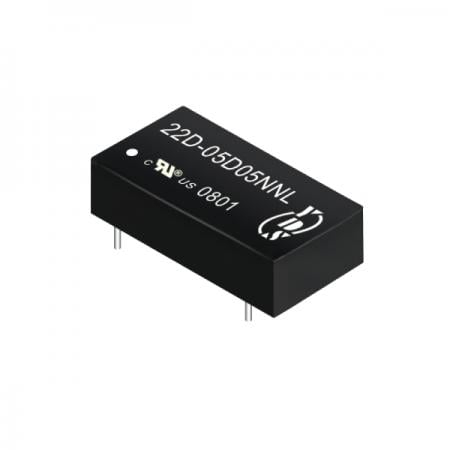

1W DIL14 Single/Dual Output DC-DC Converter, 1KV Isolation

5 0 Reviews

1W DIL14 Single/Dual Output DC-DC Converter, 1KV Isolation

22D Series

DIL24 DC to DC Converter, Single & Dual Output For Industry and Instruments equipment

1 watt DC to DC power converter with 1KV isolation voltage 22D series is available in 14 pin DIL package. The operating ambient temperature is from -40°C to +85°C, and the efficiency is up to 85%. This series is an unregulated output type product, and the internal is SMD construction. It has industry standard pins and no external components required.

Economical board-mount DIL DC-DC converters with unregulated and isolated designs. RoHS/REACH compliant power solutions for industrial, sensing, electronic instruments, wireless networks, telecom, and measurement technology. Custom designs available.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

1W 1KV Isolation DIP DC-DC Converter(22D Series) | safety isolated DC to DC converter | industrial isolated DC-DC converter

Features

14PIN DIL package.
High efficiency up to 85%.
Internal SMD construction.
Unregulated output types.
No external component required.
Operating temperature:-40°C to +85°C.
Industry standard pinout.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Output Voltage	Output Current	Efficiency	Package Style	Recognized By UL 60950-1
Part Number	Vdc	mA	%TYP
22D-XXS03NNL	3.3	303	70	1	22D-05D05NNL 22D-05D12NNL 22D-05D15NNL 22D-05D24NNL 22D-12D12NNL 22D-12D15NNL 22D-24D05NNL 22D-24D12NNL 22D-24D24NNL
22D-XXS05NNL	5	200	70	1
22D-XXS09NNL	9	112	75	1
22D-XXS12NNL	12	84	78	1
22D-XXS15NNL	15	67	80	1
22D-XXS24NNL	24	42	82	1
22D-XXD03NNL	± 3.3	± 150	70	1
22D-XXD05NNL	± 5	± 100	70	1
22D-XXD09NNL	± 9	± 56	75	1
22D-XXD12NNL	± 12	± 42	78	1
22D-XXD15NNL	± 15	± 34	80	1
22D-XXD24NNL	± 24	± 21	82	1
22D-XXS05N2NL	5	200	70	2
22D-XXS09N2NL	9	112	75	2
22D-XXS12N2NL	12	84	78	2
22D-XXS15N2NL	15	67	80	2
22D-XXS24N2NL	24	42	82	2
22D-XXD05N2NL	± 5	± 100	70	2
22D-XXD09N2NL	± 9	± 56	75	2
22D-XXD12N2NL	± 12	± 42	78	2
22D-XXD15N2NL	± 15	± 34	80	2
22D-XXD24N2NL	± 24	± 21	82	2

Note:
1.”XX” Is Input Voltage:03＝3.3Vdc,05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc.24=24Vdc, 48=48Vdc.
2. Over 48Vdc input voltage, using the 2nd package.
3. The input voltage increases, there will be an increase in efficiency.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo,Io Nom			± 10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	100% full load		± 5	%
Short Circuit Protection	Short Term		1	Sec
Line Regulation	For 1.0% of Vin	1.2		%
Load Regulation	3.3V,5V (10% To 100% F.L)		15	%
Load Regulation	9V,12V,15V,24V (10% To 100% F.L)		10	%
Ripple & Noise	BW=DC To 20MHz		100	mVp-p
Transient response setting time	50% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F@25℃	3500000			Hours
Weight	Package 1 or Package 2	2.3 or 2.8			g

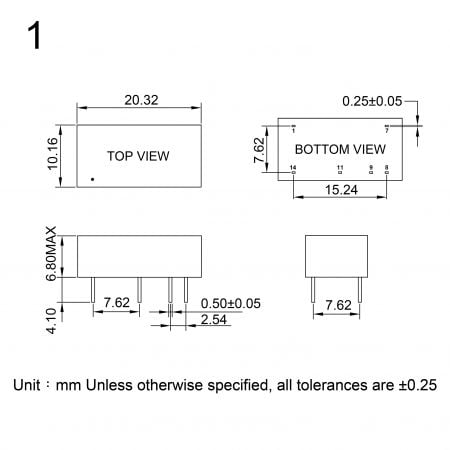

Dimensions	Package 1	20.32 x 10.16 x 6.80			mm

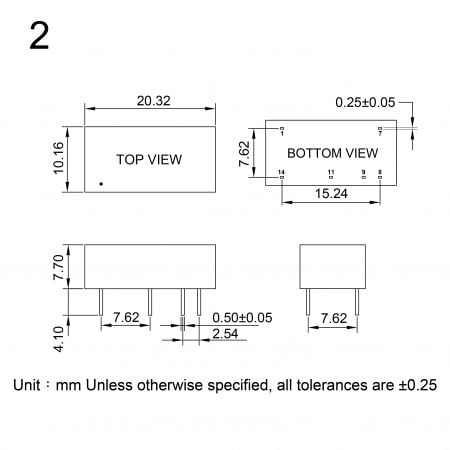

Dimensions	Package 2	20.32 x 10.16 x 7.70			mm
