DC-DC Converter, Open Frame, Non-Isolated, Economical Single Output

5 0 Reviews

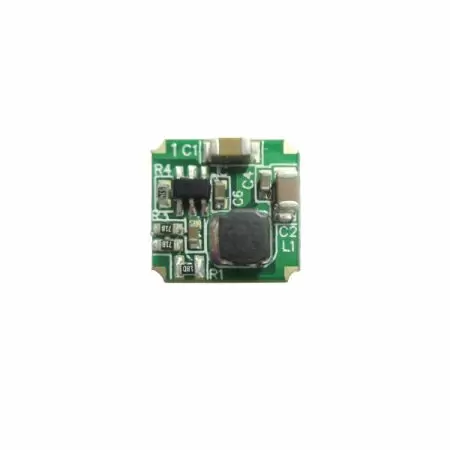

DC-DC Converter, Open Frame, Non-isolated, Economical Single Output

01DS-500 Series

Open Frame DC to DC Power Supply For Economical applications

Non-isolated Open Frame DC-DC converter. No-load input current as low as 0.2mA. The operating environment temperature ranges is from -40°C to +85°C. Efficiency up to 95%, no need for heatsink. The product has short circuit protection.

Our SMT non-isolated DC-DC converter is the perfect Compact DC-DC converter for industrial and 3C electronics. Featuring a Wide Input DC-DC Converter range and high-efficiency Switching regulator technology, this POL converter and Non-isolated DC-DC converter ensures stable power in a space-saving design.

The DC-DC power converters of Yuan Dean are all RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

Non-isolated Open Frame DC-DC Converters(01DS-500 Series) | Economical DC to DC Converter | Regulated DC-DC Module

Features

Economical open frame power supply.
Efficiency up to 95%, Non isolated, no need for heatsinks.
Operating temperature from -40°C to +85°C.
No-load input current as low as 0.2mA.
Short circuit protection.

Applications

General Industrial.
Instruments.
Sensing Equipment.
E-Bike.
Customized.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Range	Output Voltage	Output Current	Efficiency		Capacitive Load
Part Number	Vdc	Vdc	mA	Min. Vin (%)	Max. Vin (%)	μF max
01DS-3R3-500	4.75-36	3.3	500	85	76	680
01DS-05-500	6.5-36	5	500	90	81	680
01DS-6R5-500	8-36	6.5	500	91	83	680
01DS-09-500	12-36	9	500	93	87	680
01DS-12-500	15-36	12	500	94	88	680
01DS-15-500	19-36	15	500	95	90	680

Note:
For input voltage exceeding 30 VDC, an input electrolytic capacitor of 22uF/50V is required to prevent the module from being damaged by voltage.

Input Specifications

Parameters	Conditions	Typ	Max	Units
No-load Input Current		0.2	2	mA
Reverse Polarity at Input	Avoid / Not protected
Input Filter	Capacitance filter

Output Specifications

Parameters	Conditions		Typ	Max	Units
Voltage Tolerance	Full load, input voltage range	3.3 VDC output	± 2	± 4	%
Voltage Tolerance	Full load, input voltage range	Others	± 2	± 3	%
Short Circuit Protection	Continuous, automatic recovery
Line Regulation	Full load, input voltage range			0.5	%
Load Regulation	10% To 100% F.L.			1.0	%
Ripple & Noise (without Output Capacitor)	BW = DC To 20MHz			100	mVp-p
Temperature Coefficient	Full load		± 0.02		%/°C
Transient response setting time	50% load step change		250		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Switching Frequency			1.2		KHz
Operating Temperature		-40		+85	°C
Storage Temperature		-55		+125	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Weight			0.75		g

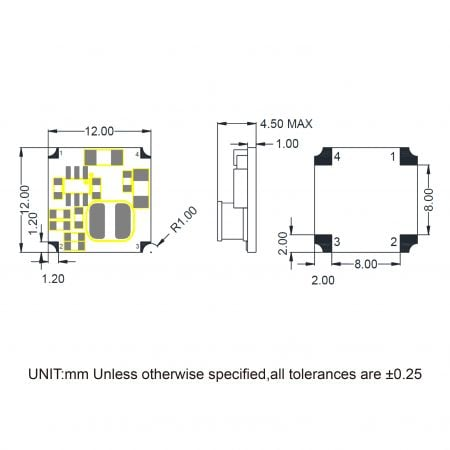

Dimensions		12 x 12 x 4.5			mm
MTBF (+25°C)	using MIL-HDBK 217F	2000 x 10³			hours
