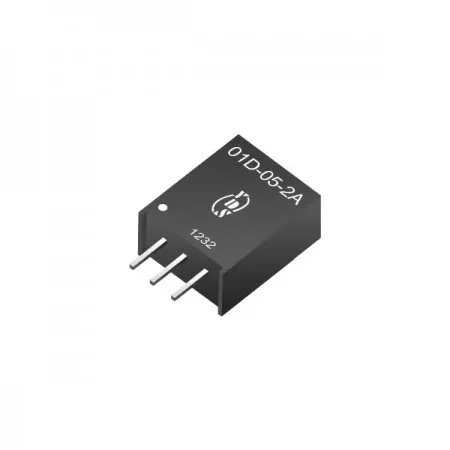

DC to DC Power Converter 3.6–30W for Energy Systems and Battery Management
The 01D-2A series non-isolated POL DC-DC converter delivers 3.6–30W output power with a wide 4.75–36VDC input range. With efficiency up to 96% and an operating temperature of -40°C to +82°C, it ensures stable performance in demanding environments. The pin layout is compatible with LM78XX regulators, making it a compact and reliable choice for energy-related systems.
As a leading DC-DC converter manufacturer, we offer the High Efficiency DC-DC Converter series ideal for precision devices. Our PCB mount DC-DC converter and Compact DC-DC converter designs save critical board space while maintaining peak performance. Whether you need a high-speed Switching regulator or a cost-effective Non-isolated DC-DC converter, our solutions ensure stable power delivery for precision systems.
All Yuan Dean DC-DC converters are RoHS-compliant, customizable, and supported by a 3-year warranty. OEM/ODM requirements are welcome.
| Quantity: | |
|---|---|
| Part Number | Input Range | Output Voltage | Output Current | Efficiency | |
|---|---|---|---|---|---|
| Vdc | Vdc | mA | Min. Vin (%) | Max. Vin (%) | |
| 01D-1R8-2A | 4.75-36 | 1.8 | 2000 | 89 | 80 |
| 01D-2R5-2A | 4.75-36 | 2.5 | 2000 | 90 | 82 |
| 01D-3R3-2A | 4.75-36 | 3.3 | 2000 | 90 | 84 |
| 01D-05-2A | 6.5-36 | 5.0 | 2000 | 93 | 89 |
| 01D-6R5-2A | 9.0-36 | 6.5 | 2000 | 93 | 91 |
| 01D-09-2A | 12-36 | 9.0 | 2000 | 94 | 90 |
| 01D-12-2A | 15-36 | 12 | 2000 | 95 | 93 |
| 01D-15-2A | 18-36 | 15 | 2000 | 96 | 94 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Input Voltage Range | See table | 4.75 | 24 | 36 | V |
| Internal Input Filter | Capacitors | 10 | uF | ||
| No Load Input Current | Vin = 24V | 15 | 20 | mA |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ± 3 | % | |||
| Short Circuit Protection | Hiccup, automatic recovery | ||||
| Line Regulation | Vin = min to max at full load | ± 0.5 | % | ||
| Load Regulation | 10% To 100% F.L | ± 0.5 | % | ||
| Current Limit | Duty = 40% | 325 | % | ||
| Ripple & Noise (without Output Capacitor) | 100% F.L BW = 20MHz | 100 | mVp-p | ||
| Transient response setting time | 25% load step change | 350 | us | ||
| Capacitive load | ESR > 1mohm | 900 | uF |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | 500 | KHz | |||
| Operating Temperature | With derating | -40 | +82 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Temperature Coefficient | 100% Load | ±0.03 | %/°C | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case material | Non-Conductive Black Plastic | ||||
| Weight | 4.0 | g | |||

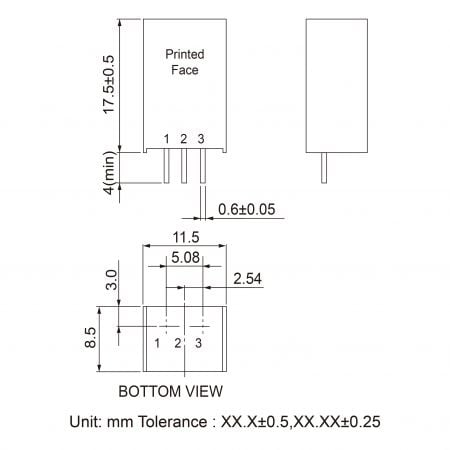

| Dimensions | 11.5 x 8.5 x 17.5 | mm | |||
| MTBF (+25°C) | using MIL-HDBK 217F | 1630 x 103 | hours | ||
