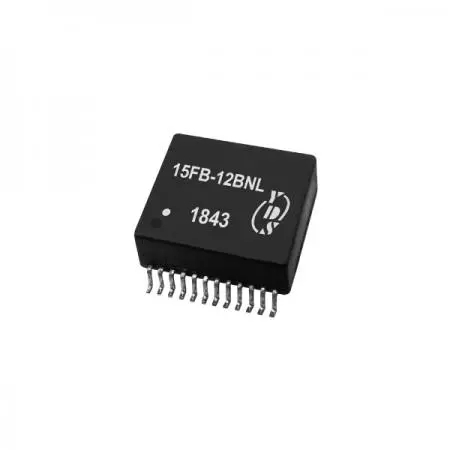

Lan Filter, 2.5G Base-T Support PoE&PoE+&PoE++ Function For Internet and telecom equipment
PoE/PoE+ /PoE++ applications 2.5G Base-T SMD package LAN filter. PoE 2.5G series is designed for long haul Gigabit Ethernet 2.5G Base-T, full duplex applications. It supports 4 pairs of category 5 UTP cable. This LAN filter compliants with IEEE 802.3an, IEEE 802.3af standards (350mA), IEEE 802.3at standards (720mA) and IEEE 802.3bt standards (1000mA). This product has passed UL 60950-1 safety certification.
Our Industrial Grade 2.5G Ethernet Filter is a PoE++ 2.5G Magnetic Integrated Module designed for modern computer equipment and industrial control. Featuring a 2.5GbE Ethernet Filter with PoE++ in a SMD 2.5G LAN Filter package, this Customizable 2.5G LAN Magnetics serves as an IEEE 802.3af&at&bt LAN Filter. As a UL 60950-1 Certified LAN Filter and RoHS Compliant LAN Filter, this Surface Mount Ethernet Transformer PoE++ provides reliable 2.5G Base-T Magnetics for PoE++ and functions as a Low Cost Gigabit LAN Transformer and REACH Certified Ethernet Filter for AC main power, fire systems, and electronic instruments.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Insertion Loss (dB max) | Returm Loss (dB min @100Ω) | CDMR (dB TYP) | Crosstalk (dB TYP) | CMR (dB TYP) | POE Current | Hipot (Vrms min) | ||
|---|---|---|---|---|---|---|---|---|---|
| 1-50 MHz | 50-125 MHz | 1-40 MHz | 40-200 MHz | 10-125 MHz | 1-125 MHz | 30-200 MHz | |||

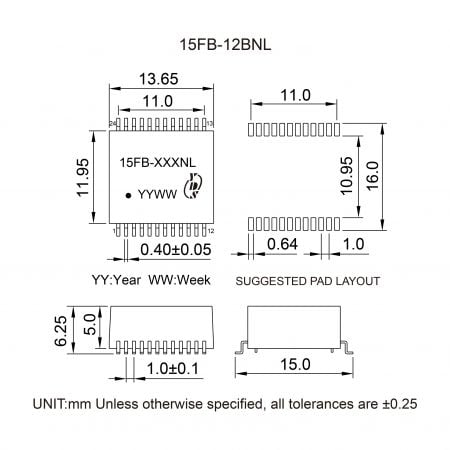

| 15FB-12BNL | -0.5 | -1.0 | -20 | -20+15log(f/40MHz) | -45+f/35 | -39 | -30 | 350mA | 1500 |

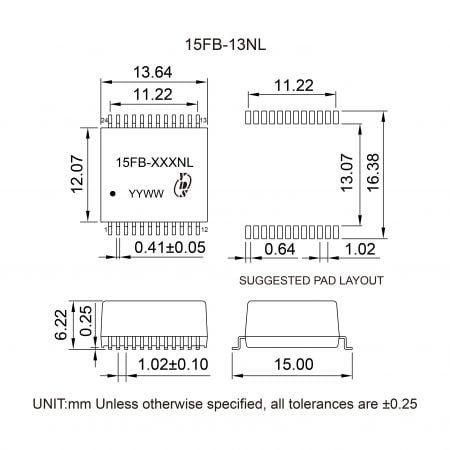

| 15FB-13NL | -0.5 | -1.0 | -20 | -20+15log(f/40MHz) | -45+f/35 | -39 | -30 | 720mA | 1500 |

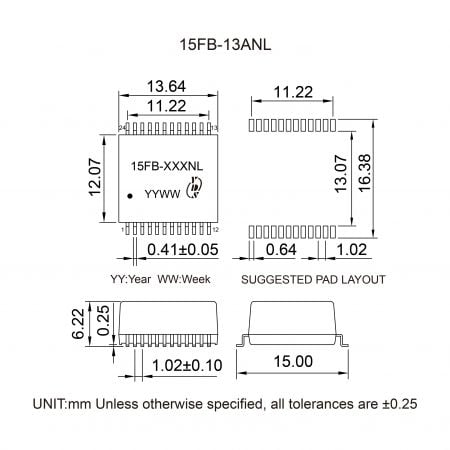

| 15FB-13ANL | -0.5 | -1.0 | -20 | -20+15log(f/40MHz) | -45+f/35 | -39 | -30 | 1A | 1500 |
