LAN Filter, Ethernet Magnetics Module with Integrated TX/RX Isolation Transformers and Common-Mode Chokes For telecom and Internet equipment

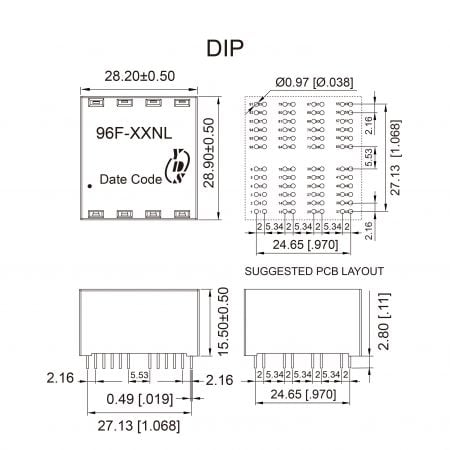

96 Pin DIP 100/1000 Base-T quad port LAN filter. 96F series complies with 802.3 and ANSI X3.263 standards including 350uH OCL 8mA bias current.
As a professional manufacturer with a flair for developing new technologies, we deliver high reliability lan magnetics optimized for network and aviation equipment. Our ethernet transformer module and 4 port ethernet magnetics provide exceptional signal integrity, while the high isolation lan filter for industrial switches and pcb mount lan filter module ensure stability in wireless and VoIP devices. Whether you need discrete ethernet magnetics for ethernet transformer replacement or a specific ethernet magnetics pcb design, we excel as a custom lan magnetics module manufacturer, providing the perfect ethernet isolation transformer module and ethernet magnetics module for switch pcb for musical instruments and telecom systems.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Turns Ratio (±5%) | LK (uH MAX) | Cw/w (pF MAX) | D.C.R (ΩMAX) | Insertion Loss (dB MAX) |
|---|---|---|---|---|---|
| TX | 100KHz/ 0.2V | 100KHz/ 0.2V | ------ | 1-100 MHz | |

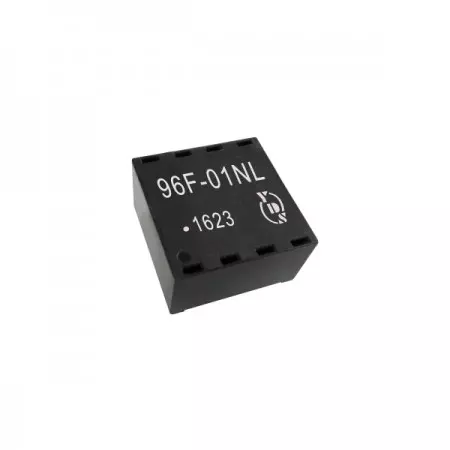

| 96F-01NL | 1CT:1CT | 0.5 | 35 | 1.4 | -1.0 |
| Part Number | Return Loss (dB MIN) | Crosstalk (dB MIN) | Hipot Vrms MIN | ||||
|---|---|---|---|---|---|---|---|
| 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 80-100 MHz | 1-100 MHz | ||
| 96F-01NL | -18 | -14.4 | -13.1 | -12 | -10 | -30 | 1500 |
