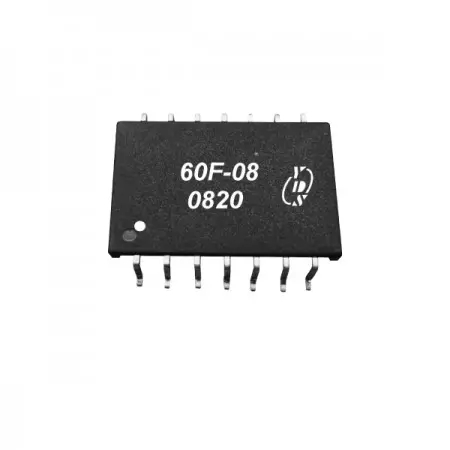

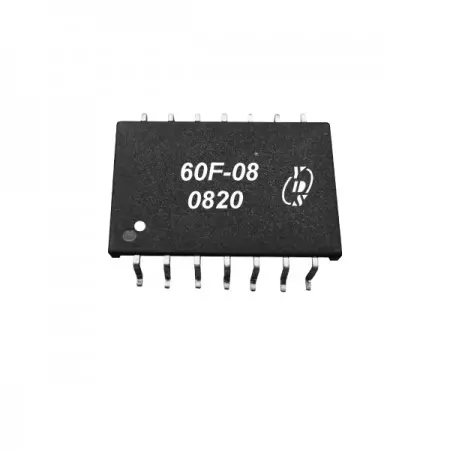

Low Profile 10Base-T Ethernet Filter | 1.5KV Isolated | 14-Pin SOIC Magnetic Transformer | Surface Mount Module For Internet and telecom equipment

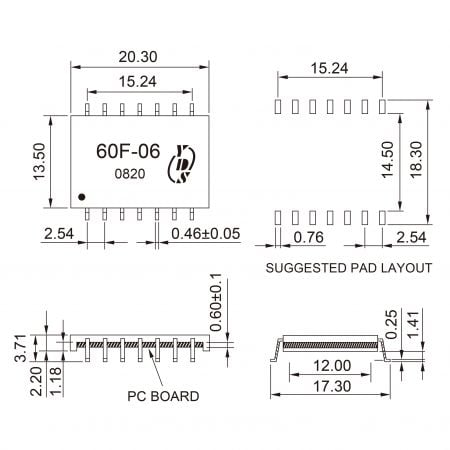

10 Base-T LAN filter with a surface mount package. The height of the product is only 3.71mm. Compliant with the IEEE 802.3i specification, the design include impedance matching resistor networks, receive and transmit isolation transformers and common mode chokes for improved EMI suppression 235°C peak IR Reflow temperature rating. The operating temperature is from 0°C to +70°C, minimum interwinding breakdown voltage of 1500 Vrms. The 60F series has passed the UL 60950-1 safety certification.
Optimizing computer equipment and industrial control systems requires high-efficiency components like our Compact LAN Magnetics. As a professional 10 Base-T LAN Filter Manufacturer, we provide the Low profile LAN Filter and SMD 10 Base-T LAN Filter for space-sensitive networking devices. This Industrial PCB Mount LAN Filter is a UL 60950-1 Certified LAN Filter, ensuring superior safety as a PCB Mount LAN Filter SMD or reliable Ethernet Filter. Whether you need Custom LAN Filter Solutions for telecommunications or a standardized Compact LAN Magnetics module, our designs ensure stable signal integrity in every application.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Insertion Loss 1 to 10 MHz (dB TYP) | Attenuation (XMIT) (dB MIN) | Return Loss (dB MIN) | Crosstalk (dB MIN) | Common Mode Rejection (dB MIN) | Hipot (Vrms) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 MHz | 40 MHz | 100 MHz | 1 to 10 MHz | 1-10 MHz | 10 MHz | 50 MHz | 100 MHz | 200 MHz | @60Hz | ||
| 60F-01NL | -5.0 | -30 | -35 | -40 | -18 | -40 | -60 | -45 | -45 | -30 | 1500 |
| 60F-02NL | -5.0 | -30 | -35 | -40 | -18 | -40 | -60 | -40 | -35 | -30 | 1500 |
| 60F-03NL | -5.0 | -30 | -35 | -40 | -18 | -40 | -60 | -45 | -35 | -30 | 1500 |
| 60F-04NL | -5.0 | -30 | -35 | -40 | -18 | -40 | -60 | -40 | -35 | -30 | 1500 |
| 60F-05NL | -5.0 | -30 | -35 | -40 | -18 | -40 | -60 | -45 | -35 | -30 | 1500 |
| 60F-06NL | -5.0 | -30 | -35 | -40 | -18 | -40 | -60 | -40 | -35 | -30 | 1500 |
