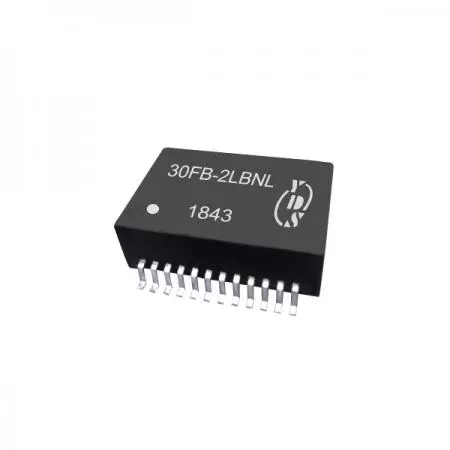

5GBASE-T Ethernet Filter Module | Single Port 4-Pair UTP Cat5 | 24-Pin SMD Magnetic Transformer For industrial control and Internet equipment
5G Base-T 24 pin SMD LAN filter is designed for long haul Gigabit Ethernet 5G Base-T, full duplex applications. 5G series supports 4 pairs of category 5 UTP cable and compliants with IEEE 802.3an standard. This products has passed UL 60950-1 safety certification.
As a professional telecom magnetics manufacturer, we empower computer equipment and networking devices with our 5G Base-T Ethernet Magnetics series. This High Reliability Ethernet Magnetics range features Integrated 5G Base-T Magnetics and SMD LAN Transformer technology, providing a robust 5G Base-T Magnetic Module for IoT and industrial control. Our UL 60950-1 Certified LAN Filter and Broadband LAN Filter for 5G function as a Safety Certified 5G Ethernet Filter for telecommunications. Whether you require a Surface Mount Isolation Transformer, Custom LAN Filter Design, or specialized OEM 5G Ethernet Magnetics and Custom Ethernet Magnetics, our Industrial Ethernet Transformer ensures peak performance.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Insertion Loss (dB max) | Return Loss (dB min @100 Ω) | DCMR (dB min) | Crosstalk (dB min) | Hipot (Vrms Min) | |||
|---|---|---|---|---|---|---|---|---|
| 1-100 MHz | 100-250 MHz | 1-40 MHz | 40-250 MHz | 1-30 MHz | 30-250 MHz | 1-250 MHz | ||
| 30FB-2LBNL | -1.0 | -2.0 | -18 | -16+10log10(f/40MHz) | -48 | -44+19.2log10(f/50MHz) | -43.1+20log10(f/100MHz) | 1500 |
