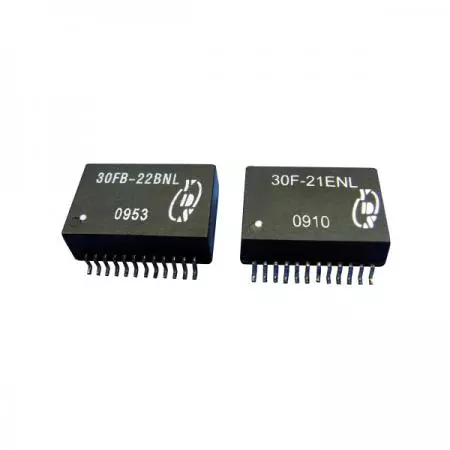

10/100/1000 Base-T SOIC24 Ethernet Magnetics Module For Internet and telecom equipment

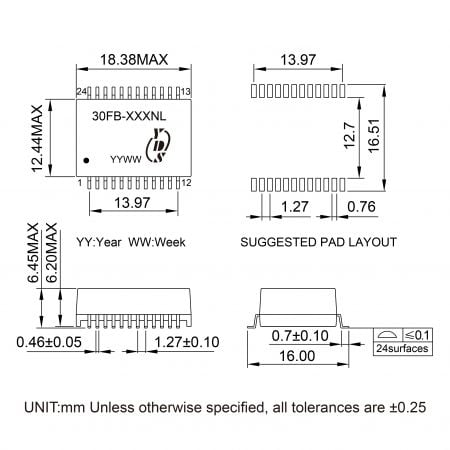

The 30FB-2X series is a 10/100/1000 Base-T ethernet filter in a 24PIN SOIC package. Designed for long-haul Gigabit Ethernet full-duplex applications, this ethernet filter supports 4 pairs of Category 5 UTP cable and complies with IEEE 802.3ab standards. It offers isolation, low common mode emissions, and has passed UL 60950-1 safety certification.
Our company offers the 30FB-2X series, an Industrial Grade LAN Filter and a Cost-effective Gigabit LAN Solution. This Gigabit LAN Transformer Module features a 10/100/1000 Base-T Transformer and SMD Gigabit Magnetics, serving as a high-performance Gigabit Ethernet LAN Filter. As a UL 60950-1 Certified LAN Filter and RoHS/REACH Compliant Ethernet Filter, it is perfect for network equipment, telecom devices, wireless networks, VoIP equipment, aviation instruments, and musical instruments.
Yuan Dean’s ethernet filter products are RoHS-compliant and customizable to meet specific application needs.
OEM/ODM requirements are welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Insertion Loss (dB MAX) | Return Loss (dB min @100 Ω) | Differential to Common Mode (dB min) | Crosstalk (dB TYP) | Hipot (Vrms min) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 30FB-21NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |
| 30FB-22NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |
