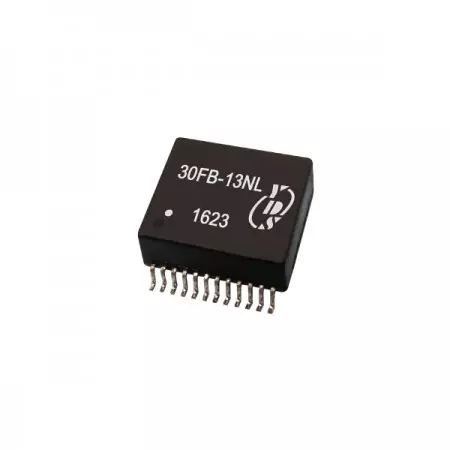

2.5Gbe Ethernet Magnetics Module, SMD24 Package For Internet and telecom equipment
2.5G Base-T LAN filter features 24 pin SMD package. 2.5G series is designed for long haul Gigabit Ethernet 2.5G Base-T, full duplex applications. It supports 4 pairs of category 5 UTP cable and compliant with IEEE 802.3an standard. This products has passed UL 60950-1 safety certification.
High-performance 2.5G Base-T LAN filters and 2.5GbE magnetic transformers. These compact LAN magnetics and surface mount multi-gig magnetics provide superior Ethernet isolation, making them ideal for integrated magnetics in industrial, computing, wireless networking, and telecom applications.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Insertion Loss (dB max) | Return Loss (dB min @100 Ω) | Common to Differential Mode Rejection (dB TYP) | Crosstalk (dB TYP) | Common to Mode Rejection (dB TYP) | Hipot Vrms Min | ||
|---|---|---|---|---|---|---|---|---|
| 1-50 MHz | 50-125 MHz | 1-40 MHz | 40-200 MHz | 10-125 MHz | 1-125 MHz | 30-200 MHz | ||
| 30FB-13NL | -0.5 | -1.0 | -20 | -20+15log(f/40MHz) | -45+f/35 | -39 | -30 | 1500 |
