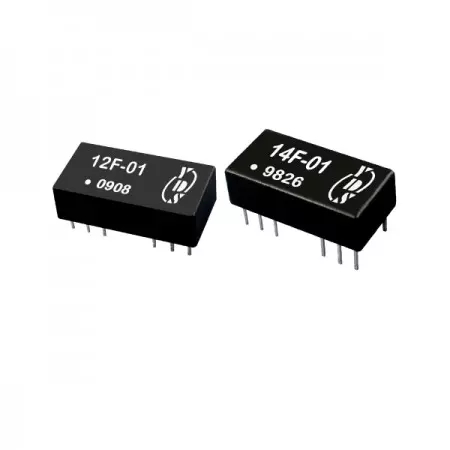

Ethernet Magnetics Module 10 Base-T Through Hole Type For MAUs, hubs, and motherboard applications
10 Base-T through-hole LAN filters can be used in MAU, hub and motherboard applications. 12F &14F series has high performance for maximum EMI suppression. Minimum 1500 Vrms isolation, and compatibility with multiple 10 Base-T chips.
RoHS Certified LAN Filters and compact LAN magnetics in PCB mount DIP packages. These 10 Base-T LAN filters are ideal for IoT devices, aerospace, networking, telecom/datacom, VoIP equipment, and musical instruments.
The LAN filter products of Yuan Dean are RoHS compliant and can be customized.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Package Type (Pins) | Insertion Loss 1 to 10 MHz (dB max) | Attenuation (dB MIN) | Return Loss 1 to 10MHz 100Ω±15Ω (dB MIN) | Cross talk 1 to 30 MHz (dB MIN) | Common Mode Rejection(dB MIN) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 30-50 MHz | 50-100MHz | 50MHz | 100MHz | |||||||
| TX | RX | TX | RX | |||||||
| 12F-01NL | DIL(16) | -1.0 | -30 | -15 | -35 | -20 | -15 | -30 | -35 | -30 |
| 14F-01NL | DIL(16) | -1.0 | -30 | -15 | -35 | -20 | -15 | -30 | -35 | -30 |
