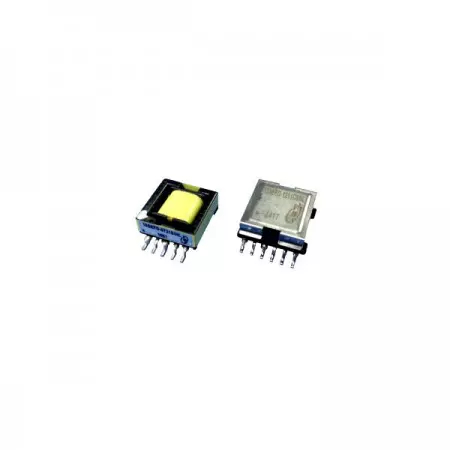

High Frequency Transformer, PoE Up To 60W, SMD With EFD15 Platforms-SMT

5 0 Reviews

High Frequency Transformer, PoE up to 60W, SMD with EFD15 platforms-SMT

15SEFD Series

SMD10/SMD12 High Frequency Transformer For PoE applications

High frequency wire wound transformer with EFD15 platforms-SMT. The power range of 15SEFD series is Up to 60W. Maximum height is 10mm. It can be used in PoE Applications.

Yuan Dean can provide high efficiency production solutions and customized products.

High-quality EFD series SMT transformers and low profile EFD15 transformers. As high frequency wire wound transformers with a compact EFD transformer design, these low core loss ferrite core SMD transformers are ideal for industrial inverter magnetic components, computer, networking, and telecom equipment.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:
Inquire Add to Basket

PoE SMD High Frequency Wire Wound Transformer(15SEFD Series) | flyback transformer efd | pcb mount transformer SMD
Features
  • EFD15 Platforms-SMT.
  • Power range: Up to 60W
  • Height: 10mm MAX
  • Footprint: 22.5mm x 17.5mm
  • Topology: forward and flyback and so on
  • Custom designs available.
Applications
  • computer equipment.
  • Internet equipment.
  • AC main power supply system.
  • industrial control.
  • telecom equipment.
Specification
  • Operating temperature range: -40°C to +85°C
  • Storage temperature range: -55°C to +125°C
Specification
Part Number Input Output Aux/bias Oper. Freq Turns ratio
(KHZ) Pri:sec pri:sec:
aux/bias
15SEFD-0461CGNL 9~42V 12V,0.3A
12V,0.3A
12V,0.3A		 12V,
0.3A		 300 1:1.43
1:1.43
1:1.43		 1:1.43:1.43
15SEFD-0501CHNL 9~40V 12V/0.25A
12V/0.25A
7.5V/0.7A		 7.5V,
0.2A		 300 1:1.44
1:1.44
1:0.89		 1:1.44:0.89
15SEFD-0721BINL 9~36V 5V,1.4A
3.3V,2.4A		 13V,
0.05A		 250 1:0.5
1:0.4		 1:0.5:1.2
15SEFD-0801CDNL 12~57V 5V,1.9A
12V,1A		 - 200 1:0.75
1:1.58		 -
15SEFD-1001CXNL 12~48V 48V,0.35A - - - 1:5:1.13
15SEFD-1011APNL 29.5~60V 3.3V,0.75A
3.3V,0.75A
3.3V,0.75A		 11V,
0.1A		 250 1:0.176
1:0.176
1:0.176		 1:0.176:0.529
15SEFD-1011BCNL 28~59V 5V,2.4A 12V,
15mA		 250 - 5:1:2.5
15SEFD-1011CPNL 29.5~60V 12V,0.3A
12V,0.3A		 11V,
0.1A		 250 1:0.588
1:0.588		 1:0.588:0.529
15SEFD-1011DCNL 36~57V 12V,1.5A 12V,
10mA		 - - 1.8:1:1
15SEFD-1012APNL 29.5~60V 5V,0.5A
5V,0.5A
5V,0.5A		 11V,
0.1A		 250 1:0.265
1:0.265
1:0.265		 1:0.265:0.529
15SEFD-1211APNL 36~57V 5V,0.9A
5V,0.9A
5V,0.9A		 5V,
50mA		 - 1:0.14
1:0.14
1:0.14		 1:0.14:0.14
15SEFD-1211CSNL 33~57V 3.3V,3A
15V,0.1A
-15,0.1A		 11V,
0.1A		 200~500 1:0.125
1:0.5
1:0.5		 1:0.125:0.375
15SEFD-1213GNL 30~60V 12V,1.0A 15V,
20mA		 275 - 1:0.457:0.571
15SEFD-1311BANL 34~57V 24V,200mA
5V,1A		 11.6V - 1:0.711
1:0.2		 1:0.711:0.465
15SEFD-1311DENL 48V 12V,2.5A 12V - - 2.86:1:1
15SEFD-1411FNL 35~56V 3.3V,1.2A
6V,0.5A
21V,0.035A		 12V 200 38:5
38:8
38:32		 38:5:28
15SEFD-1511ZNL 18~72V 5V,2A
7.5V,10mA		 10V,
20mA		 500 5:1
3.2:1		 1:0.2:0.44
15SEFD-1513ZNL 36~57V 5V,2A
7.5V,10mA		 10V,
20mA		 - 5:1
3.2:1		 1: 0.2:0.44
15SEFD-1514ZNL 24~57V 12V,0.9A
7.8V,20mA		 10V,
20mA		 - 2.24:1
3.36:1		 11:0.446:0.467
15SEFD-1611RNL 36~57V 3.3V,2A
12V,0.1A
12V,0.1A
5V,0.8A		 11V,
0.1A		 125 1:0.15
1:0.57
1:0.57
1:0.23		 1:0.15:0.4
15SEFD-1611ZNL 30~57V 5V,2A
7.5V,10mA		 10V,
15mA		 100 5:1
5:1.5		 5:1:2.2
15SEFD-1671ZNL 36~57V 12V,0.83A
6V,10mA		 12V,
20mA		 - 2:1
4:1		 1:0.5:0.5
15SEFD-1672ZNL 36~57V 12V,1.09A
6V,10mA		 10V,
20mA		 - 2:1
4:1 (HI-POT: 1500V)		 1:0.5:0.5
15SEFD-1673ZNL 36~57V 12V,1.09A
6V,10mA		 10V,
20mA		 - 2:1
4:1 (HI-POT: 1800V)		 1:0.5:0.5
15SEFD-1711CANL 28~60V 3.3V,4A - 275 1:0.29
1:0.24		 1:0.29:1.3
15SEFD-1711ZNL 36~57V 3.3V,3A
5.6V,10mA		 10V,
20mA		 125 6.5:1
3.7:1		 1:0.154:0.5
15SEFD-1712ZNL 18~72V 12V,1A
12V,1A
6V,10mA		 10V,
20mA		 500 2:1
2:1
4:1		 1:0.5:0.5
15SEFD-2011APNL 29.5~60V 3.3V,0.45A
3.3V,0.45A
3.3V,0.45A		 11V,
0.1A		 250 - 1:0.16:0.52
1:0.16:0.52
1:0.16:0.52
15SEFD-2011BBNL 36~75V 3.3V,5.7A
3.3V,5.7A
3.3V,5.7A		 30mA 300~400 9:3
9:3
9:3		 9:3:12
15SEFD-2501CGNL 18~90V 13V,0.2A
13V,0.2A
13V,0.2A		 13V/
0.6A		 300 1:0.78
1:0.78
1:0.78		 -
15SEFD-2511BBNL 36~75V 3.3V,7.5A
12V,30mA		 - 350 - 9:3:12
15SEFD-3501GNL 36~72V 12V,1.1A 12V,
20mA		 1:0.35:0.35
15SEFD-3701BDNL 11.6~19V.
6V		 6V,1.4A
6V,0.7A		 - 100 3:1
3:1		 -
15SEFD-3701GNL 36~72V 24V,0.54A 12V,
20mA		 - 1:0.67:0.33
15SEFD-4001ABNL 36~72V 3.3V,6A - 250 - 8:1:3.67
15SEFD-4001CCNL 10~57V 5V,2.6A 5V,
20mA		 - 1:0.36 1:0.36:0.43
15SEFD-5601DFNL 36V 14.5V,0.5A
18V,0.5A
-12V,0.5A
+8V,1A		 - - 1:0.4
1:0.5
1:0.33
1:0.22		 -
15SEFD-6001GNL 36~72V 12V,0.5A 12V,
20mA		 - - 1:0.35:0.35
15SEFD-6201MNL 33~57V 5V,1.5A
3.3V,2A
30V,0.05A		 12V,
20mA		 200 5.5:1.75
5.5:1.0
5.5:9.25		 5.5:1.75:3.75
15SEFD-6401BYNL 33~57V 5V,0.01
12V,0.83A		 10V,
0.02A		 200 1:0.17
1:0.45		 1:0.17:0.34
15SEFD-7001BMNL 30~60V 3.3V,6A
5.5V		 10V 250 1:0.147
1:0.235		 1:0.147:0.412
15SEFD-9501CWNL 10~57V 5V,5A 12V,
20mA		 250 1.25:1 1:0.8:2
Part Number L DCR Sch Mech
(Ohms MAX)
(uH) Pri sec Aux / bia
15SEFD-0461CGNL 4.6 ± 12% 0.01 0.173
0.173
0.173		 0.095 CG S1
15SEFD-0501CHNL 5 ± 10% 0.03 0.23
0.23
0.06		 0.18 CH S1
15SEFD-0721BINL 7.2 ± 5% 0.027 0.043
0.022		 0.24 BI S2
15SEFD-0801CDNL 8.04 ± 10% 0.05 0.05
0.15		 - CD S1
15SEFD-1001CXNL 10 ± 12% 0.027 0.8 0.22 CX S1
15SEFD-1011APNL 100 ± 10% 0.275 0.03
0.03
0.03		 1.00 AP S1
15SEFD-1011BCNL 100.7 ± 8% 0.485 0.025 1.15 BC S1
15SEFD-1011CPNL 100 ± 10% 0.275 0.25 1.00 CP S1
15SEFD-1011DCNL 100 ± 10% 0.22 0.068 0.57 DC S1
15SEFD-1012APNL 100 ± 10% 0.275 0.095 1.00 AP S1
15SEFD-1211APNL 120 ± 10% 0.35 0.025
0.025
0.025		 0.19 AP S1
15SEFD-1211CSNL 115.0 ± 13% 0.25 0.007
0.65
0.65		 0.57 CS S1
15SEFD-1213GNL 117.5 ± 10% 0.201 0.06 0.335 G S1
15SEFD-1311BANL 125 ± 10% 0.3 0.42
0.02		 0.37 BA S1
15SEFD-1311DENL 132.8 ± 10% 0.73 0.033 0.36 DE S1
15SEFD-1411FNL 144 ± 10% 0.49 0.048
0.024
1.4		 1.5 F S2
15SEFD-1511ZNL 150 ± 10% 0.515 0.023
0.57		 0.88 Z S1
15SEFD-1513ZNL 150 ± 10% 0.52 0.0275
0.525		 0.77 Z S1
15SEFD-1514ZNL 150 ± 10% 0.515 0.11
0.57		 0.88 Z S1
15SEFD-1611RNL 160 ± 15% 0.62 0.015
1.1
1.1
0.24		 0.95 R S1
15SEFD-1611ZNL 157.5 ± 10% 0.5 0.025
0.76		 1.3 Z S1
15SEFD-1671ZNL 166.5 ± 10% 0.76 0.103
0.475		 1.1 Z S1
15SEFD-1672ZNL 166.5 ± 10% 0.76 0.101
0.5		 1.1 Z S1
15SEFD-1673ZNL 166.5 ± 10% 0.76 0.101
0.5		 1.1 Z S1
15SEFD-1711CANL 165MIN 0.07 0.011 1.29 CA S1
15SEFD-1711ZNL 166.5 ± 10% 0.735 0.0225
0.51		 0.985 Z S1
15SEFD-1712ZNL 166.5 ± 10% 0.76 0.26
0.26
0.5		 1.1 Z S1
15SEFD-2011APNL 200 ± 10% 0.5 0.07
0.07
0.07		 1.0 AP S1
15SEFD-2011BBNL 200-20%/+30% 0.1 0.006
0.006
0.006		 1.0 BB S1
15SEFD-2501CGNL 25 ± 10% 0.11 0.25
0.25
0.25		 0.1 CG S1
15SEFD-2511BBNL 250 ± 30% 0.087 0.0041 0.4 BB S1
15SEFD-3501GNL 35.0 ± 10% 0.095 0.017 0.15 G S1
15SEFD-3701BDNL 37.1 ± 10% 0.078 0.034
0.038		 - BD S1
15SEFD-3701GNL 37.0 ± 10% 0.086 0.049 0.37 G S1
15SEFD-4001ABNL 40 ± 13% 0.13 0.0035 0.315 AB S1
15SEFD-4001CCNL 40.0 ± 10% 0.14 0.024 0.23 CC S1
15SEFD-5601DFNL 56 ± 10% 0.16 0.12
0.16
0.11
0.045		 - DF S1
15SEFD-6001GNL 55 ± 10% 0.095 0.017 0.15 G S1
15SEFD-6201MNL 62.0 ± 12% 0.25 0.03
0.02
2.4		 0.4 M S1
15SEFD-6401BYNL 64 ±10% 0.32 0.33
0.08		 0.5 BY S2
15SEFD-7001BMNL 77.8 ± 10% 0.155 0.008
0.215		 0.382 BM S1
15SEFD-9501CWNL 95 ± 28% 0.014 0.015 0.5 CW S1
Certification

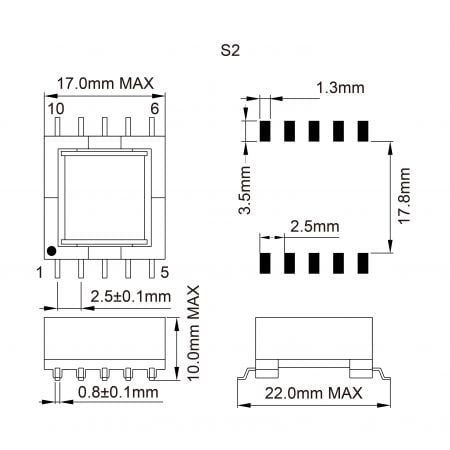

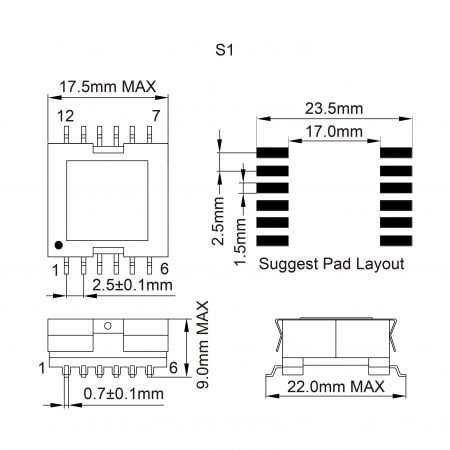

Mechanicals and Dimensions Related Products Files Download
