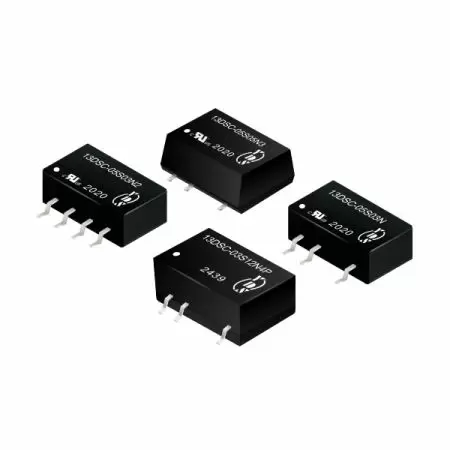

Isolated DC to DC Converter 1W SMD Package For Industry and Wireless Network equipment
14PIN SMD package 1W high efficient DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature range is from -40°C to +105°C. It has a high efficiency of up to 87%.
As a leading DC-DC converter manufacturer, we offer high-performance SMD DC-DC converter and board mount DC to DC converter solutions. Our products feature compact DC to DC converter designs and custom DC-DC converter design to fit industrial equipment, electronic instruments, wireless networks, and telecom/datacom. All are RoHS & REACH Compliant Power with a reliable SMD Power Solution.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) | Package Style |
|---|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | ||
| 13DSC-YYS03N*P(H3) | 3.3 | 303 | 76 | 2400 | 1/2/3/4 |
| 13DSC-YYS05N*P(H3) | 5 | 200 | 82 | 2400 | 1/2/3/4 |
| 13DSC-YYS09N*P(H3) | 9 | 112 | 83 | 1000 | 1/2/3/4 |
| 13DSC-YYS12N*P(H3) | 12 | 84 | 84 | 470 | 1/2/3/4 |
| 13DSC-YYS15N*P(H3) | 15 | 67 | 84 | 330 | 1/2/3/4 |
| 13DSC-YYS24N3P(H3) | 24 | 42 | 85 | 100 | 3/4 |
| 13DSC-XXS03N*P(H3) | 3.3 | 303 | 78 | 2400 | 1/2/3/4 |
| 13DSC-XXS05N*P(H3) | 5 | 200 | 82 | 2400 | 1/2/3/4 |
| 13DSC-XXS09N*P(H3) | 9 | 112 | 85 | 1000 | 1/2/3/4 |
| 13DSC-XXS12N*P(H3) | 12 | 84 | 85 | 680 | 1/2/3/4 |
| 13DSC-XXS15N*P(H3) | 15 | 67 | 87 | 330 | 1/2/3/4 |
| 13DSC-XXS24N3P(H3) | 24 | 42 | 85 | 220 | 3/4 |
Note：
1. No suffix is standard isolation (1.5KVDC) e.g, 13DSC-15S05NP,
*add suffix “H3 for 3KVDC isolation, e.g, 13DSC-12S09NPH3, 13DSC-12S12NPH3.
2. “ * ” = 1 or 2 or 3 or 4 for package，no suffix * package1，When * =2, package2，and so on,
e.g,13DSC-15S05NP, 13DSC-24S12N3PH3
When the I / O is equal to 24 V, package 1 and 2 disable.
3. ” YY ” is input voltage : 03=3.3Vdc,05=05Vdc, 09=9Vdc
e.g, 13DSC-03S05N3P, 13DSC-05S12NPH3, 13DSC-09S15N2P
4. ” XX ” is input voltage : 12=12Vdc,15=15Vdc, 24=24Vdc
e.g, 13DSC-12S05N3P, 13DSC-15S12NPH3, 13DSC-24S15N3P, 13DSC-24S12N4P
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom @Vin:3.3V,5V,9V | ± 10 | % | ||
| Vo,Io Nom @Vin:12V,15V,24V | ± 20 | % | |||
| Filter | Capacitor | ||||
| Surge Range (1 sec. max.) | 3.3VDC input | -0.7 | 5 | VDC | |
| 5VDC input | -0.7 | 9 | VDC | ||
| 9VDC input | -0.7 | 15 | VDC | ||
| 12VDC input | -0.7 | 18 | VDC | ||
| 15VDC input | -0.7 | 21 | VDC | ||
| 24VDC input | -0.7 | 30 | VDC | ||
| Reflected Ripple Current | 15 | mA |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ±5 | % | ||
| Short Circuit Protection | Continuous, self-recovery | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 10 | 15 | % | ||
| 9V(10% To 100% F.L) | 8 | 10 | % | ||
| 12V(10% To 100% F.L) | 7 | 10 | % | ||
| 15V(10% To 100% F.L) | 6 | 10 | % | ||
| 24V(10% To 100% F.L) | 5 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz @Vo:3.3V,5V,9V,12V,15V | 30 | 75 | mVp-p | |
| BW=DC To 20MHz @Vo:24V | 50 | 100 | mVp-p | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input @3.3V,5V Vin | 215/370 | KHz | ||
| Full load, nominal input @other Vin | 250 | KHz | |||
| Operation Temperature | -40 | +105 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 3500000 | Hours | ||
| Weight | Package 1/2/3/4 | 1.2/1.2/1.28/1.36 | g | ||

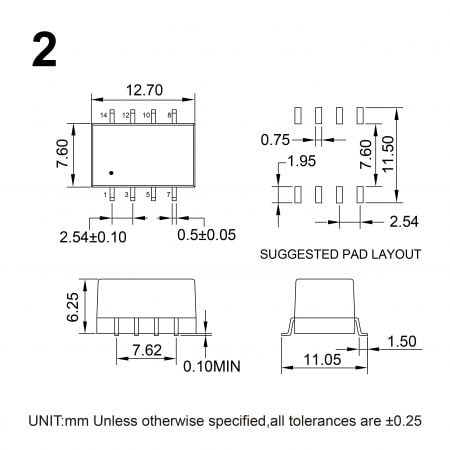

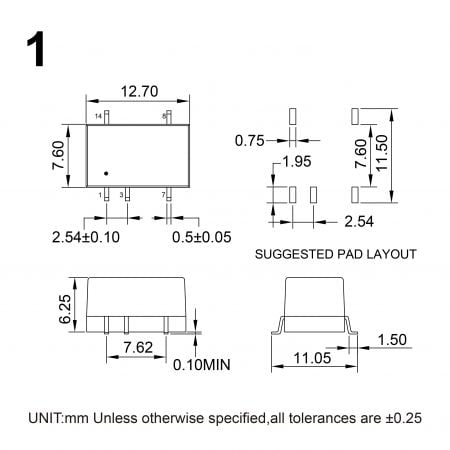

| Dimensions | Package 1/2 | 12.7x7.6x6.25 | mm | ||

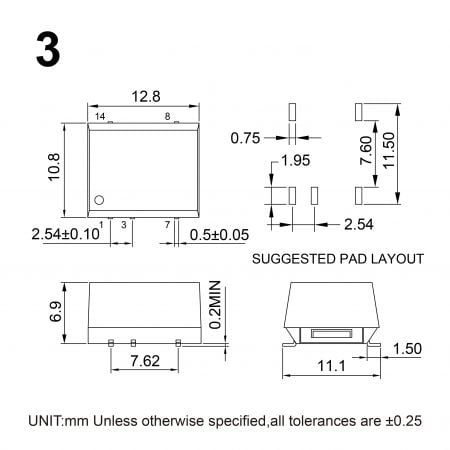

| Package 3 | 12.8x10.8x6.9 | mm | |||

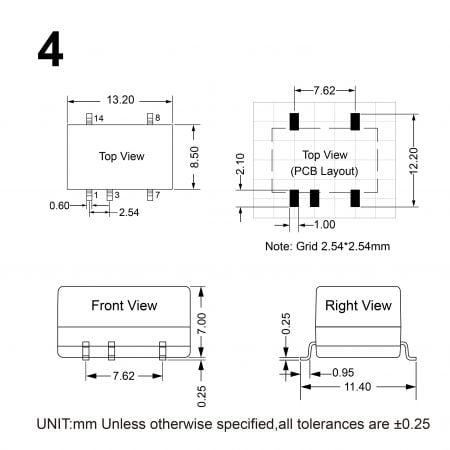

| Package 4 | 13.2x8.5x7.0 | mm | |||
