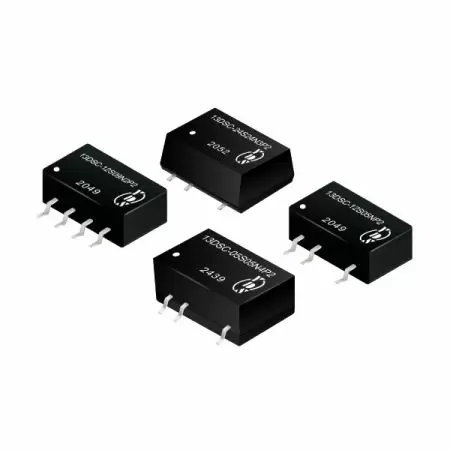

Isolated DC to DC Converter 2W SMD Package For Industry and Wireless Network equipment
2W high efficient 14PIN SMD package single output DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature is from -40°C to + 105°C. The efficiency is as high as 89%.
As a trusted DC to DC converter manufacturer, we offer compact DC-DC converter and PCB mount DC-DC converter solutions for industrial equipment, electronic instruments, wireless networks, and telecom/datacom. Our range includes SMD DC to DC converter, unregulated DC to DC converter, and cost-effective DC-DC converter options, all featuring RoHS & REACH Compliant Power.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) | Package Style |
|---|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | ||
| 13DSC-05S03NYP2(H3) | 3.3 | 600 | 78 | 2400 | 1/2/3/4 |
| 13DSC-05S05NYP2(H3) | 5 | 400 | 85 | 2400 | 1/2/3/4 |
| 13DSC-05S09NYP2(H3) | 9 | 223 | 87 | 820 | 1/2/3/4 |
| 13DSC-05S12NYP2(H3) | 12 | 167 | 87 | 470 | 1/2/3/4 |
| 13DSC-05S15NYP2(H3) | 15 | 133 | 88 | 220 | 1/2/3/4 |
| 13DSC-05S24N3P2(H3) | 24 | 84 | 89 | 100 | 3/4 |
| 13DSC-XXS03NYP2(H3) | 3.3 | 600 | 80 | 2400 | 1/2/3/4 |
| 13DSC-XXS05NYP2(H3) | 5 | 400 | 85 | 2400 | 1/2/3/4 |
| 13DSC-XXS09NYP2(H3) | 9 | 223 | 87 | 820 | 1/2/3/4 |
| 13DSC-XXS12NYP2(H3) | 12 | 167 | 87 | 470 | 1/2/3/4 |
| 13DSC-XXS15NYP2(H3) | 15 | 133 | 88 | 220 | 1/2/3/4 |
| 13DSC-XXS24N3P2(H3) | 24 | 84 | 89 | 100 | 3/4 |
Note：
1. No suffix is standard isolation (1.5KVDC) e.g, 13DSC-15S05NP2,
*add suffix “H3” for 3KVDC isolation, e.g, 13DSC-12S09NP2H3, 13DSC-12S12NP2H3.
2. Y = 1 or 2 or 3 or 4 for package, no suffix Y package1, when Y=2, package2, and so on,
e.g,13DSC-15S05NP2, 13DSC-24S12N3P2H3.
When the I / O is equal to 24 V, package 1 and 2 disable.
3. ”XX” is input voltage : 12=12Vdc,15=15Vdc, 24=24Vdc
e.g, 13DSC-12S05N3P2, 13DSC-15S12NP2H3, 13DSC-24S15N2P2
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor | ||||
| Surge Range (1 sec. max.) | 5VDC input | -0.7 | 9 | VDC | |
| 9VDC input | -0.7 | 15 | VDC | ||
| 12VDC input | -0.7 | 18 | VDC | ||
| 15VDC input | -0.7 | 21 | VDC | ||
| 24VDC input | -0.7 | 30 | VDC | ||
| Reflected Ripple Current | 15 | mA |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ±5 | % | ||
| Short Circuit Protection | Continuous, self-recovery | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 8 | 15 | % | ||
| 9V(10% To 100% F.L) | 6 | 10 | % | ||
| 12V(10% To 100% F.L) | 5 | 10 | % | ||
| 15V(10% To 100% F.L) | 4 | 10 | % | ||
| 24V(10% To 100% F.L) | 3 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 75 | 150 | mVp-p | |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input@5V Vin | 215 | KHz | ||
| Full load, nominal input@other Vin | 250 | KHz | |||
| Operation Temperature | -40 | +105 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 3500000 | Hours | ||
| Weight | Package 1/2/3/4 | 1.2/1.2/1.28/1.36 | g | ||

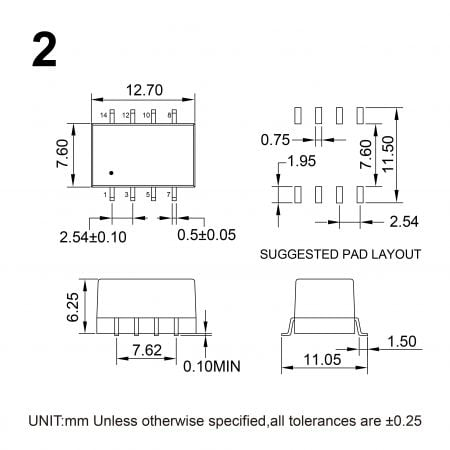

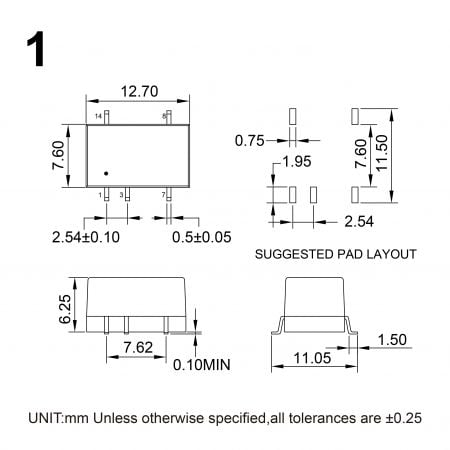

| Dimensions | Package 1/2 | 12.7x7.6x6.25 | mm | ||

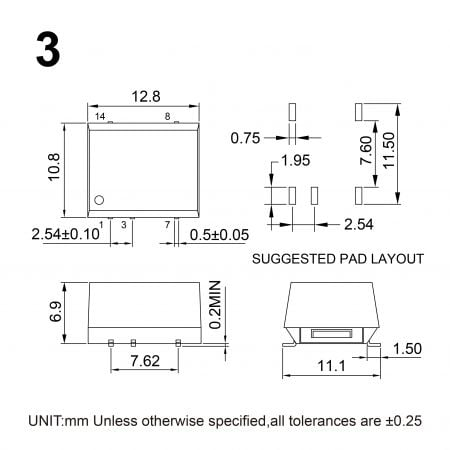

| Package 3 | 12.8x10.8x6.9 | mm | |||

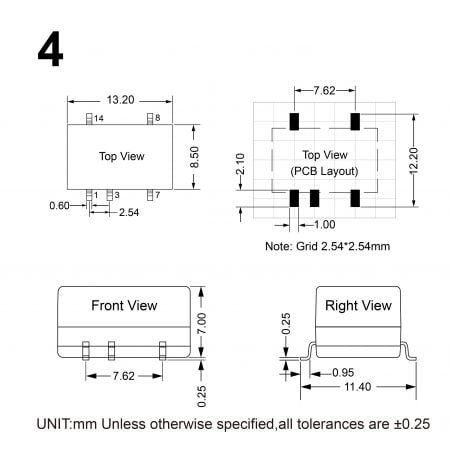

| Package 4 | 13.2x8.5x7.0 | mm | |||
