DC to DC Converter 2W Economic benefits For Industry and Telecom/Datacom equipment

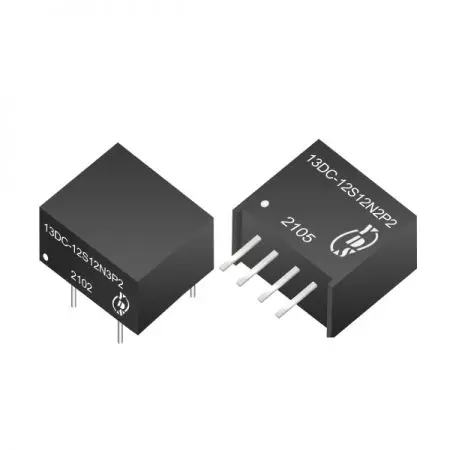

2W high efficient 4PIN SIP & 8PIN DIL package DC-DC converter is typically used in cost sensitive, general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1.5KVDC & 3KVDC isolation. The operating temperature is from -40°C to + 105°C. 13DC-2W series has a high efficiency of up to 89%.
High Efficiency Isolated DC-DC Converters from a leading manufacturer. Our UL certified, IEC 62368-1, and CB marked modules offer economical power solutions for industrial equipment, electronic instruments, wireless networks, and telecom.
Our DC-DC power converter products are RoHS compliant and can be customized, with a 3-year warranty on sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) | Package Style |
|---|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | ||
| 13DC-05S03NYP2(H3) | 3.3 | 600 | 78 | 2400 | 2/3 |
| 13DC-05S05NYP2(H3) | 5 | 400 | 84 | 2400 | 2/3 |
| 13DC-05S09NYP2(H3) | 9 | 223 | 85 | 820 | 2/3 |
| 13DC-05S12NYP2(H3) | 12 | 167 | 85 | 470 | 2/3 |
| 13DC-05S15NYP2(H3) | 15 | 133 | 86 | 220 | 2/3 |
| 13DC-05S24NYP2(H3) | 24 | 84 | 87 | 100 | 2/3 |
| 13DC-05D03N3P2(H3) | ± 3.3 | ± 300 | 78 | ± 1200 | 3 |
| 13DC-05D05N3P2(H3) | ± 5 | ± 200 | 82 | ± 1200 | 3 |
| 13DC-05D09N3P2(H3) | ± 9 | ± 112 | 85 | ± 330 | 3 |
| 13DC-05D12N3P2(H3) | ± 12 | ± 84 | 85 | ± 330 | 3 |
| 13DC-05D15N3P2(H3) | ± 15 | ± 67 | 87 | ± 220 | 3 |
| 13DC-05D24N3P2(H3) | ± 24 | ± 42 | 88 | ± 47 | 3 |
| 13DC-XXS03NYP2(H3) | 3.3 | 600 | 80 | 2400 | 2/3 |
| 13DC-XXS05NYP2(H3) | 5 | 400 | 85 | 2400 | 2/3 |
| 13DC-XXS09NYP2(H3) | 9 | 223 | 87 | 820 | 2/3 |
| 13DC-XXS12NYP2(H3) | 12 | 167 | 87 | 470 | 2/3 |
| 13DC-XXS15NYP2(H3) | 15 | 133 | 88 | 220 | 2/3 |
| 13DC-XXS24NYP2(H3) | 24 | 84 | 89 | 100 | 2/3 |
| 13DC-XXD03N3P2(H3) | ± 3.3 | ± 300 | 80 | ± 1200 | 3 |
| 13DC-XXD05N3P2(H3) | ± 5 | ± 200 | 82 | ± 1200 | 3 |
| 13DC-XXD09N3P2(H3) | ± 9 | ± 112 | 85 | ± 330 | 3 |
| 13DC-XXD12N3P2(H3) | ± 12 | ± 84 | 87 | ± 330 | 3 |
| 13DC-XXD15N3P2(H3) | ± 15 | ± 67 | 88 | ± 100 | 3 |
| 13DC-XXD24N3P2(H3) | ± 24 | ± 42 | 89 | ± 47 | 3 |
Note：
1. No suffix is standard isolation (1.5KVDC) e.g, 13DC-15S05N2P2, *add suffix “H3” for 3KVDC isolation, e.g, 13DC-12S05N2P2H3, 13DC-15S12N3P2H3,
2. Y = 2 or 3 for package,When Y=2,package2,and so on, e.g, 13DC-24D12N3P2H3
3. "XX" is Input Voltage : 12=12Vdc,15=15Vdc, 24=24Vdc e.g, 13DC-12S05N2P2, 13DC-15S12N2P2H3
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 8 | 15 | % | ||
| 9V(10% To 100% F.L) | 6 | 10 | % | ||
| 12V(10% To 100% F.L) | 5 | 10 | % | ||
| 15V(10% To 100% F.L) | 4 | 10 | % | ||
| 24V(10% To 100% F.L) | 3 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 75 | 150 | mVp-p | |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input @5V Vin | 215 | KHz | ||
| Full load, nominal input @other Vin | 250 | KHz | |||
| Operation Temperature | -40 | +105 | °C | ||
| Storage Temperature | -55 | +125 | °C | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25°C | 3500000 | Hours | ||
| Weight | Package 2/3 | 1.5/1.5 | g | ||

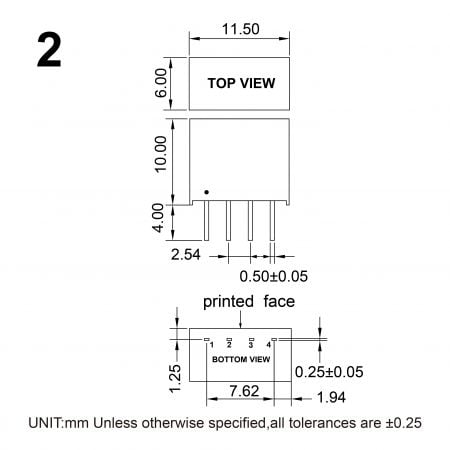

| Dimensions | Package 2 | 11.5x6.0x10.0 | mm | ||

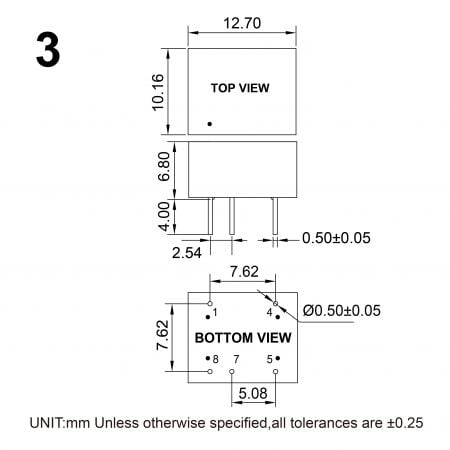

| Package 3 | 12.7x10.16x6.8 | mm | |||
