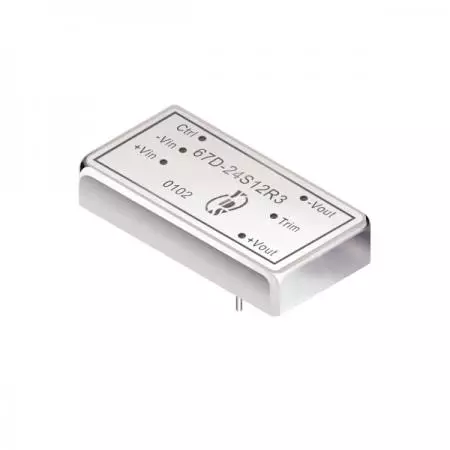

15 Watt DC to DC Power Module | 2" x 1" Size | 86% Efficiency | Single & Dual Output | Short Circuit Protection For Industry and Sensing equipment
Wide input 2:1 voltage range 15 watt DC to DC power converter features 1.5KV isolation voltage. 67D-R3 series has single output and dual output specifications. It is available in DIL package. The operating environment temperature is from -40°C to +85°C. The highest efficiency can reach 86%. This product uses UL94V-0 packaging material. This power converter will test by 100% high temperature pre-burn before shipment.
Our High Efficiency DC-DC series provides the ultimate industrial DC-DC power module for aviation and measurement technology. This Board mount isolated DC-DC converter features a Wide Input DC to DC Converter and Regulated DC-DC Converter design. With an integrated Short Circuit Protection DC-DC Module, our Isolated DC to DC Converter is a Cost-effective DC-DC converter for electronic instruments and sensing devices. We offer OEM/ODM DC-DC Power Module services for wireless networks and telecom/datacom, ensuring RoHS & REACH Compliant Power throughout.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor Load | |
|---|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF Max | |
| 67D-12S03R3 | 9-18 | 70 | 1310 | 3.3 | 4000 | 84 | 1500 |
| 67D-12S05R3 | 9-18 | 70 | 1453 | 5 | 3000 | 86 | 1500 |
| 67D-12S12R3 | 9-18 | 30 | 1453 | 12 | 1250 | 86 | 120 |
| 67D-12S15R3 | 9-18 | 30 | 1453 | 15 | 1000 | 86 | 120 |
| 67D-12D05R3 | 9-18 | 70 | 1488 | ± 5 | ± 1500 | 84 | ± 1000 |
| 67D-12D12R3 | 9-18 | 30 | 1454 | ± 12 | ± 625 | 86 | ± 120 |
| 67D-12D15R3 | 9-18 | 30 | 1454 | ± 15 | ± 500 | 86 | ± 120 |
| 67D-24S03R3 | 18-36 | 70 | 655 | 3.3 | 4000 | 84 | 3300 |
| 67D-24S05R3 | 18-36 | 70 | 727 | 5 | 3000 | 86 | 3300 |
| 67D-24S12R3 | 18-36 | 30 | 727 | 12 | 1250 | 86 | 330 |
| 67D-24S15R3 | 18-36 | 30 | 727 | 15 | 1000 | 86 | 330 |
| 67D-24D05R3 | 18-36 | 70 | 744 | ± 5 | ± 1500 | 84 | ± 2000 |
| 67D-24D12R3 | 18-36 | 30 | 727 | ± 12 | ± 625 | 86 | ± 330 |
| 67D-24D15R3 | 18-36 | 30 | 727 | ± 15 | ± 500 | 86 | ± 330 |
| 67D-48S03R3 | 36-75 | 40 | 327 | 3.3 | 4000 | 84 | 5600 |
| 67D-48S05R3 | 36-75 | 40 | 363 | 5 | 3000 | 86 | 5600 |
| 67D-48S12R3 | 36-75 | 30 | 363 | 12 | 1250 | 86 | 680 |
| 67D-48S15R3 | 36-75 | 30 | 363 | 15 | 1000 | 86 | 680 |
| 67D-48D05R3 | 36-75 | 40 | 372 | ± 5 | ± 1500 | 84 | ± 3300 |
| 67D-48D12R3 | 36-75 | 30 | 368 | ± 12 | ± 625 | 85 | ± 220 |
| 67D-48D15R3 | 36-75 | 30 | 368 | ± 15 | ± 500 | 85 | ± 220 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Pi TYPE |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual (Balance Load) | ± 0.5 ± 1.0 | % | ||
| Cross Regulation | Dual (25% to 100% Load) | ± 5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output >15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 300 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 300 | KHz | |||
| Operating Temperature | With derating | -40 | +85 | °C | |
| Storage Temperature | -55 | +125 | °C | ||
| Temperature Coefficient | 100% Load | ± 0.02 | %/°C | ||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel coated copper with no-conductive base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 2.318x106 | Hours | ||
| Weight | 32.6 | g | |||

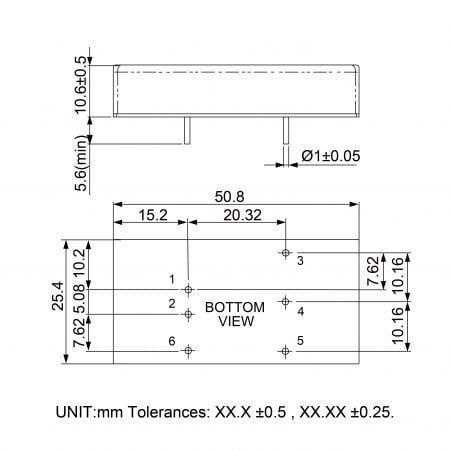

| Dimensions | 50.8 x 25.4 x 10.6 | mm | |||
