12W DC-DC Converter In DIL24 Package With 2:1 Wide Input Range 1500V Isolation And Remote On/Off

5 0 Reviews

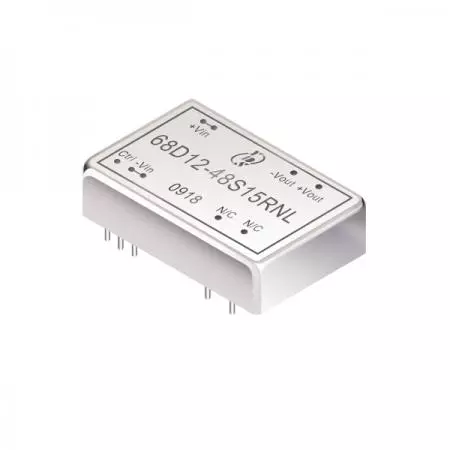

12W DC-DC Converter in DIL24 Package with 2:1 Wide Input Range 1500V Isolation and Remote On/Off

68D12 Series

12 Watt DC to DC Power Module | 1.25"x0.8" Size | 87% Efficiency | Single & Dual Output | Short Circuit Protection For Industry and Telecom/Datacom equipments

12 watt wide input 2:1 voltage range DC to DC power converter with 1.5KV isolation voltage. 68D12 series has single and dual output specifications. This product is designed in DIL24 package. This product uses UL94V-0 packaging material. The operating environment temperature is from -40°C to +81°C. The efficiency can reach up to 87%. This product will test by 100% high temperature pre-burn before shipment.

As a professional DC-DC converter manufacturer DIP module specialist, we offer the High Efficiency 12W DC-DC series to power aviation and measurement technology. This industrial DC-DC power module acts as a reliable DC-DC converter for industrial control and a robust telecom DC-DC converter module for wireless networks. Featuring a Wide Input DC to DC Converter and a built-in Short Circuit Protection DC-DC Module, our Board mount isolated DC-DC converter is a safety isolated DC-DC converter for electronic instruments. We provide OEM/ODM DC-DC Power Module services for sensing devices, ensuring every Isolated DC to DC Converter delivers RoHS & REACH Compliant Power.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

12W 1.5KV Isolation 2:1 DIP DC-DC Converter(68D12 Series)

Features

12W DIL package.
2:1 wide input range.
100% burned in.
High efficiency up to 87%.
Customized solutions available.
Remote control:on/off.
UL94V-0 package material.
Operating temperature from -40°C to +81°C.
3 years warranty.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.
Aviation.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency
Part Number	Vdc	No Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%Typ
68D12-12S03RNL	9-18	40	1146	3.3	3500	84
68D12-12S05RNL	9-18	40	1176	5	2400	85
68D12-12S12RNL	9-18	40	1149	12	1000	87
68D12-12S15RNL	9-18	40	1149	15	800	87
68D12-12D05RNL	9-18	40	1190	± 5	± 1200	84
68D12-12D12RNL	9-18	40	1149	± 12	± 500	87
68D12-12D15RNL	9-18	40	1149	± 15	± 400	87
68D12-24S03RNL	18-36	30	573	3.3	3500	84
68D12-24S05RNL	18-36	30	588	5	2400	85
68D12-24S12RNL	18-36	30	575	12	1000	87
68D12-24S15RNL	18-36	30	575	15	800	87
68D12-24D05RNL	18-36	30	595	± 5	± 1200	84
68D12-24D12RNL	18-36	30	575	± 12	± 500	87
68D12-24D15RNL	18-36	30	575	± 15	± 400	87
68D12-48S03RNL	36-75	30	286	3.3	3500	84
68D12-48S05RNL	36-75	30	294	5	2400	85
68D12-48S12RNL	36-75	30	287	12	1000	87
68D12-48S15RNL	36-75	30	287	15	800	87
68D12-48D05RNL	36-75	30	298	± 5	± 1200	84
68D12-48D12RNL	36-75	30	287	± 12	± 500	87
68D12-48D15RNL	36-75	30	287	± 15	± 400	87

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	PI Network

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)		± 2	%
Short Circuit Protection	Hiccup, automatic Recovery
Line Regulation			± 0.5	%
Load Regulation	Single Dual(Balance Load)		± 0.5 ± 0.5	%
Cross Regulation	Dual (25% To 100% Load)		± 5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz		100	mVp-p
Ripple & Noise	Output > 15V TYPES BW=DC To 20MHz		1% of Vout	mVp-p
Transient response setting time	25% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage			1500		Vdc
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			400		KHz
Operating Temperature	With derating	-40		+81	°C
Storage Temperature		-55		+125	°C
Temperature Coefficient	100% Load			±0.03	%/°C
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel Coated Copper With Non-Conductive Base
MTBF	MIL-HDBK-217F@25℃	900000			Hours
Weight		17.5			g
Dimensions		31.60 x 20.10 x 10.00			mm
