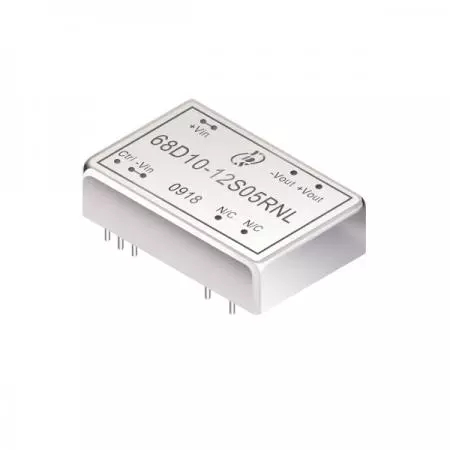

10W DC-DC Converter In DIL24 Package With 2:1 Wide Input Range 1500V Isolation And Remote On/Off

5 0 Reviews

10W DC-DC Converter in DIL24 Package with 2:1 Wide Input Range 1500V Isolation and Remote On/Off

68D10 Series

10 Watt DC to DC Power Module | 1.25"x0.8" Size | 87% Efficiency | Single & Dual Output | Short Circuit Protection For Industry and Instrument equipments

10 watt DC to DC power converter with 1.5KV isolation and 24 pin DIL package. This power converter has wide input 2:1 voltage range and single/dual output specifications. This product uses UL94V-0 packaging material. The operating environment temperature is from -40°C to +84°C. The efficiency can reach 87%. This product will test by 100% high temperature pre-burn before shipment.

Our High Efficiency 10W DC-DC solution delivers a robust industrial DC-DC power module specifically engineered for aviation and measurement technology. Designed as a Board mount isolated DC-DC converter, this DIL DC-DC Converter features a Wide Input DC to DC Converter range and a precise Regulated DC-DC Converter for electronic instruments. With an integrated Short Circuit Protection DC-DC Module, our Compact DC-DC converter serves as a Cost-effective DC to DC converter for wireless networks and sensing devices. We provide professional OEM/ODM DC-DC Power Module services for telecom/datacom, ensuring every Isolated DC to DC Converter delivers RoHS & REACH Compliant Power.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

10W 1.5KV Isolation 2:1 DIP DC-DC Converter(68D10 Series)

Features

10W DIL package.
2:1 wide input range.
100% burned in.
High efficiency up to 87%.
Customized solutions available.
Remote control:on/off.
UL94V-0 package material.
Operating temperature: from -40°C to +84°C.
3 years warranty.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.
Aviation.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency
Part Number	Vdc	No Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%Typ
68D10-12S03RNL	9-18	50	971	3.3	3000	85
68D10-12S05RNL	9-18	50	980	5	2000	85
68D10-12S12RNL	9-18	30	957	12	833	87
68D10-12S15RNL	9-18	30	963	15	665	87
68D10-12D05RNL	9-18	30	992	± 5	± 1000	84
68D10-12D12RNL	9-18	30	966	± 12	± 420	87
68D10-12D15RNL	9-18	30	977	± 15	± 335	87
68D10-24S03RNL	18-36	40	485	3.3	3000	85
68D10-24S05RNL	18-36	40	490	5	2000	85
68D10-24S12RNL	18-36	30	479	12	833	87
68D10-24S15RNL	18-36	30	481	15	665	87
68D10-24D05RNL	18-36	30	496	± 5	± 1000	84
68D10-24D12RNL	18-36	30	479	± 12	± 420	87
68D10-24D15RNL	18-36	30	483	± 15	± 335	87
68D10-48S03RNL	36-75	30	243	3.3	3000	85
68D10-48S05RNL	36-75	30	245	5	2000	85
68D10-48S12RNL	36-75	20	239	12	833	87
68D10-48S15RNL	36-75	20	241	15	665	87
68D10-48D05RNL	36-75	20	248	± 5	± 1000	84
68D10-48D12RNL	36-75	20	241	± 12	± 420	87
68D10-48D15RNL	36-75	20	244	± 15	± 335	87

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	PI Network

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)		± 2	%
Short Circuit Protection	Hiccup, automatic Recovery
Line Regulation			± 0.5	%
Load Regulation	Single Dual(Balance Load)		± 0.5 ± 0.5	%
Cross Regulation	Dual (25% To 100% Load)		± 5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz		100	mVp-p
Ripple & Noise	Output > 15V TYPES BW=DC To 20MHz		1% of Vout	mVp-p
Transient response setting time	25% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage			1500		Vdc
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			400		KHz
Operating Temperature	With derating	-40		+84	°C
Storage Temperature		-55		+125	°C
Temperature Coefficient	100% Load			± 0.03	%/°C
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel Coated Copper With Non-Conductive Base
MTBF	MIL-HDBK-217F@25℃	900000			Hours
Weight		17.5			g
Dimensions		31.60 x 20.10 x 10.00			mm
