3W DC-DC Converter In DIL24 Package With 2:1 Wide Input Range 1500V Isolation And 80% Efficiency

5 0 Reviews

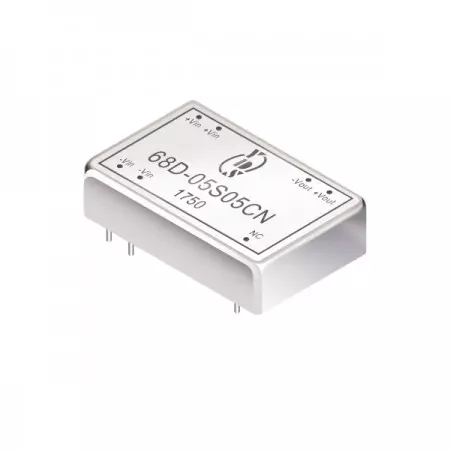

3W DC-DC Converter in DIL24 Package with 2:1 Wide Input Range 1500V Isolation and 80% Efficiency

68D Series

3 Watt DC to DC Power Module | 1.25" x 0.8" Size | Single & Dual Output | 1.5KV Isolated | Short Circuit Protection For Industry and Sensing equipment

3 watt 1.5KV isolation DC to DC power converter has a wide input 2:1 voltage range. 68D series is available in a 24 pin DIL package. It has single output and dual output specifications. The efficiency is up to 80%. The operating ambient temperature is from -40°C to +85°C.

As a specialist in power solutions, we offer the DIL DC-DC Converter within our industrial DC-DC power module lineup, specifically designed for aviation and measurement technology. This Board mount isolated DC-DC converter provides a Wide Input DC to DC Converter range and a precise Regulated DC to DC Converter to support electronic instruments. Featuring a built-in Short Circuit Protection DC-DC Module, our Compact DC-DC converter is a Cost-effective DC to DC converter for sensing devices. We also provide OEM/ODM DC-DC Power Module services for wireless networks and telecom/datacom, ensuring every Isolated DC to DC Converter delivers RoHS & REACH Compliant Power.

The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

3W 1.5KV Isolation 2:1 DIP DC-DC Converter(68D Series)

Features

2:1 wide input voltage.
3 watt 24PIN DIL package.
Efficiency To 80%.
1500Vdc isolation.
MTBF:>1,500,000 hrs.
Operating temperature:-40°C to +85°C.

Applications

Industry equipment.
Sensing equipment.
Instruments.
Wireless Network.
Telecom/Datacom.
Measurement.
Aviation.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
Part Number	Vdc	Vdc	mA	%Typ
68D-05S05CN	4.5-9	5	600	75
68D-05S12CN	4.5-9	12	250	80
68D-05S15CN	4.5-9	15	200	80
68D-12S05CN	9-18	5	600	75
68D-12S12CN	9-18	12	250	80
68D-12S15CN	9-18	15	200	80
68D-12D05CN	9-18	± 5	± 300	75
68D-12D12CN	9-18	± 12	± 125	75
68D-12D15CN	9-18	± 15	± 100	75
68D-24S05CN	18-36	5	600	75
68D-24S12CN	18-36	12	250	80
68D-24S15CN	18-36	15	200	80
68D-24D05CN	18-36	± 5	± 300	75
68D-24D12CN	18-36	± 12	± 125	80
68D-24D15CN	18-36	± 15	± 100	80
68D-48S05CN	36-72	5	600	75
68D-48S12CN	36-72	12	250	80
68D-48S15CN	36-72	15	200	80
68D-48D05CN	36-72	± 5	± 300	75
68D-48D12CN	36-72	± 12	± 125	80
68D-48D15CN	36-72	± 15	± 100	80

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Typ	Max	Units
Voltage Tolerance			± 2	%
Short Circuit Protection	Continuous
Line Regulation			± 0.5	%
Load Regulation	Single		± 0.5	%
Load Regulation	Dual		± 2.0	%
Ripple & Noise	BW=DC To 20MHz		100	mVp-p
Transient response setting time	50% load step change	350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			200		KHz
Operating Temperature		-40		+85	°C
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	Nickel Coated Copper With Non-Conductive Base
Weight		16.2			g

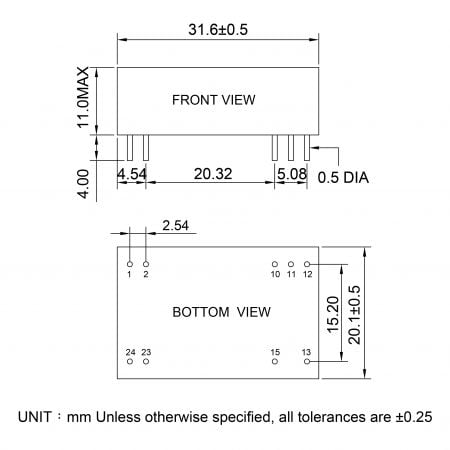

Dimensions		31.60 x 20.10 x 11.0			mm
