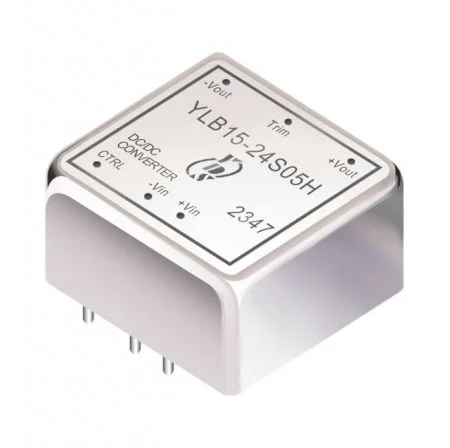

DC-DC Converter, 1'' x 1'' size, 4:1 Wide Range Input, 6PIN DIL Package, Single & Dual Regulated Output For Industry and Sensing equipments
15 watt Wide Input Voltage Range 9~36Vdc and 18~75Vdc, Single and Dual output DC to DC power converter. YLB15-H series has a 3KV isolation voltage, and wide input 4:1 voltage range. The efficiency is up to 91%. Products with over power and short circuit protection. This product uses UL94V-0 packaging material. The operating environment temperature ranges is from -40°C to +86°C(without derating). This product will test by 100% high temperature pre-burn before shipment.
Our safety isolated DC-DC converter expertise delivers a High efficiency isolated DC to DC Converter and Board mount non-isolated DC-DC converter for diverse electronic instruments. Featuring reinforced isolation dc-dc converter technology and an Overload protection DC-DC module, we ensure a Reliable DC-DC power solution. As a provider of OEM/ODM DC-DC Power Module services, we offer Custom DC-DC converter design and Switching regulator options, all guaranteed as a RoHS & REACH Compliant DC-DC Converter.
The DC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Input Voltage Range | Input Current | Output Voltage | Output Current | Efficiency | Maximum capacitor Load | |
|---|---|---|---|---|---|---|---|
| Vdc | No-Load mA (typ) | Full-Load mA (typ) | Vdc | mA (typ) | % (typ) | µF | |
| YLB15-24S05H | 9-36 | 8 | 695 | 5 | 3000 | 90 | 3600 |
| YLB15-24S12H | 9-36 | 8 | 695 | 12 | 1250 | 90 | 600 |
| YLB15-24S15H | 9-36 | 8 | 695 | 15 | 1000 | 90 | 500 |
| YLB15-24S24H | 9-36 | 8 | 687 | 24 | 625 | 91 | 200 |
| YLB15-24D12H | 9-36 | 8 | 695 | ±12 | ±625 | 90 | ±360 |
| YLB15-24D15H | 9-36 | 8 | 703 | ±15 | ±500 | 89 | ±250 |
| YLB15-48S05H | 18-75 | 8 | 344 | 5 | 3000 | 91 | 3600 |
| YLB15-48S12H | 18-75 | 8 | 344 | 12 | 1250 | 91 | 600 |
| YLB15-48S15H | 18-75 | 8 | 344 | 15 | 1000 | 91 | 500 |
| YLB15-48S24H | 18-75 | 8 | 344 | 24 | 625 | 91 | 200 |
| YLB15-48D12H | 18-75 | 8 | 348 | ±12 | ±625 | 90 | ±360 |
| YLB15-48D15H | 18-75 | 8 | 348 | ±15 | ±500 | 90 | ±250 |
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Input Voltage | 24V Models | 9 | 36 | Vdc | ||
| 48V Models | 18 | 75 | ||||
| Input Surge Voltage (100 ms max.) | 24V Models | -0.7 | 50 | Vdc | ||
| 48V Models | -0.7 | 100 | ||||
| Start-up Voltage | 24V Models | 9 | Vdc | |||
| 48V Models | 18 | |||||
| Under Voltage Shutdown | 24V Models | 7.5 | Vdc | |||
| 48V Models | 15.5 | |||||
| Start-up Time | Constant Resistive Load, Nominal Vin | Power-up | 35 | ms | ||
| Remote ON/OFF | 35 | |||||
| Input Filter | All Models | Internal Pi type | ||||
| Remote ON/OFF (Ctrl PIN Refer To -Vin PIN) | Positive Logic | DC/DC ON | Open or 3.5 Vdc - 12 Vdc | |||
| DC/DC OFF | Short or 0 Vdc - 1.2 Vdc | |||||
| Input Current of Ctrl PIN | -0.5 | 0.5 | mA | |||
| Remote Off Input Current | 3.5 | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Voltage Tolerance | 100% Load | -2 | +2 | % | ||
| Line Regulation | Vin(min) to Vin(max) @100% Load | -0.5 | +0.5 | % | ||
| Load Regulation | 0% Load to 100% Load | -0.5 | +0.5 | % | ||
| Load Cross Regulation | Asymmetrical Load 25% / 100% Load | Dual Output | -5.0 | +5.0 | % | |
| Ripple & Noise (BW=20MHz) | With a 0.1uF/50V MLCC | 15Vout & 24Vout | 150 | mVp-p | ||
| Other Outputs | 100 | |||||
| Transient Response Setting Time | 25% Load Step Change | 300 | 500 | uS | ||
| Transient Response Deviation | 25% Load Step Change | -5 | ±3 | +5 | % | |
| Temperature Coefficient | -0.02 | +0.02 | %/°C | |||
| Output Power Protection | % of Io, Hiccup mode, Auto-recovery | 120 | 150 | 190 | % | |
| Short Circuit Protection | Continuous [Hiccup Mode], Auto-Recovery | |||||
| Over Voltage Protection | 5Vout | 6.2 | Vdc | |||
| 12Vout | 15 | |||||
| 15Vout | 18 | |||||
| 24Vout | 30 | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Isolation Voltage | Input to Output (60sec) | 3000 | Vdc | |||
| Input (Output) to Case (60sec) | 1500 | Vdc | ||||
| Isolation Resistance | 500Vdc | 1000 | MΩ | |||
| Isolation Capacitance | 100kHz, 1V | 2200 | pF | |||
| Switching Frequency | 100% Load, Nominal Input | 200 | 235 | 270 | KHz | |
| Operating Ambient Temperature (Power Derating See Derating Graph) | Nominal Vin, 100% Load | YLB15-24S24H, YLB15-48S05H, YLB15-48S12H, YLB15-48S15H, YLB15-48S24H | -40 | 86.3 | ℃ | |
| YLB15-24S05H, YLB15-24S12H, YLB15-24S15H, YLB15-24D12H, YLB15-48D12H, YLB15-48D15H | 84 | |||||
| YLB15-24D15H | 81.6 | |||||
| Thermal Impedance | 20LFM | 12.6 | ℃/W | |||
| 100LFM | 10.8 | |||||
| 200LFM | 9 | |||||
| 400LFM | 7.2 | |||||
| Maximum Case Temperature | 105 | ℃ | ||||
| Storage Temperature | -55 | 125 | ℃ | |||
| Humidity | Non Condensing | 5 | 95 | % | ||
| Cooling | Natural Convection | |||||
| Case Material | Copper | |||||
| Potting Material | Silicone (UL94-V0) | |||||
| MTBF | MIL-HDBK-217F@25℃ (calculated) | 1.39X106 | Hours | |||
| Weight | 18 | g | ||||

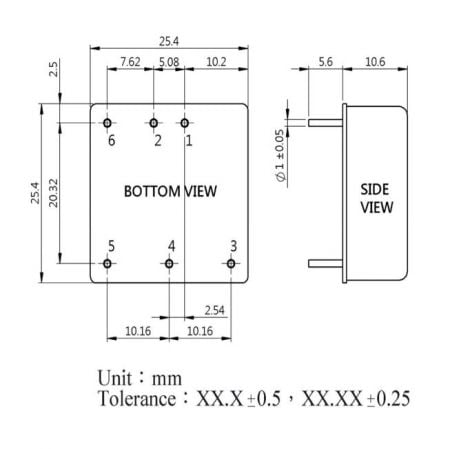

| Dimensions | 25.4 x 25.4 x 10.6 | mm | ||||
