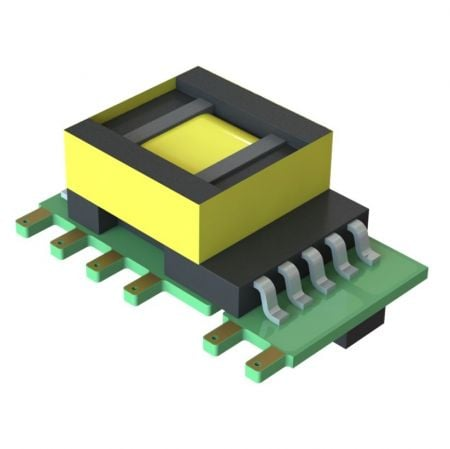

Ultra Compact Size, SIP and SMD Package AC-DC Power Module For EV Charging Station Controllers and Energy Storage System BMS
This 5-watt single-output AC-DC power converter offers 3.6KVac/5KVdc isolation voltage and features ultra-wide input ranges of 85305VAC and 70430VDC. It includes built-in short-circuit and overload protection, with efficiency reaching up to 81%. Designed for reliable performance, this AC-DC power converter is ideal for applications requiring compact, open-frame solutions.
This Industrial grade 5W AC-DC power supply is a wide range AC input power module designed as a space saving AC-DC converter. This SIP type AC-DC converter module acts as a Small footprint AC-DC converter ideal for computer equipment and electronic instruments. Featuring reinforced insulation AC-DC converter technology and high dielectric strength power module, this high insulation AC-DC module ensures safety in AC main power systems, industrial control, and fire protection systems. It is a Global safety certified AC-DC converter, PCB mount AC-DC converter 5W, and IEC 62368-1 power module, fully EN55032 EN55035 power module and RoHS/REACH compliant power supply.
Yuan Dean's AC-DC power converter products are RoHS-compliant, customizable, and backed by a 2-year warranty. OEM/ODM requirements are welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Wattage | Output Voltage | Output Current | Efficiency | Max. Capacitive Load |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (TYP %) | (μF) | |
| GS5H1-S03(F) | 3.3 | 3.3 | 1000 | 69 | 2200 |
| GS5H1-S05(F) | 5 | 5 | 1000 | 76 | 1500 |
| GS5H1-S09(F) | 5 | 9 | 560 | 77 | 680 |
| GS5H1-S12(F) | 5 | 12 | 420 | 79 | 470 |
| GS5H1-S15(F) | 5 | 15 | 340 | 79 | 330 |
| GS5H1-S24(F) | 5 | 24 | 210 | 81 | 100 |
Note:

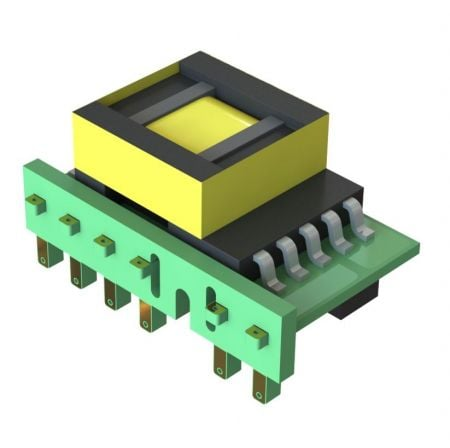

aadd suffix“F”for 90°bending Products. For example: GS5H1-S05F
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 277 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 85 | 305 | Vac | |
| DC in | 70 | 430 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 63 | Hz | ||
| Input Current | Io nom | Vi: 115VAC | 0.20 | A | ||
| Vi: 230VAC | 0.10 | A | ||||
| Inrush Current | Io nom | Vi: 115VAC | 20 | A | ||
| Vi: 230VAC | 40 | A | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Output Voltage Accuracy | 3.3V, 10%~100% load | ± 8 | % | ||
| 5~24V, 10%~100% load | ± 5 | % | |||
| Minimum Load | 10 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 1.5 | % | ||
| Load Regulation | 10%~100% Load | ± 3.0 | % | ||
| No Load | 0.10 | 0.15 | W | ||
| Ripple & Noise | Vi nom, Io nom, BW=20MHz | 80 | 150 | mVp-p | |
| Protection | Over Load | Above 110% rated output power | |||
| Protection type: Recovers automatically after fault condition is removed | |||||
| Short circuit | Recovers automatically after fault condition is removed | ||||
Note:The product is able to work with 0% - 10% load and with stable output.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3.6KVac / 5mA / 5Secs | Vac | ||
| 5KVdc / 5mA / 5Secs | Vdc | ||||
| Operating Temperature | Refer to Temperature Derating Graph | -40 | +85 | °C | |
| Storage Temperature | Non Operational | -40 | +105 | °C | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | UL 62368-1, IEC62368-1 approved | ||||
| EMI Conduction & Radiation | EN55032,CLASS B(See Fig. 2 for recommended circuit) | ||||
| EMS Immunity | EN55035 (See Fig. 2 for recommended circuit) | ||||

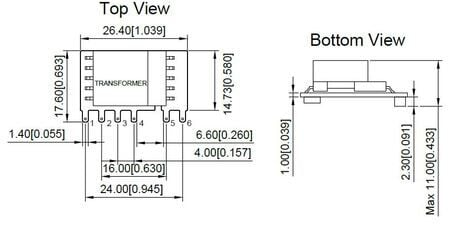

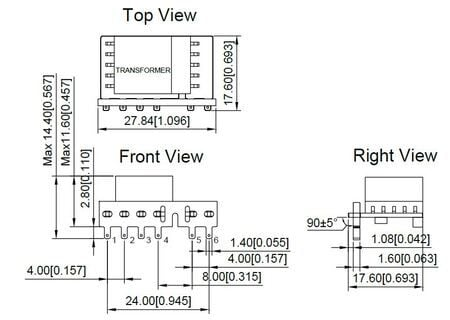

| Dimension | L26.4 x W14.73 x H11.0 / L27.84 x W11.60 x H17.60 mm | ||||
| Cooling | Free air convection | ||||
