Open Frame AC-DC Power Module, 5W Single Regulated Output Power, 3KVac Isolation, SIP14 Package

5 0 Reviews

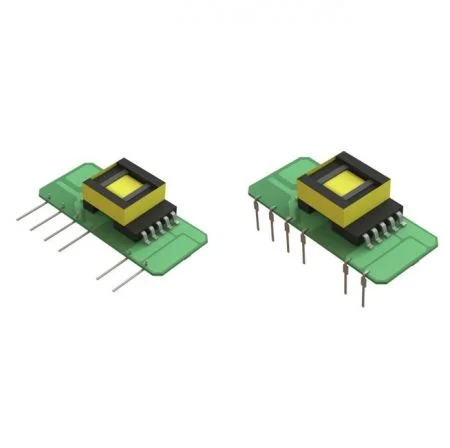

Open Frame AC-DC Power Module, 5W Single Regulated Output Power, 3KVac Isolation, SIP14 Package

GS5 Series

Ultra Compact Size, SIP Package AC-DC Power Module For Cellular IoT Gateways and Security Cameras & Alarms

5 watt single output open frame AC to DC power converter with universal input voltage 85~305VAC and 3KVac isolation voltage. GS5 series has short-circuit and overload protection. It is packed in a compact size. The efficiency can reach up to 81%.

Our wide range AC input power module and ultra compact 5W power supply feature a high dielectric strength power module for fire systems. This reinforced insulation AC-DC converter acts as a safety isolation AC-DC power supply and space saving AC-DC converter. Certified as an EN55032 EN55035 power module and IEC 62368-1 power module, this SIP AC-DC power module and board mount AC-DC power supply SIP is a reliable high insulation AC-DC module and RoHS/REACH compliant power supply.

The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 2 years after sale.

Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!

Quantity:



Inquire Add to Basket

Product Description1

5W 3KVac Isolation AC-DC Converter (Open Frame)(GS5 Series)

Features

Universal input 85~305VAC.
High efficiency up to 81%.
Protection: short circuit/over load.
Ultra small size.
2 years warranty.
ROHS compliant.

Applications

Cellular IoT Gateways.
Multi-Channel Smart Relays.
Small Motorized Devices.
Smart Biometric Access Control.
Networked Surveillance Cameras.
Voice-Enabled Smart Displays.

Specifications typical at TA = 25°C, nominal input voltage and rated output current unless otherwise specified

Part Number	Output Wattage	Output Voltage	Output Current	Efficiency	Max. Capacitive Load
Part Number	(W)	(VDC)	(mA)	(TYP %)	(μF)
GS5-S03(F)	3.3	3.3	1000	69	2200
GS5-S05(F)	5	5	1000	76	1500
GS5-S09(F)	5	9	560	77	680
GS5-S12(F)	5	12	420	79	470
GS5-S15(F)	5	15	340	79	330
GS5-S24(F)	5	24	210	81	100

Note:

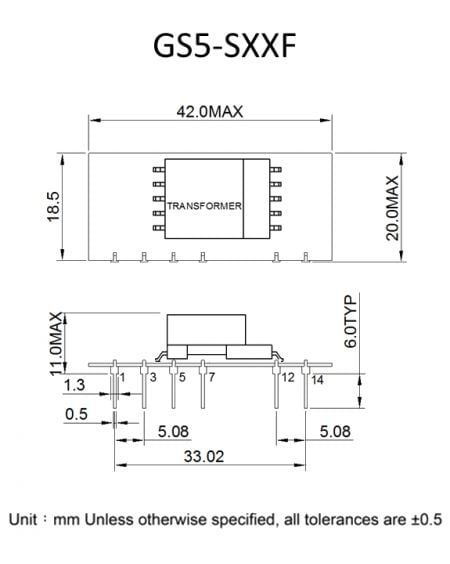

add suffix“F”for 90°bending Products. For example:GS5-S05F,GS5-S12F

Input Specifications

Parameters	Conditions		Min	Typ	Max	Units
Rated Input Voltage	Vo, Io nom			100 ~ 277		Vac
Voltage Range	Vo, Io nom	AC in	85		305	Vac
Voltage Range	Vo, Io nom	DC in	100		430	Vdc
Line Frequency	Vi nom, Io nom		47		63	Hz
Input Current	Io nom	Vi: 115VAC			0.20	A
Input Current	Io nom	Vi: 230VAC			0.10	A
Inrush Current	Io nom	Vi: 115VAC		13		A
Inrush Current	Io nom	Vi: 230VAC		23		A

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Output Voltage Accuracy	3.3V		± 8		%
Output Voltage Accuracy	5~24V		± 5		%
Line Regulation	Io nom, Vi min…Vi max		± 1.5		%
Load Regulation	10%~100% Load		± 2.5		%
No Load			0.10	0.15	W
Ripple & Noise	Vi nom, Io nom, BW=20MHz		80	150	mVp-p
Protection	Over Load	Above 110% rated output power
	Over Load	Protection type: Recovers automatically after fault condition is removed
	Short circuit	Recovers automatically after fault condition is removed

Note: The product is able to work with 0% - 10% load and with stable output.

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Switching Frequency	Vi nom, Io nom		60		KHz
Isolation Voltage	Input / Output	3KVac / 5mA / 5Secs
Isolation Resistance	Input / Output, @500 Vdc	100			MΩ
Operating Temperature	Refer to Temperature Derating Graph	-20		+70	°C
Storage Temperature	Non Operational	-40		+105	°C
Relative Humidity	Vi nom, Io nom			85	% RH
Safety Standards	UL 62368-1, IEC62368-1 approved
EMI Conduction & Radiation	EN55022,CLASS B(See Fig. 1 for recommended circuit)
EMS Immunity	EN61000 (See Fig. 1 for recommended circuit)

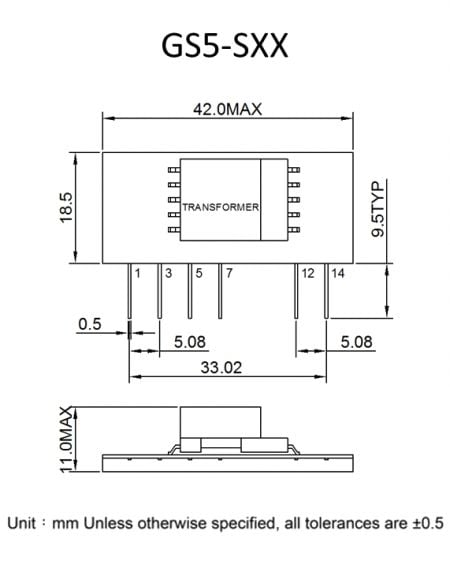

Dimension	L42.0 x W13.65 x H20.0 mm
Cooling	Free air convection
