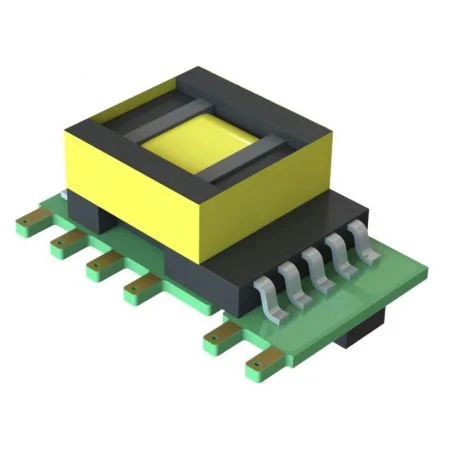

Ultra Compact Size, SIP and SMD Package AC-DC Power Module For PSmart Grid Sensing Nodes and Solar Inverter Monitoring
3 watt single output AC to DC power converter with 3.6KVac/5KVdc isolation voltage. Ultra-wide 85~305VAC and 70~430VDC input voltage. This product has short-circuit and overload protection. The efficiency can reach up to 80%.
Designed for fire systems and computer equipment, our universal input AC-DC power supply features a high dielectric strength power module and reinforced insulation AC-DC converter for maximum safety. This ultra compact 3W power supply and low profile AC-DC power supply serve as a premier space saving AC-DC converter for electronic instruments. As a certified EN55032 EN55035 power module and IEC 62368-1 power module, our high isolation power supply module integrates easily as a PCB mount AC-DC converter. Each SIP AC-DC power module is a guaranteed RoHS/REACH compliant power supply.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 2 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Wattage | Output Voltage | Output Current | Efficiency | Max. Capacitive Load |
|---|---|---|---|---|---|
| (W) | (VDC) | (mA) | (TYP %) | (μF) | |
| GS3H1-S03(F) | 1.98 | 3.3 | 600 | 67 | 820 |
| GS3H1-S05(F) | 3 | 5 | 600 | 72 | 680 |
| GS3H1-S09(F) | 3 | 9 | 333 | 76 | 470 |
| GS3H1-S12(F) | 3 | 12 | 250 | 77 | 470 |
| GS3H1-S15(F) | 3 | 15 | 200 | 78 | 330 |
| GS3H1-S24(F) | 3 | 24 | 125 | 80 | 200 |
Note:

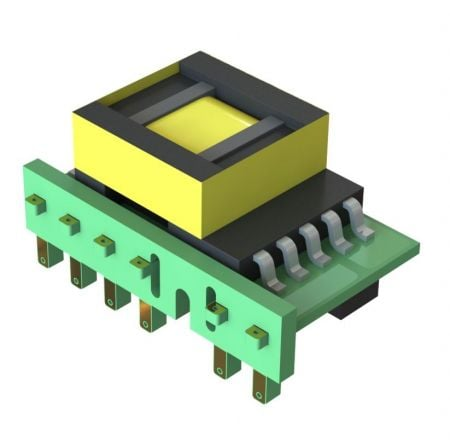

aadd suffix“F”for 90°bending Products. For example: GS3H1-S05F
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Rated Input Voltage | Vo, Io nom | 100 ~ 277 | Vac | |||
| Voltage Range | Vo, Io nom | AC in | 85 | 305 | Vac | |
| DC in | 70 | 430 | Vdc | |||
| Line Frequency | Vi nom, Io nom | 47 | 63 | Hz | ||
| Input Current | Io nom | Vi: 115VAC | 0.12 | A | ||
| Vi: 230VAC | 0.06 | A | ||||
| Inrush Current | Io nom | Vi: 115VAC | 13 | A | ||
| Vi: 230VAC | 23 | A | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Output Voltage Accuracy | 3.3V, 10%~100% load | ± 8 | % | ||
| 5~24V, 10%~100% load | ± 5 | % | |||
| Minimum Load | 10 | % | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 1.5 | % | ||
| Load Regulation | 10%~100% Load | ± 3.0 | % | ||
| No Load | 0.10 | 0.15 | W | ||
| Ripple & Noise | Vi nom, Io nom, BW=20MHz | 80 | 150 | mVp-p | |
| Protection | Over Load | Above 110% rated output power | |||
| Protection type: Recovers automatically after fault condition is removed | |||||
| Short circuit | Recovers automatically after fault condition is removed | ||||
Note:The product is able to work with 0% - 10% load and with stable output.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Switching Frequency | Vi nom, Io nom | 65 | KHz | ||
| Isolation Voltage | Input / Output | 3.6KVac / 5mA / 5Secs | Vac | ||
| 5KVdc / 5mA / 5Secs | Vdc | ||||
| Operating Temperature | Refer to Temperature Derating Graph | -40 | +85 | °C | |
| Storage Temperature | Non Operational | -40 | +105 | °C | |
| Relative Humidity | Vi nom, Io nom | 95 | % RH | ||
| Safety Standards | UL 62368-1, IEC62368-1 approved | ||||
| EMI Conduction & Radiation | EN55032,CLASS B(See Fig. 2 for recommended circuit) | ||||
| EMS Immunity | EN55035 (See Fig. 2 for recommended circuit) | ||||

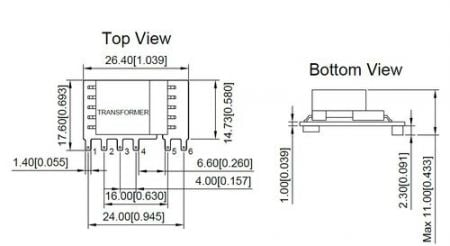

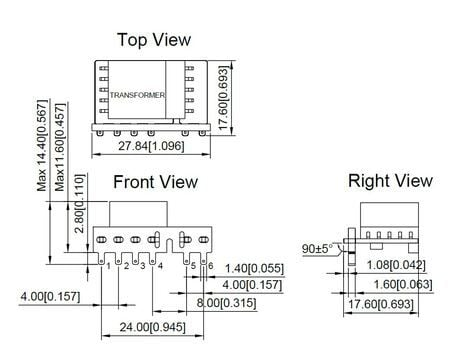

| Dimension | L26.4 x W14.73 x H11.0 / L27.84 x W11.60 x H17.60 mm | ||||
| Cooling | Free air convection | ||||
