Plug-in and Screw screw terminals AC-DC Power For AC Main power supply system and Industrial Control

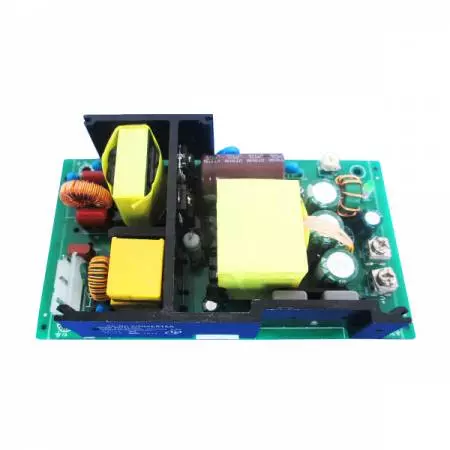

150 watt single output open frame AC to DC power converter. GB150 series features an universal input voltage of 90~264VAC and 3KVac isolation voltage. It has short circuit, overload, over voltage and over temperature protection. This product has a built-in active PFC function. The highest efficiency Up to 92% (Typical) and no-load power consumption <0.5W. It has a 5" x 3" miniature size.
Our global input AC-DC power supply delivers a high power density 150W power module for computer equipment and industrial controls. This high efficiency 150W open frame PSU features low standby power 150W AC-DC supply and industrial isolation AC-DC PSU performance. Designed for enclosure integration and chassis mount, this high power open frame AC-DC supply uses a screw terminal type and AC-DC power supply with terminal block for secure connections. It is the perfect power solution for fire security systems, AC mains systems, and electronic instruments.
The AC-DC power converter products of Yuan Dean are RoHS-compliant, and can be customized for products. The products are guaranteed for 3 years after sale.
Any OEM/ ODM requirement is welcome. We look forward to cooperating with you!
| Quantity: | |
|---|---|
| Part Number | Output Voltage | Output Current | Ripple & Noise | Efficiency | Output Power(W) |
|---|---|---|---|---|---|
| V | MAX | mVp-p(Max) (note) | %(TYP) | Rated | |
| GB150-S12 | 12 | 10.5A | 200 | 90 | 126 |
| GB150-S15 | 15 | 9A | 200 | 90 | 135 |
| GB150-S24 | 24 | 6.25A | 250 | 90 | 150 |
| GB150-S36 | 36 | 4.17A | 350 | 91 | 150 |
| GB150-S48 | 48 | 3.125A | 450 | 92 | 150 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Rated Input Voltage | Io nom | 100 ~ 240 | Vac | ||
| Voltage Range | Io nom | 90 | 264 | Vac | |
| Io nom | 127 | 370 | Vdc | ||
| Frequency | 47 | 50/60 | 63 | Hz | |
| Inrush Current | At 115Vac | 40 | A | ||
| At 230Vac | 70 | A | |||
| Input Over-Current Protection | VDE/UL/CCC FUSE 3.15A/250V | ||||
| Power Factor | PF> 0.95 / 230Vac PF> 0.98 / 115Vac at full load | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Output Voltage Accuracy | Vi nom, Io nom | ± 2 | % | ||
| Minimum Load | Vi nom | 0 | |||
| Line Regulation | Io nom, Vi min…Vi max | ± 0.5 | % | ||
| Load Regulation | Vi nom, Io min…Io nom | ±1.0 | % | ||
| Protection | Over Load | 105% -150% rated output power | |||
| Protection type: Shut off o/p voltage, re-power on to recover | |||||
| Over Voltage | 115%-150% rated output Voltage | ||||
| Protection type: Shut off o/p voltage, re-power on to recover | |||||
| Short circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||
| Over temperature | Protection type: Shut off o/p voltage, re-power on to recover | ||||
Note:
Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor across each output by full load.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| MTBF | MIL-HDBK-217F(25℃) | 100,000 | Hrs | ||
| Isolation Voltage | Input To Output | 3000V AC 5mA/5Secs | |||
| Input To Ground | 2000V AC 5mA/5Secs | ||||
| Output To Ground | 500V AC 5mA/5Secs | ||||

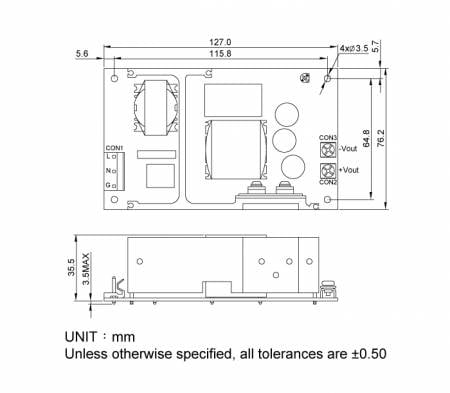

| Size | 127x76.2x35.5 | mm | |||
| Weight | 345 | g | |||
| Operating Temperature | With Derating | -20 | +70 | °C | |
| Storage Temperature | -45 | +85 | °C | ||
